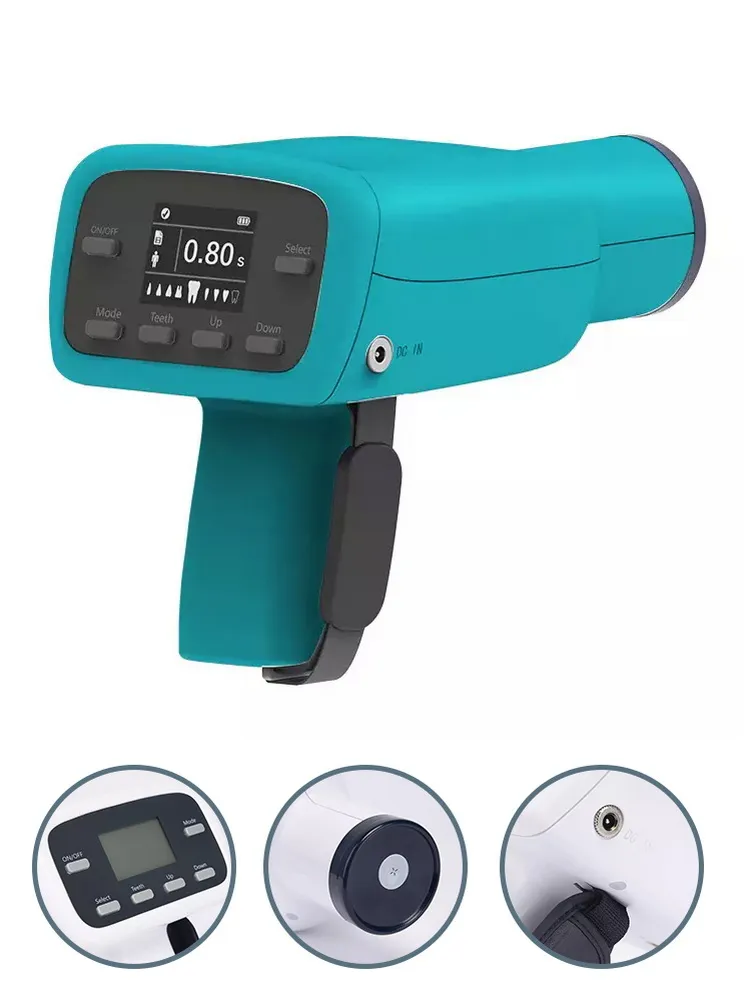

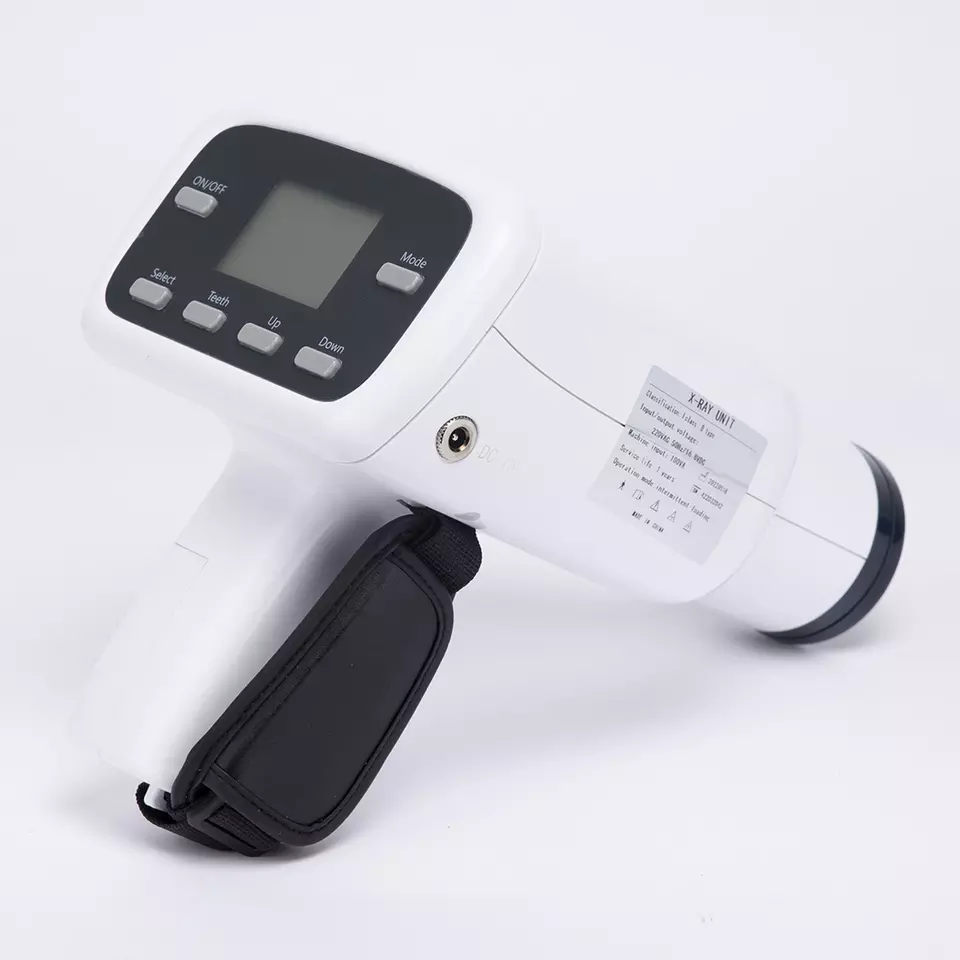

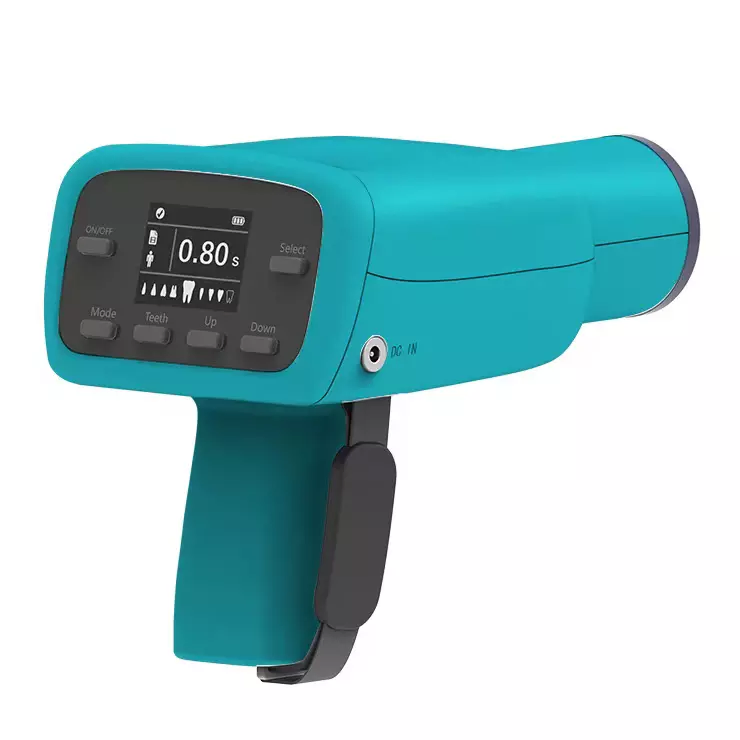

Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit

1 / 5

Am-8p Digital Dental Xray Machine Portable Portable Vet Veterinary Dental Unit

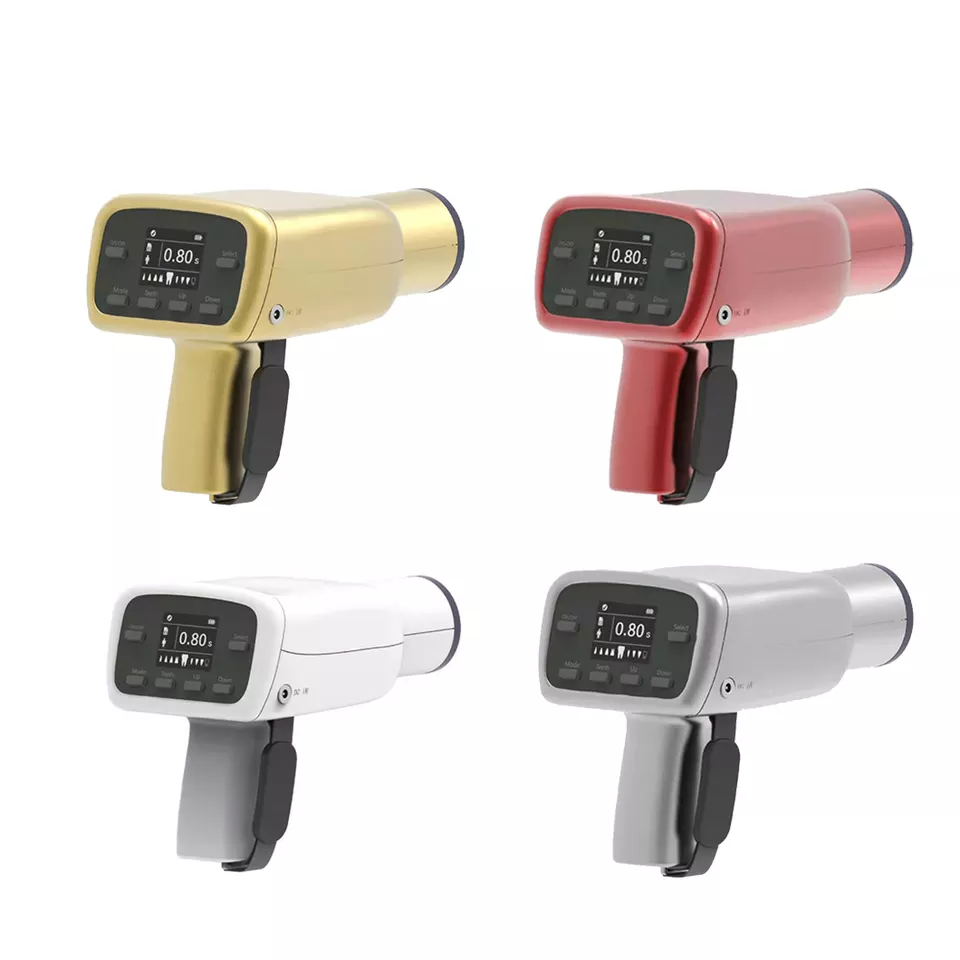

Customization:	Available
Applicable Departments:	Oral Rehabilitation Department
Certification:	ISO, CE

Send Inquiry

Product Description

Basic Info

Model NO.

AM-8P

Type

Dental Unit

Material

Acrylic

Usage

Dentist Working Partner

Warranty

1 Year

Power Source

Machinery

Quality Cert.

Power Supply

220V+10% 50Hz

Frequency

30kHz

Power

60W

Product Display

Technical Specifications

Name	Portable X Ray Unit
Tube Voltage	65KV
Tube Current	0.2MA
Exposure Time	0.1-1.8s adjustable
Radiation Leakage	<20μgy/h
Focus-skin Distance	>20cm
Output	DC24V 8000mAh
Weight	2.5kg
Tube Frequency	30KHz
Focus	Toshiba 0.3mm x 0.3mm

Key Features

High-frequency 30 KHz tube voltage and 0.2 MA current for precise imaging.
Equipped with Toshiba 0.3mm x 0.3mm micro-focus tube for high contrast.
No protective operation room required for installation.
Flexible adjustment of handpiece position and angle for versatile use.
Compact volume and light weight (2.5kg) for easy portability.
Excellent radiation-shield protection ensures safety for both dentist and patient.
Non-film inspection and storage compatibility with digital sensors.

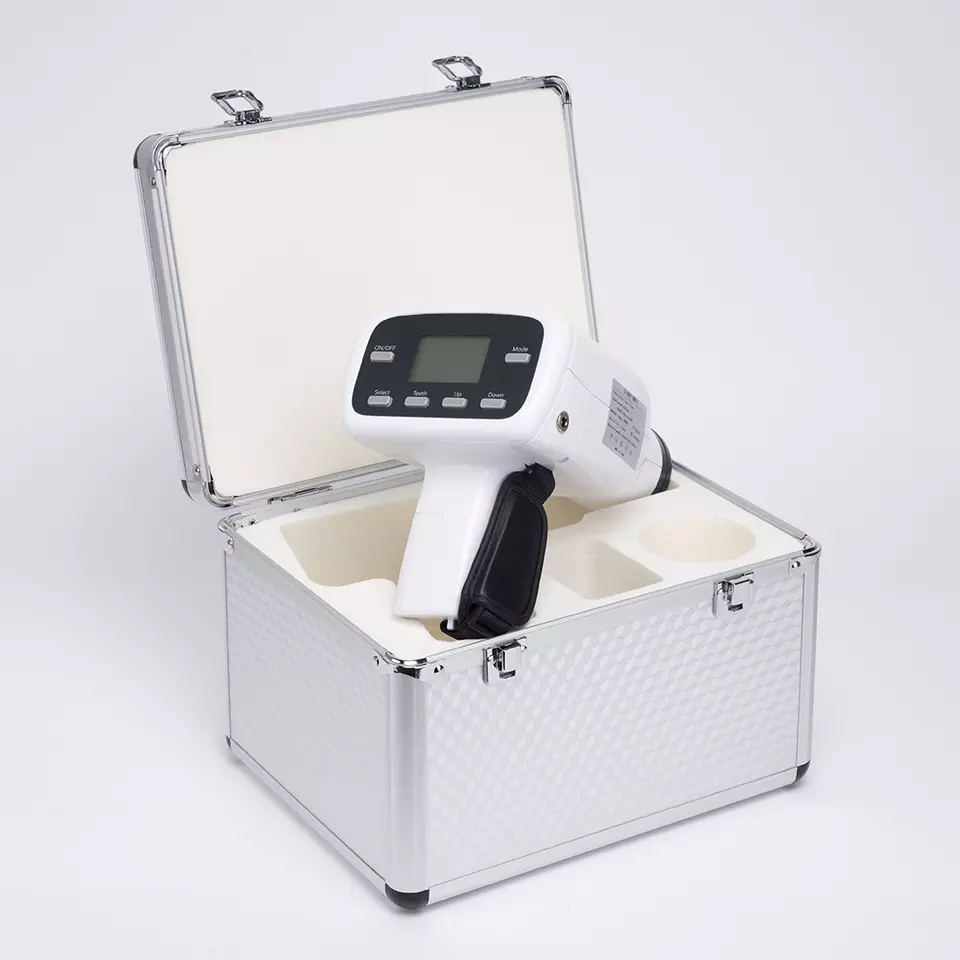

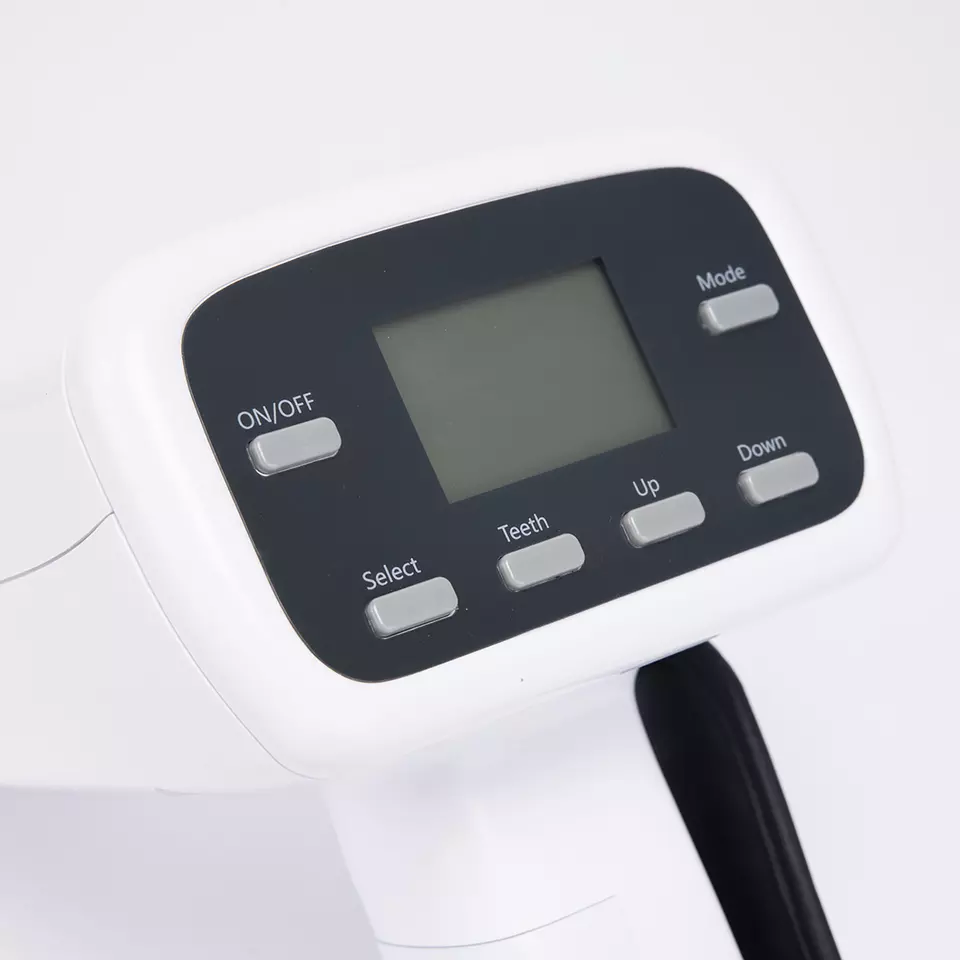

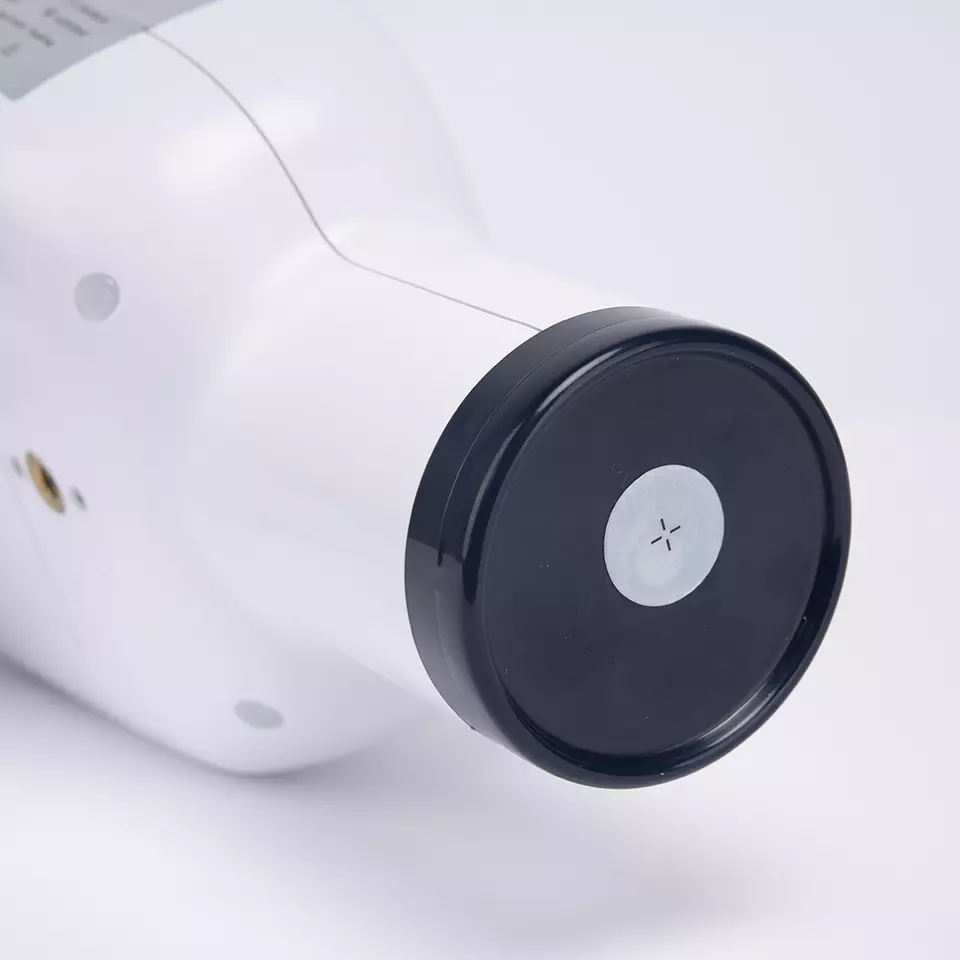

Detailed View

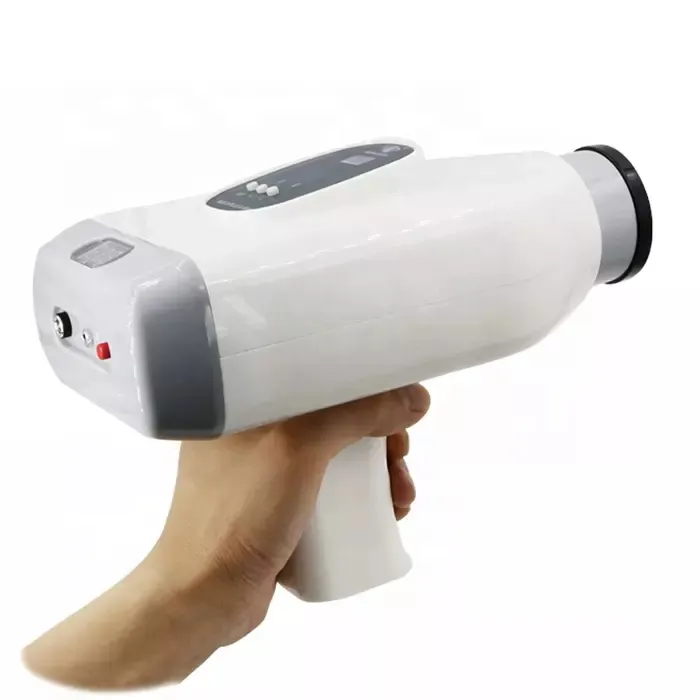

Application

Why Choose Us

Frequently Asked Questions

What is the main advantage of the AM-8P X-ray unit?

The AM-8P is highly portable (weighing only 2.5kg) and uses a Toshiba micro-focus tube which provides high-contrast images with zero radial index safety ratings.

Do I need a lead-lined room to use this portable X-ray?

No, because of its excellent radiation shielding and focused 24-degree radiation scope, a special protective operation room is not required for installation.

Is the exposure time adjustable?

Yes, the exposure time is continuously adjustable from 0.1 to 1.8 seconds to suit different diagnostic needs.

Can this unit be used with digital sensors?

Absolutely. Non-film inspection and digital storage can be achieved when paired with a compatible dental sensor.

What kind of power supply does it require?

It operates on a standard 220V±10% 50Hz power supply and has a DC24V 8000mAh output.

What is the focal spot size of the tube?

The unit utilizes a high-quality Toshiba tube with a 0.3mm x 0.3mm micro-focus for superior clarity.
