Children's Pediatric Dental Unit Chair with Safe Self Disinfection

i

Basic Specifications

Model NO.

ADS-D5

Application

Adult, Child

Style

Multifunctional, Luxury

Power Source

Electricity

Type

Dental Chair

Warranty

1 Years

Size

Standard Size

Color

Colorful

Usage

Dental Clinic, Dental Operation

Package

Wooden Case

Holes

2/4 Holes

Power

220V/50Hz

Water Pressure

0.20-0.40MPa

Air Pressure

0.55MPa~0.8MPa

Quality

Best Quality

Specification

130*100*110cm

Origin

China

HS Code

9018491000

★

Product Description

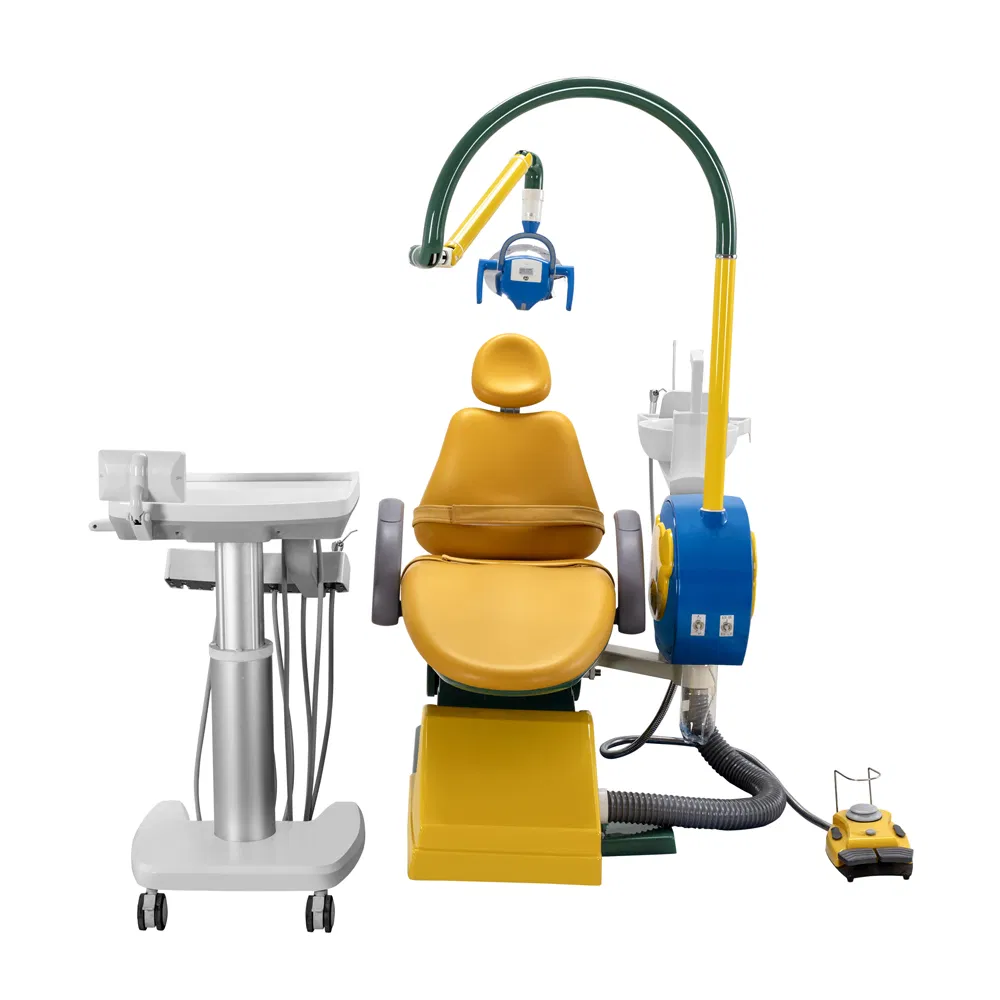

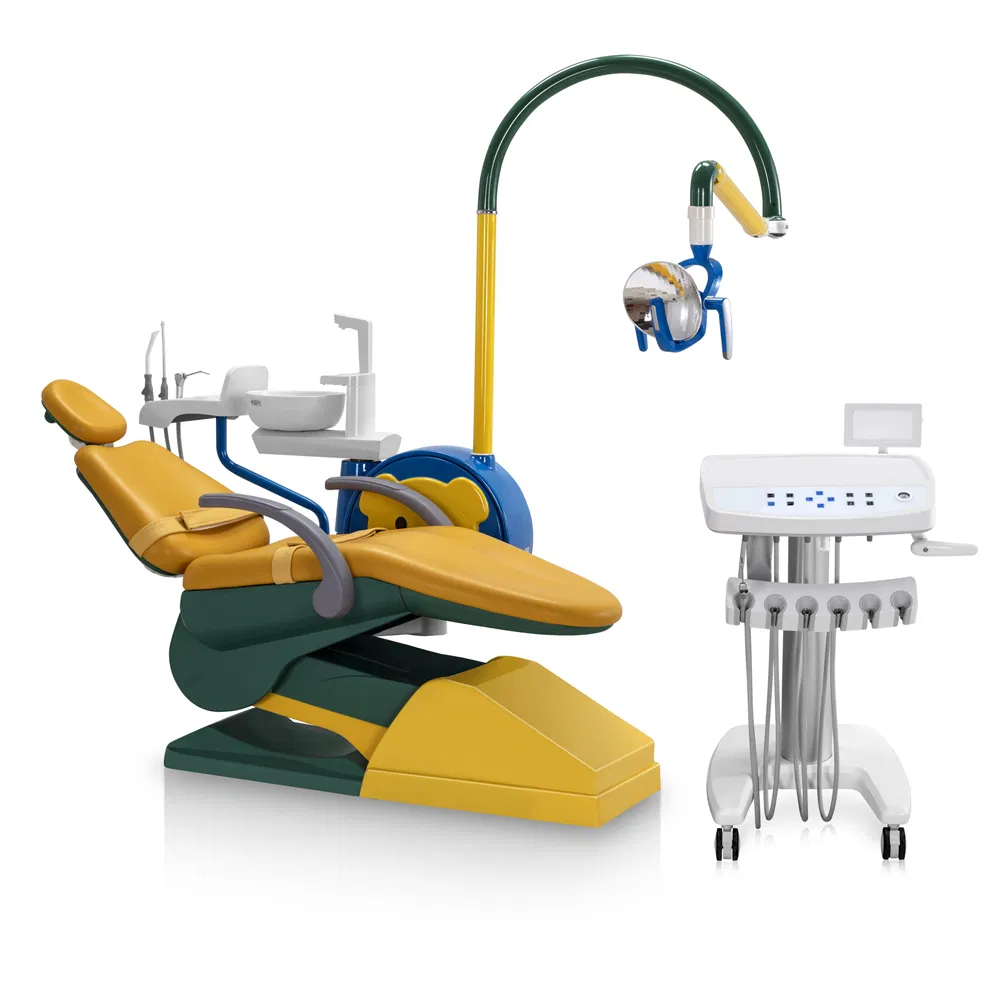

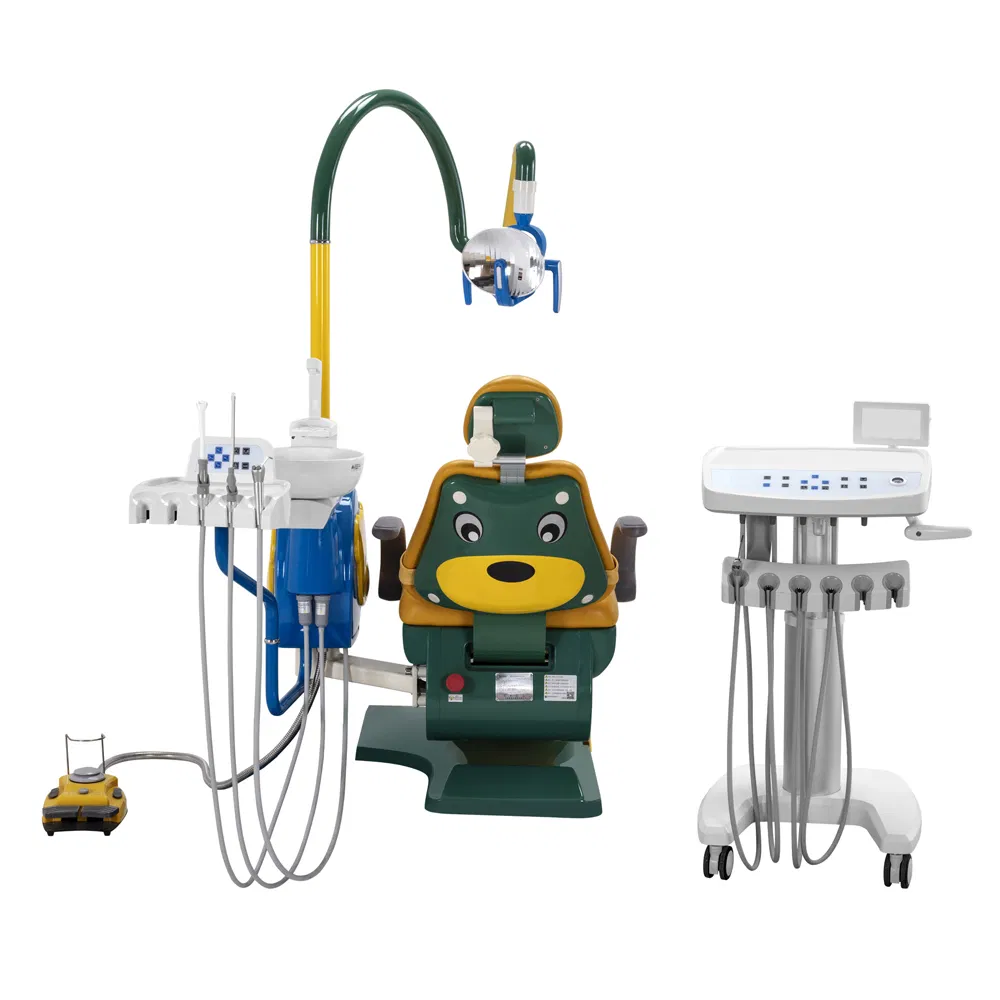

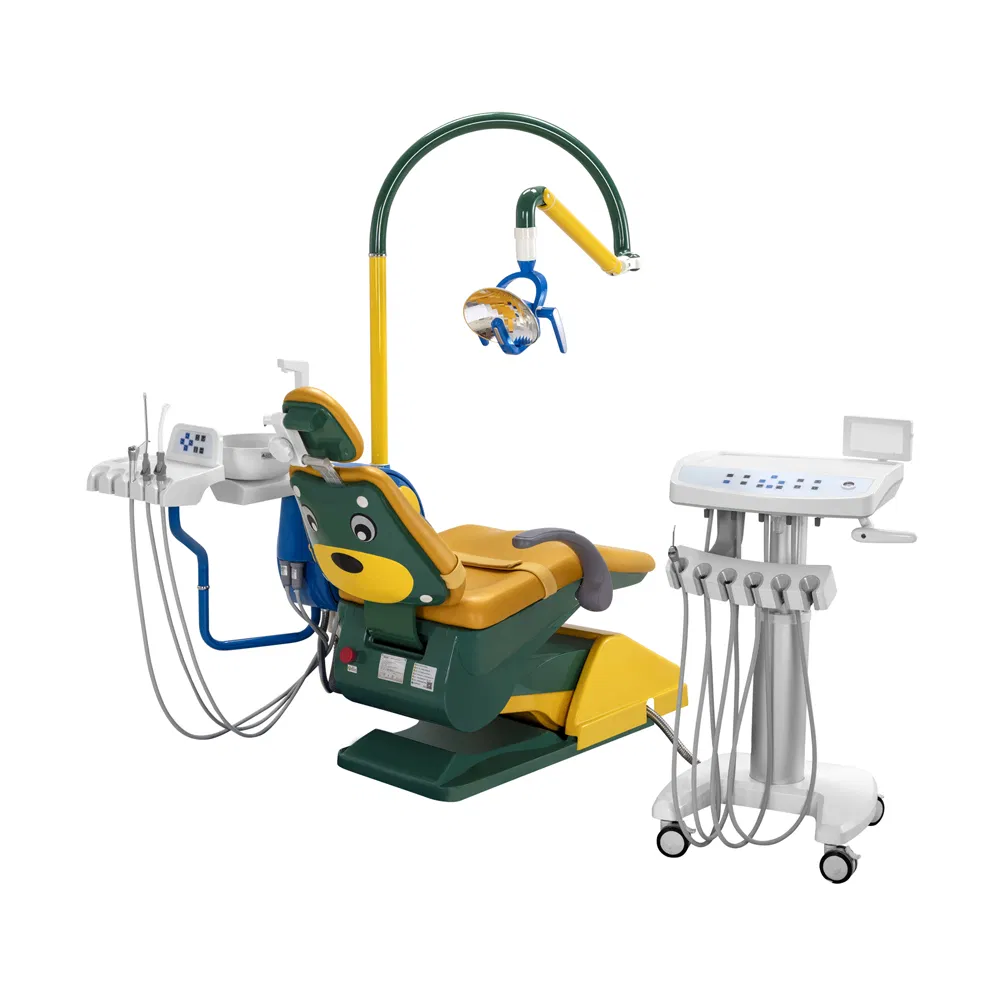

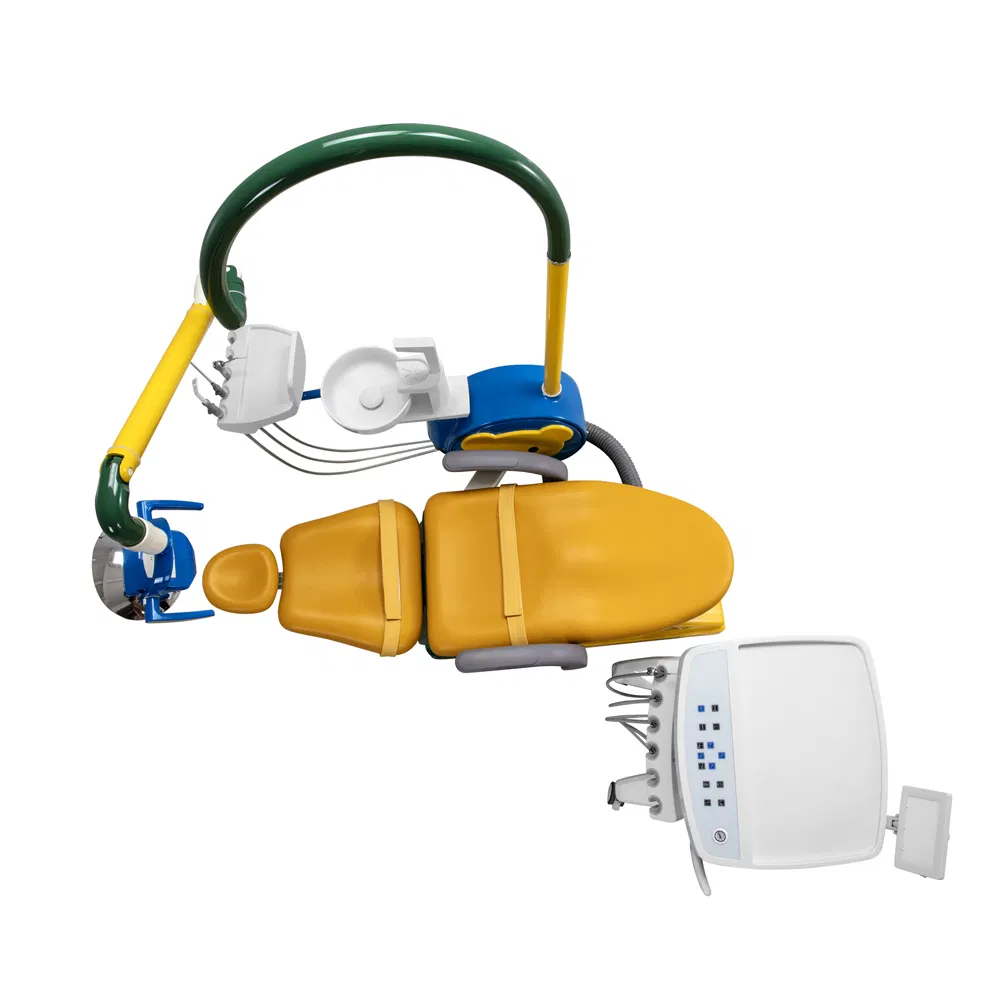

Attractive Cute Good Looking Colorful Dental Chair For Kids

✔

Features & Advantages

Up and down movement trolley for convenient operations
Infrared sensing water supply
Built out lovely floor box
Emergency stop switch
Belt designing for safe operation
Luxury stool with adjustable height

📋

Standard Configurations

No.	Description	Quantity
1	24v silence electric Timotion DC motor	1 set
2	3-way syringe (cold/hot)	2 pcs
3	Water heating system	1 set

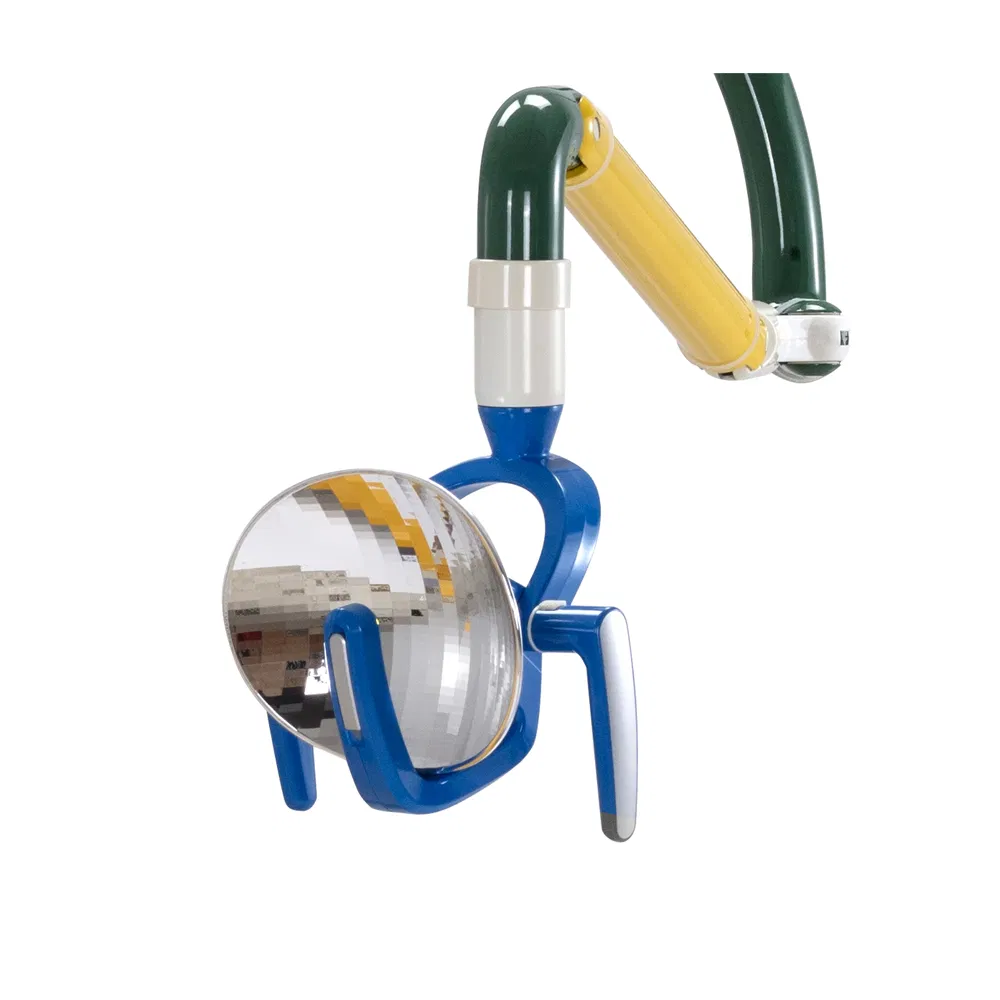

4	Inductive & manual Luxury LED lamp	1 pc
5	Saliva ejector (strong and weak)	1 set
6	LED film viewer	1 set
7	Purified water storage system	1 set
8	Luxury movement trolley	1 set

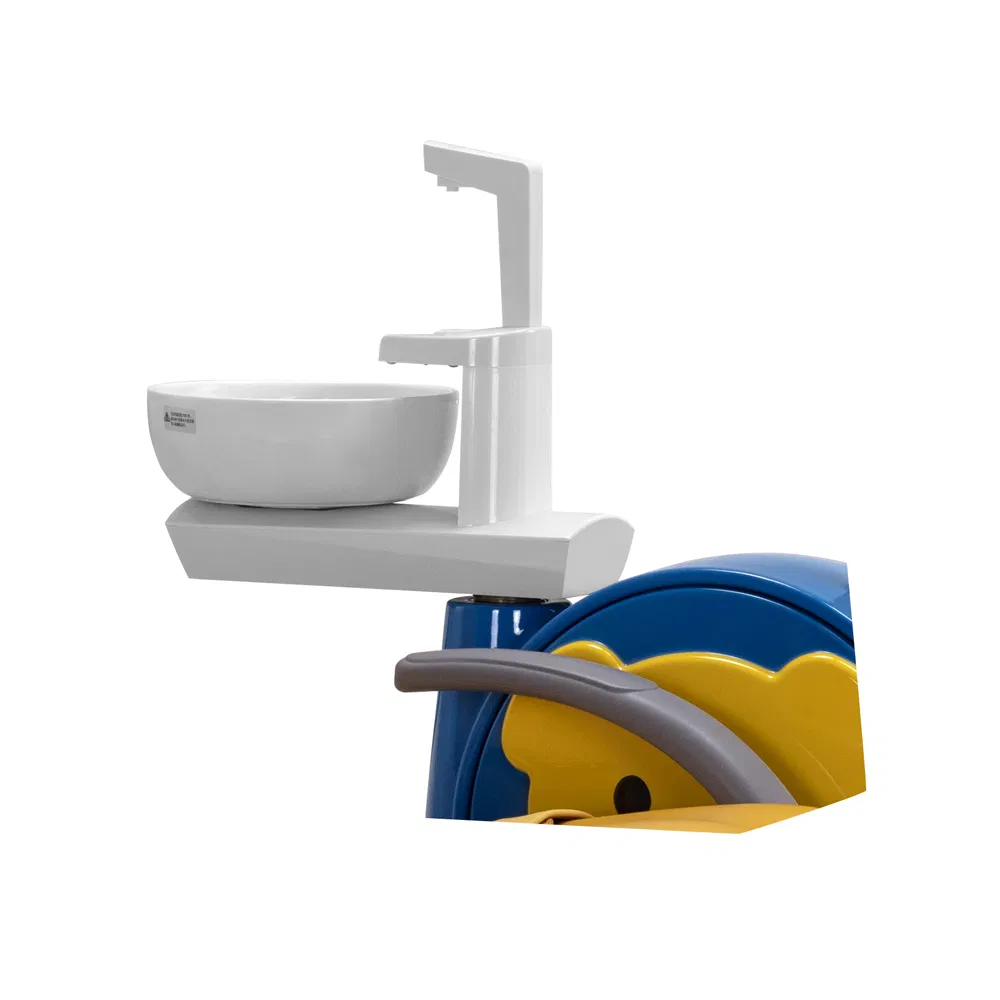

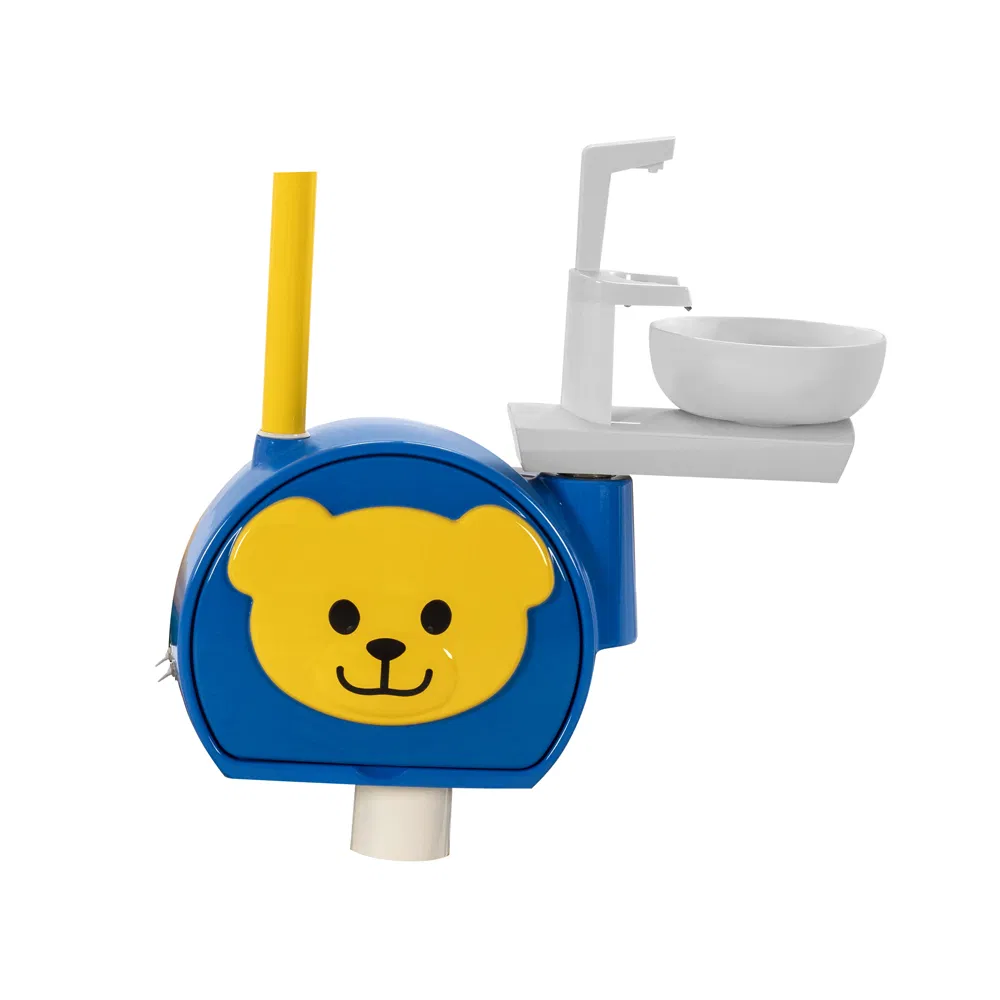

9	Rotary ceramic spittoon (sensor)	1 set
10	Double armrest	1 set
11	Emergency stop switch	1 set
12	PU cushion	1 set
13	Six in one foot pedal	1 set
14	Silent Castor Luxury Dentist stool	1 set
15	Painting steel base	1 set
16	Imported water & air tubes	1 set
17	Italy solenoid valve (ODE)	1 set

⚙

Technical Parameters

Environment temperature: 5°C to 40°C

Related humidity: ≤ 80%

Power supply: ~110-220V ± 10%; 50Hz ± 10%

Air pressure: 400-600kPa

Water pressure: 200-400kPa

Bearing capacity: ≤ 135 KG

＋

Options

Imported 2/4-hole high speed handpiece
Imported 2/4-hole low speed handpiece
Ultrasonic scaler
Intra Oral Camera with monitor
Built in/built-out LED Curing light
Oil-free air compressor

?

Frequently Asked Questions

Q1: Is this dental chair suitable for both adults and children? Yes, the ADS-D5 model is designed for both adult and pediatric applications, making it a versatile choice for multifunctional clinics.

Q2: What is the maximum weight capacity of the chair? The chair has a maximum bearing capacity of ≤ 135 KG.

Q3: What kind of power supply does the unit require? It supports a standard power supply of 110-220V ± 10% at 50Hz ± 10%.

Q4: Does the chair come with a warranty? Yes, the product comes with a 1-year warranty for your peace of mind.

Q5: What are the shipping dimensions and weight? The packing size is 130*100*110cm with a Gross Weight (G.W) of 200kgs and a Net Weight (N.W) of 150kgs, shipped in a secure wooden case.

Q6: Can I customize the handpieces and other accessories? Absolutely. We offer various options including imported or local high/low speed handpieces, ultrasonic scalers, and intra-oral cameras.
