High Frequency Dental X Ray Unit Portable Dental X Ray

Customization:	Available
Applicable Departments:	Oral Surgery
Certification:	ISO, CE

Send Inquiry

Product Description

📋 Basic Information

Model

YJ-DXP06

Type

X-Ray Equipment

Material

PVC

Product Name

Dental X Ray Machine

Application

Dental Inspection

Tube Voltage

70kv

Frequency

50-60Hz

Focus

0.4mm

Exposure Time

0.04s-2.0s

Weight

1.9 Kg (Net) / 4 Kg (Gross)

🔍 Product Description

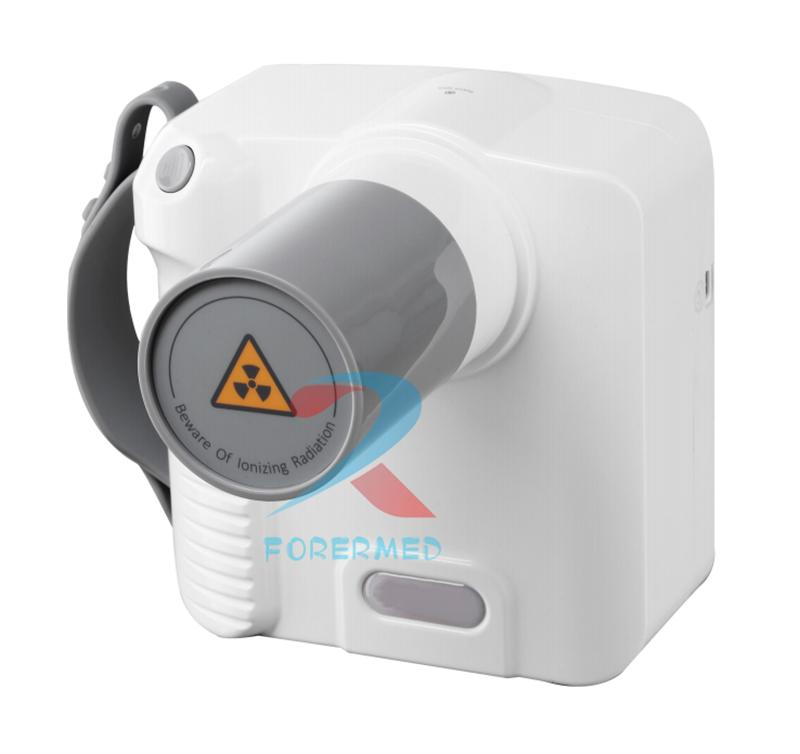

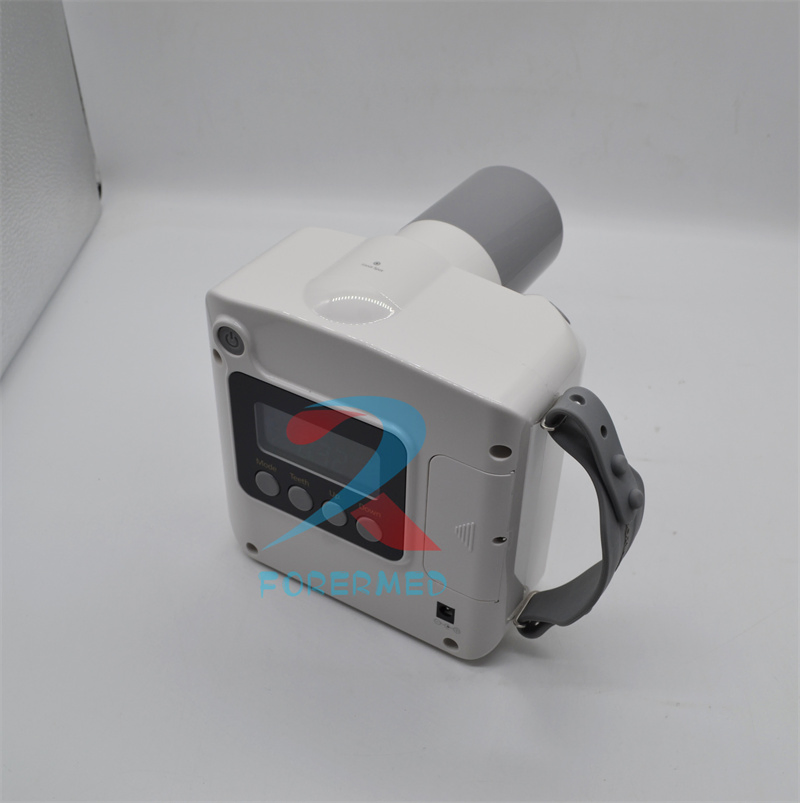

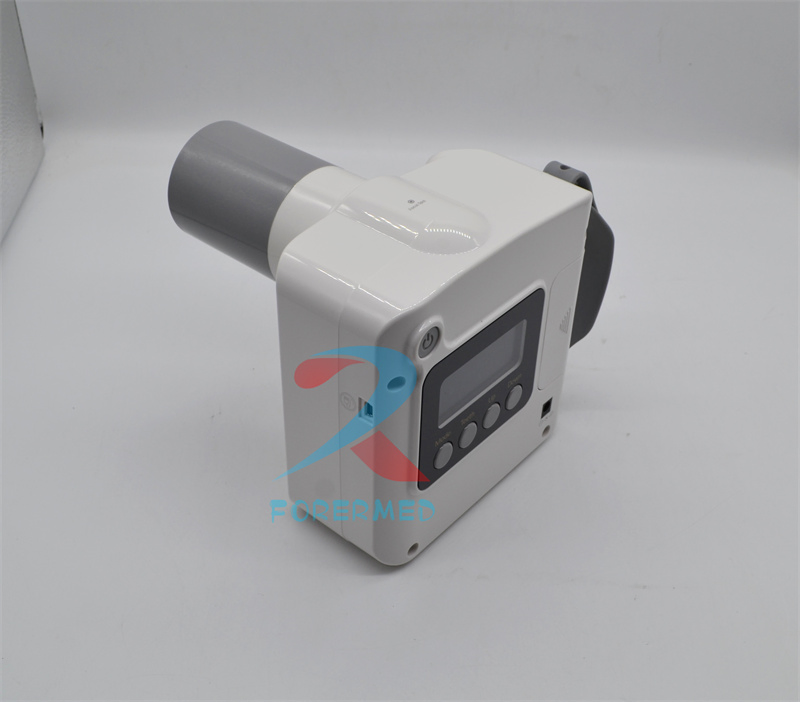

YJ-DXP06 Portable Dental X Ray

Technical Specifications

Tube Head	KL11
Tube voltage	70KV ± 10%
Tube Current	2mA ± 20%
Charge input Voltage	100V-240V
Frequency	50-60HZ
Anode Angle	12.5°
Focus	0.4mm
Exposure time range	0.04s-2.0s
Leak Emissivity	1meter ≤ 0.25mGy/h
Relative Humidity	30%RH-75%RH
Net Weight	1.9Kgs

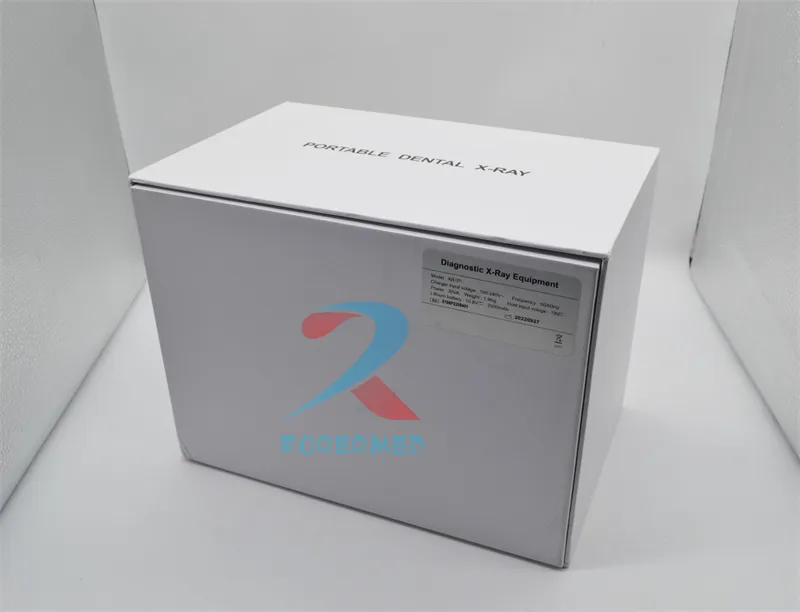

Packing Size	340250255mm

Key Features

CE certificated for safety and quality assurance.
70Kv 2mA ensures short exposure time and sharp imaging.
High-capacity imported lithium battery (up to 500 shots per charge).
Double closed-loop system for stable voltage and filming quality.
Precise 0.4mm focus for high-definition dental inspection.

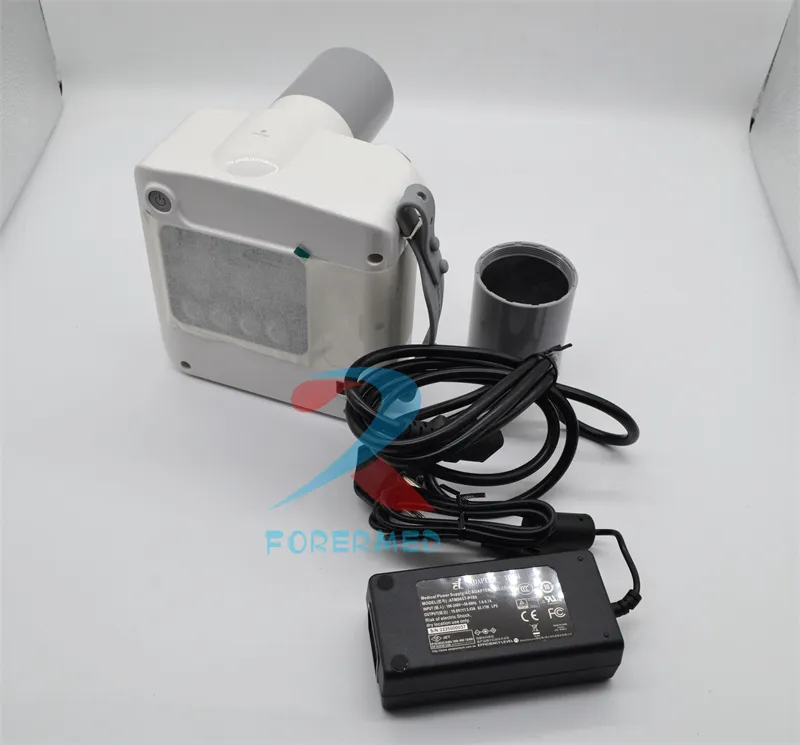

Medical grade power adapter with safety guarantee.

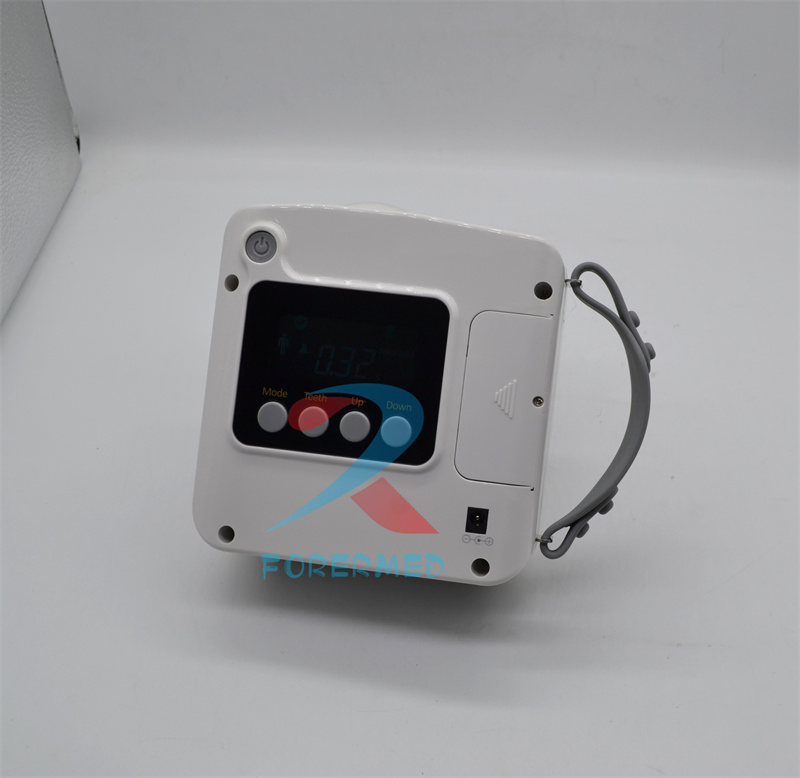

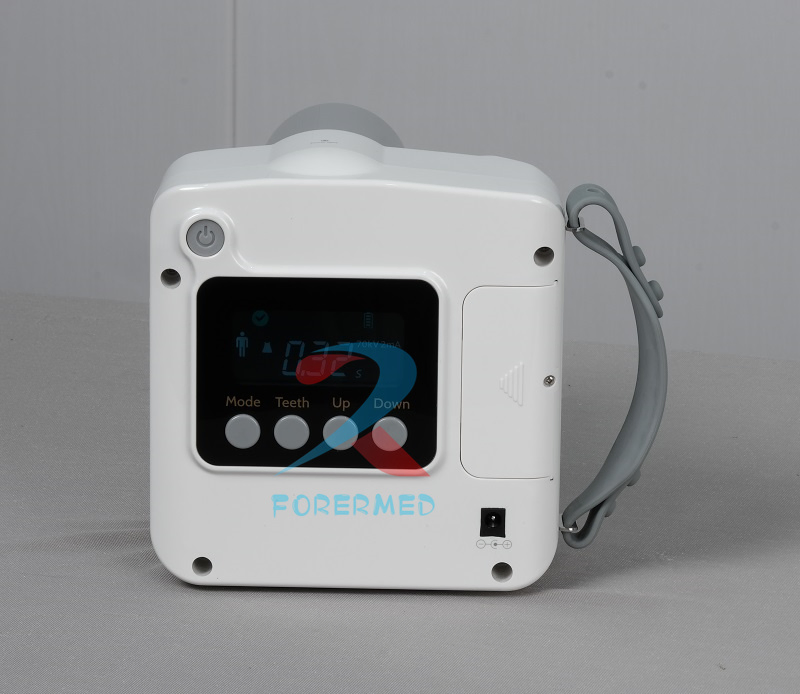

Large display and ergonomic keys for easy operation.
Lightweight design (1.9Kgs) for single-handed held operation.
Safety lock key function to prevent accidental exposure.
Power saving mode: auto screen-off after 30 mins of inactivity.
Intelligent stoppage detection and optional scatter shield.
Optional remote control and mobile stand compatibility.

🖼️ Visual Gallery

❓ Frequently Asked Questions

How many shots can the battery handle on a full charge?

The imported high-capacity lithium battery allows for approximately 500 shots after a single full charge.

Is this X-ray machine heavy to hold?

No, it is designed for portability with an ergonomic grip and weighs only 1.9kg, making it easy for single-handed operation.

What is the focus size and why does it matter?

The machine features a 0.4mm focus. A smaller focal spot ensures sharper images and clearer dental inspections.

Does the device have safety protections against accidental radiation?

Yes, it includes a safety lock key function to prevent misuse, accidental or unwanted exposure, and intelligent stoppage detection.

Does low battery affect the image quality?

Thanks to the double closed-loop system, the voltage remains stable, so a low battery does not affect the filming quality.

Can this be mounted on a stand?

Yes, there is an optional mobile stand available to meet different national regulations and clinic needs.
