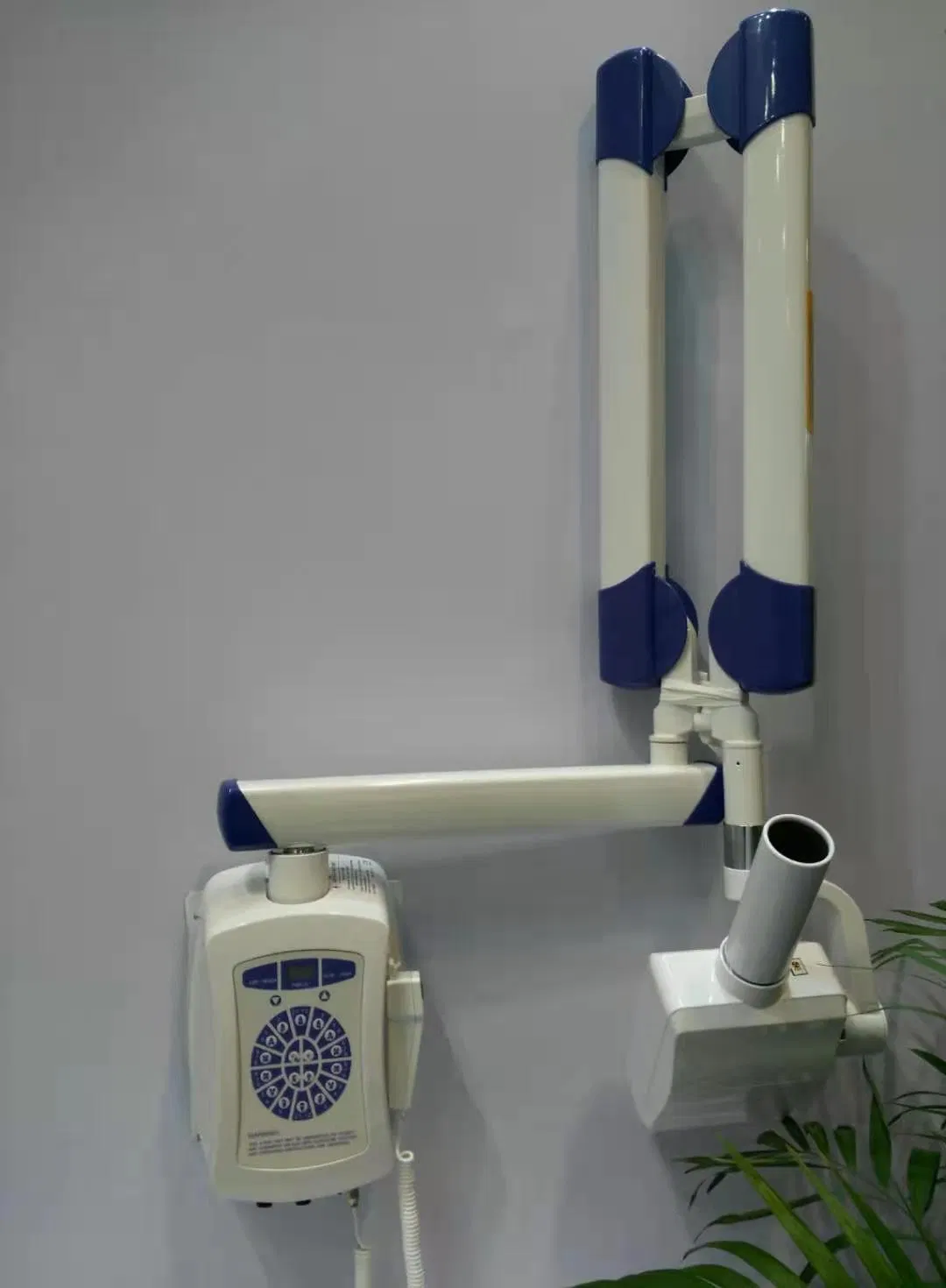

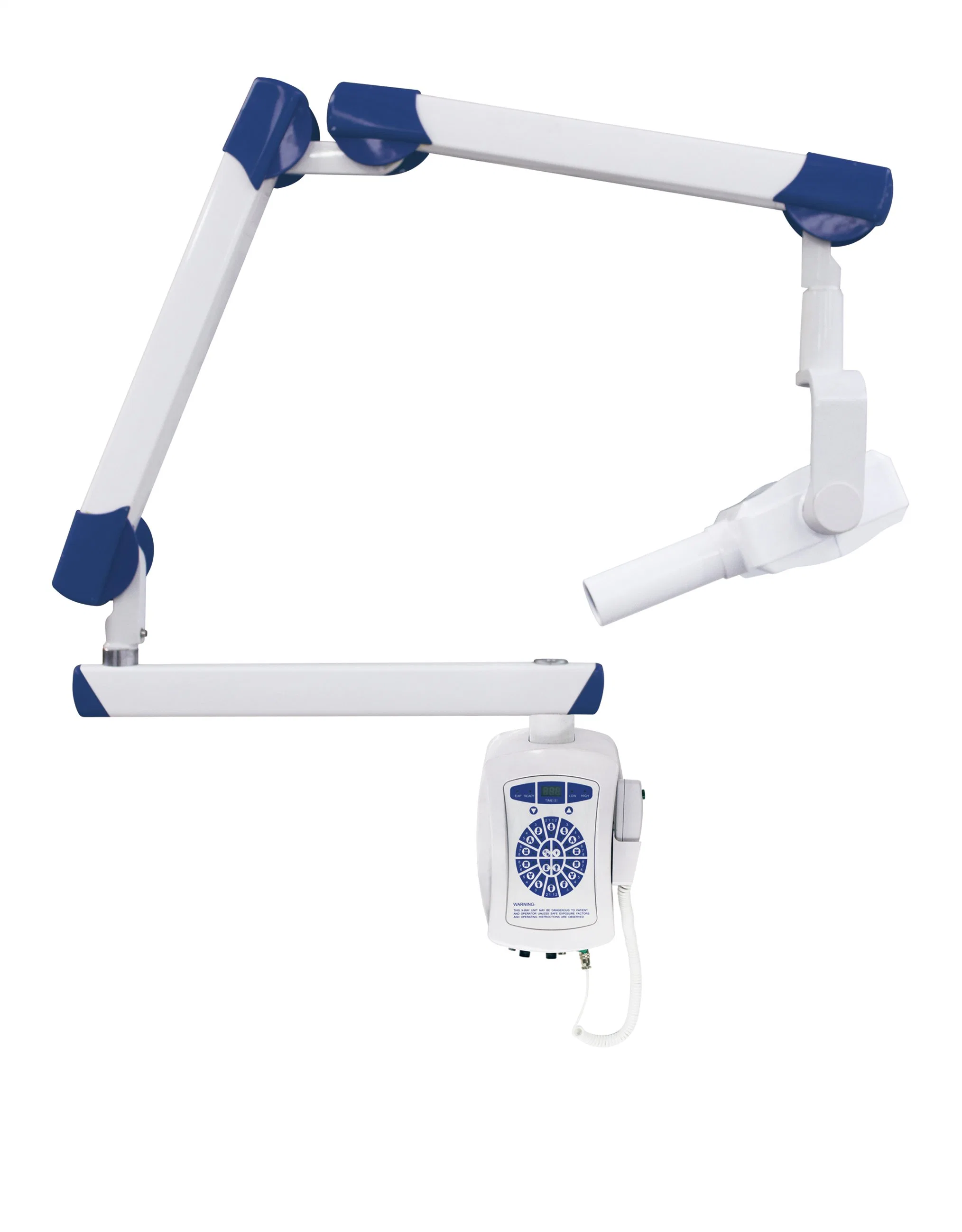

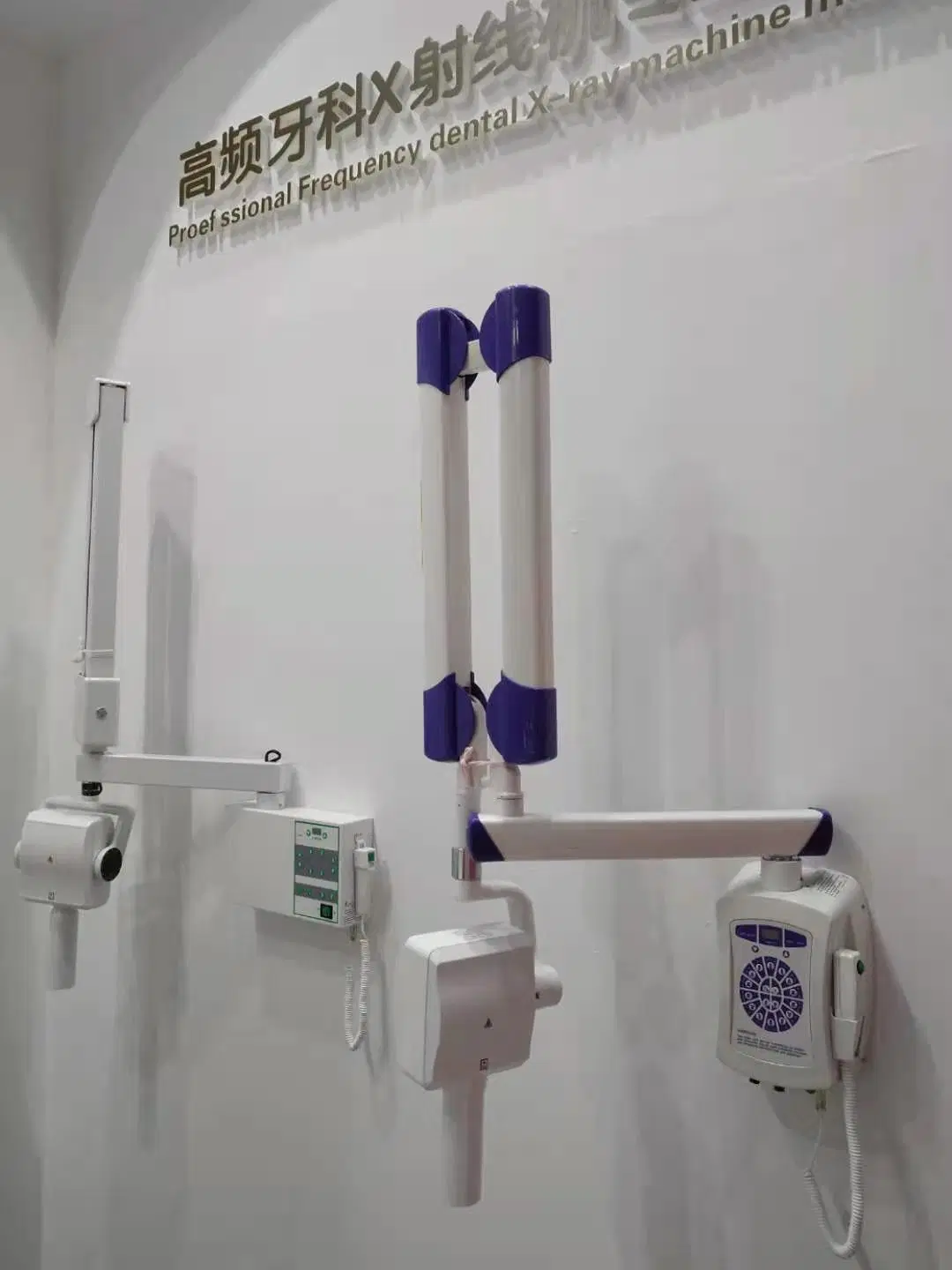

CE Digital Mobile Floor Wall Hanging X-ray Radiography System

Basic Specifications

Model

ADS-W

Type

X-Ray Equipment

Material

Aluminum

Warranty

2 Years

Design

Floor-Type

Voltage

AC220V±10%, 50Hz, 1kVA

Tube Voltage

70kv

Tube Current

8mA

Focus Size

0.8mm / 0.4mm

Exposure Time

0.02-4s

Filtration

2.5mmal

Capacity

2000 Units/Month

Product Features

International advanced technology with high efficiency and low radiation integrated design.

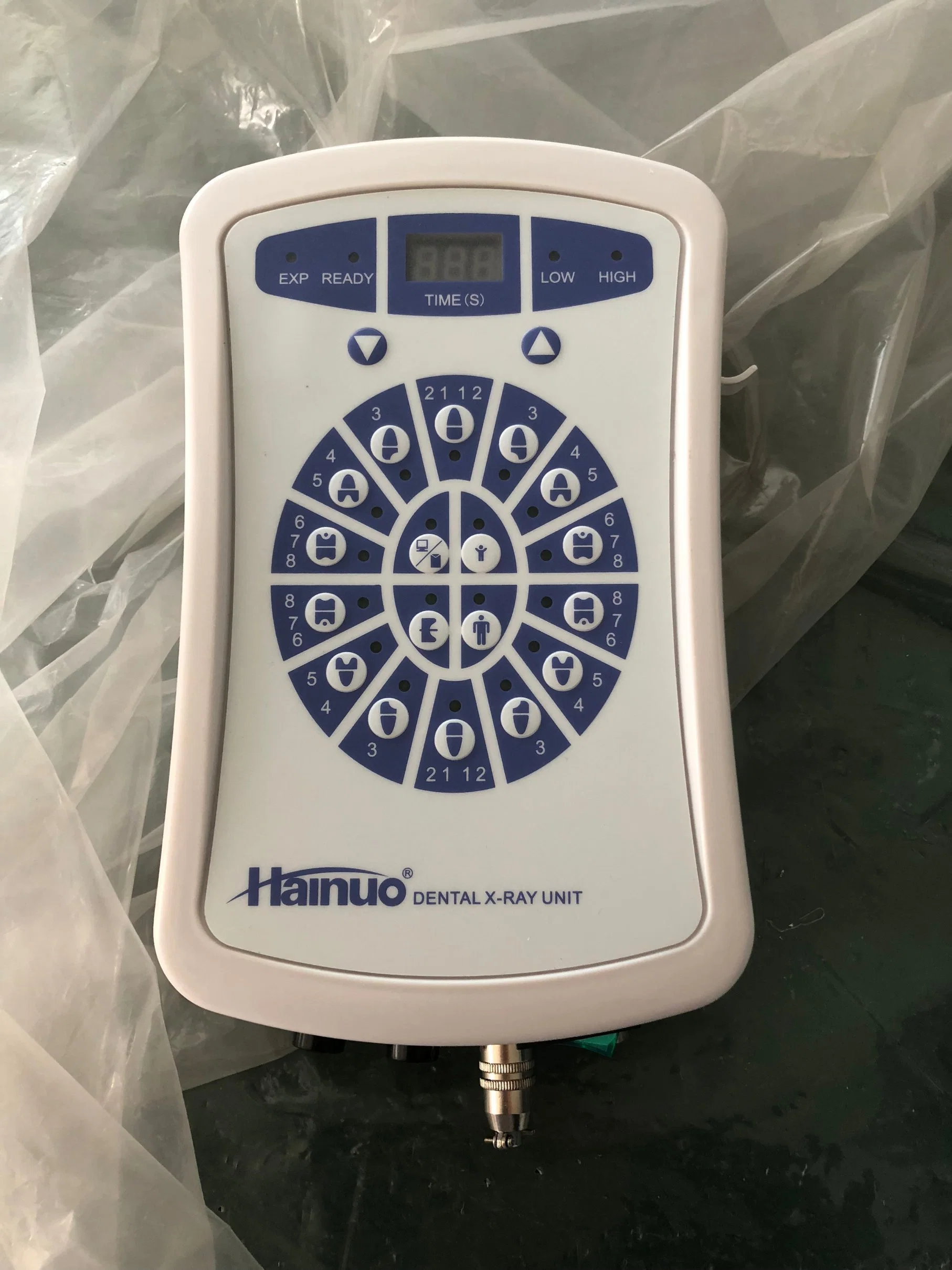

Microcomputer intelligent control: supports remote controlled exposure and high voltage protection.

Micro focus technology ensures much clearer images and more accurate clinical diagnosis.

Dual-mode base (mobile and fixed) with pneumatic lift seat for maximum comfort.

Compatible with lightroom dental film, providing imaging results within one minute.

Seamlessly connects to dental digital imaging systems for advanced root canal diagnosis.

Technical Parameters

Power Supply	AC220V+10%, 50Hz, 1KVA
Tube Voltage / Current	70kV / 8mA
Focus Size	0.8mm or 0.4mm (Customizable)
Leak Radiation	Outside 1m <= 0.002mGy/h (Better than National Standard)
Weight	Net: 28KGS / Gross: 30KGS
Package Size	97 × 32 × 45 (cm)

Safety Precautions

● Ensure a good ground lead is installed for operational safety.

● Work intermittently to manage the machine's thermal capacity.

● X-rays are only produced during the active exposure process.

● Recover the cross arm to the highest point after use for equilibrium.

● Sterilize the beam tube end with medical alcohol after contacting patients.

● Use a voltage stabilizer (1.5KW+) if local power grid voltage is unstable.

Frequently Asked Questions

Q1: What is the warranty period for this X-ray system? A: This unit comes with a full 2-year manufacturer warranty covering the main components from the date of delivery.

Q2: Can this machine be integrated with digital sensors? A: Yes, the system is fully compatible with dental digital imaging systems, making it ideal for modern clinics.

Q3: How portable is the floor-type design? A: The base is designed for both mobile and fixed modes, featuring high-quality wheels for easy relocation within the clinic.

Q4: Does the machine produce radiation when it is turned on but not in use? A: No, X-rays are only generated during the actual exposure process when the trigger is activated.

Q5: What are the requirements for the power supply? A: It requires AC220V±10%, 50Hz. For regions with unstable voltage, an industrial voltage stabilizer of 1.5KW or higher is recommended.

Q6: How clear are the images produced by this device? A: Thanks to the 0.8mm/0.4mm micro-focus technology and 70kv tube voltage, the system provides high-contrast, sharp images for accurate diagnosis.
