| No. | Description | Quantity |
|---|---|---|
| 1 | 24v silence Taiwan motor | 1 set |
| 2 | 3-way syringe (cold/hot) | 2 pcs |
| 3 | Water heating system | 1 set |

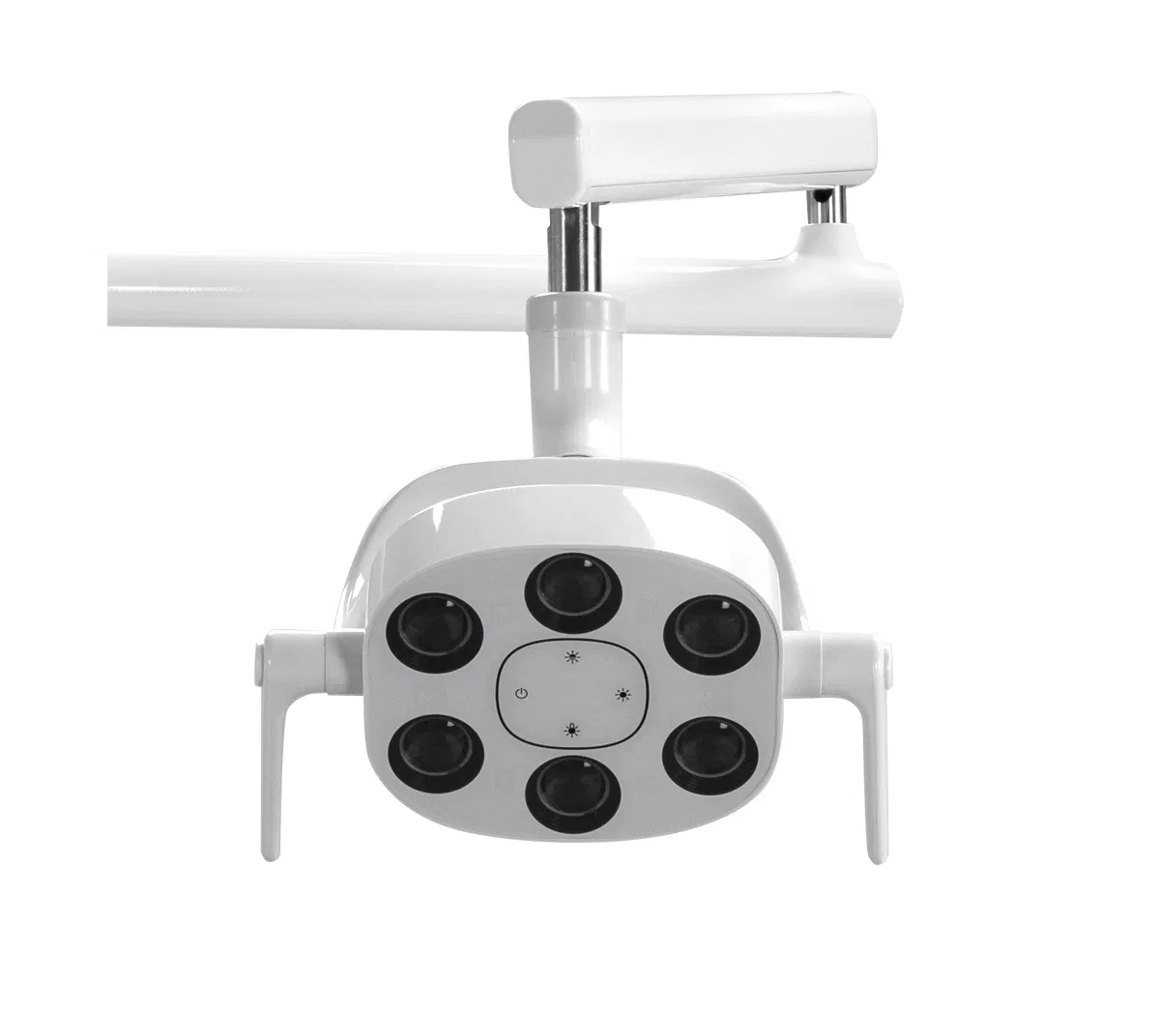

| 4 | Luxury LED lamp | 1 pc |
| 5 | Saliva ejector (strong and weak) | 1 set |
| 6 | LED film viewer | 1 set |
| 7 | Purified water storage system | 1 set |
| 8 | Luxury down-mounted tool tray | 1 set |

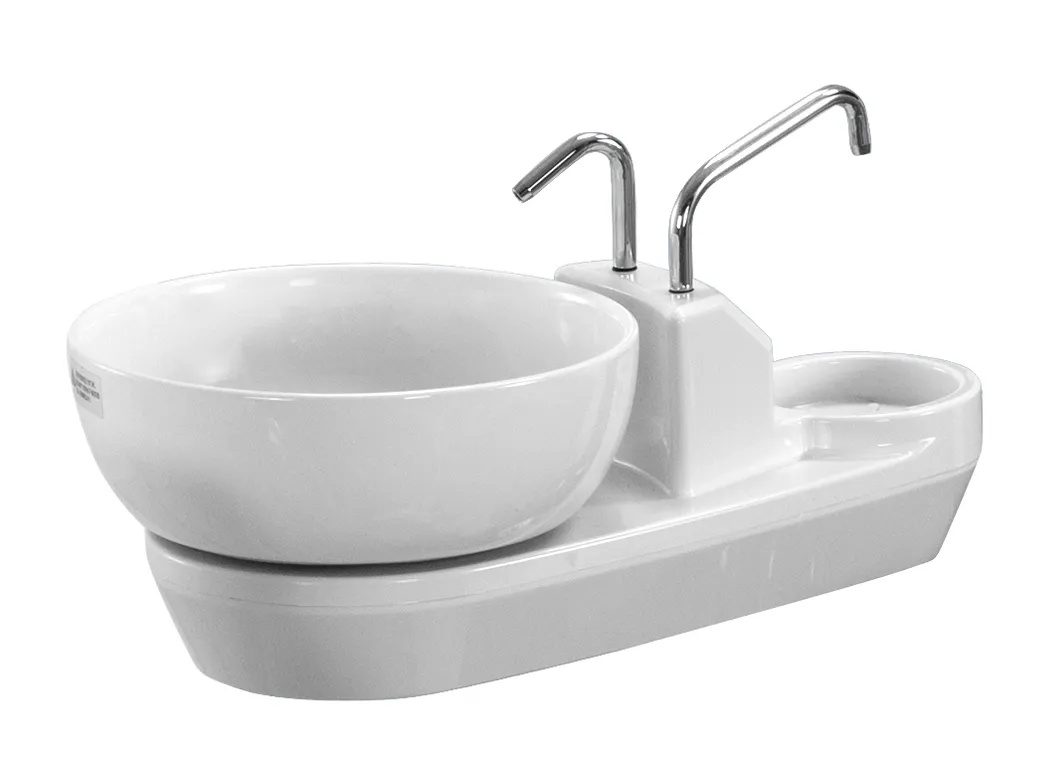

| 9 | Rotary ceramic spittoon | 1 set |
| 10 | Double armrest | 1 set |

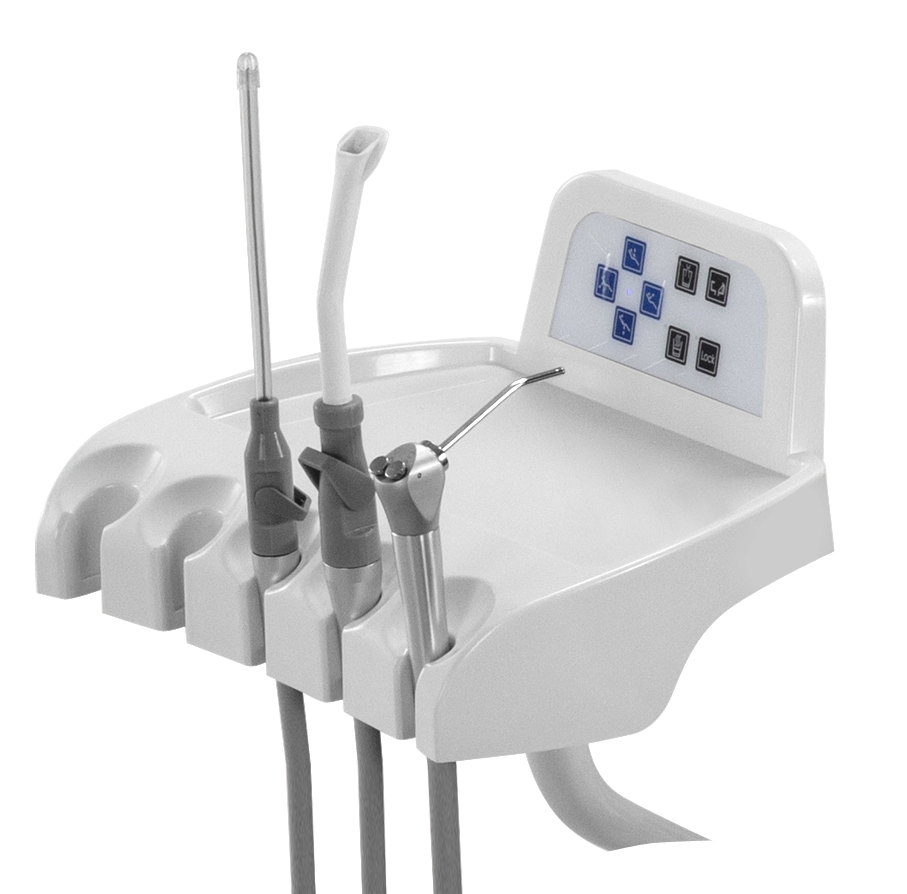

| 11 | Assistant control system | 1 set |
| 12 | Micro fiber cushion | 1 set |
| 13 | Multi-function foot pedal 6 in 1 | 1 set |
| 14 | Silent Castor Dentist stool | 1 set |
| 15 | Painting steel base | 1 set |
| 16 | Imported water & air tubes | 1 set |
| 17 | Italy solenoid valve (ODE) | 1 set |

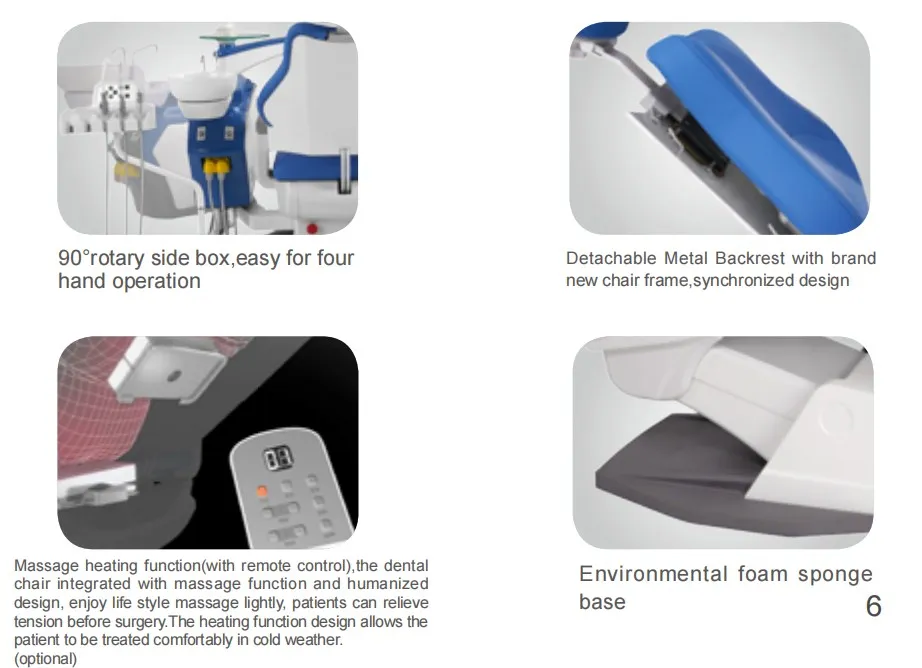

| 18 | Message heating function | 1 set |
| 19 | Memories systems | 3 sets |
Environment Temperature: 5°C to 40°C
Relative Humidity: ≤ 80%
Power Supply: ~110-220V ± 10%; 50Hz ± 10%
Air Pressure: 400-600kPa
Water Pressure: 200-400kPa
Bearing Capacity: ≤ 135 KG
1. Water supply pipe: White PPR Fusion Tube, reserved 4 points copper internal tooth interface.
2. Air supply pipe: White PPR Fusion Tube, reserved 4 points copper internal tooth interface.
3. Drainage pipe: White PVC drain pipe, main pipe 17mm, branch pipe φ50mm.
4. Video & Data: VGA/USB threading pipe φ 32mm.
5. Negative pressure pipe: Blue UPVC water supply pipe, outer diameter φ50mm, branch φ32mm.
6. Power & Signals: Power cord 3*1.5mm²; signal line 2*1mm².
Note: 45-degree joints are required at drain and negative pressure pump connections.
