Foshan China Oral Treatment Unit Dental Chair Unit

1 / 5

Foshan China Oral Treatment Unit Dental Chair Unit

Applicable Departments:	Oral Surgery
Certification:	ISO, CE
Type:	Dental Unit

Send Inquiry

Product Description

Basic Specifications

Model NO.

KJ-917(2015)

Material

Metal

Dental Light

LED & Halogen Lamp

Leather

PU or Leather Cushion

G.W

200kg

Color

18 Color Options

Power Voltage

220V/50Hz ; 110V/60Hz

Certificate

CE, ISO

Description

DC 24V Motor Driven Chair

Transport Package

Wooden Case

Specification

1.3m * 1m * 0.78m

Capacity

500 sets/Month

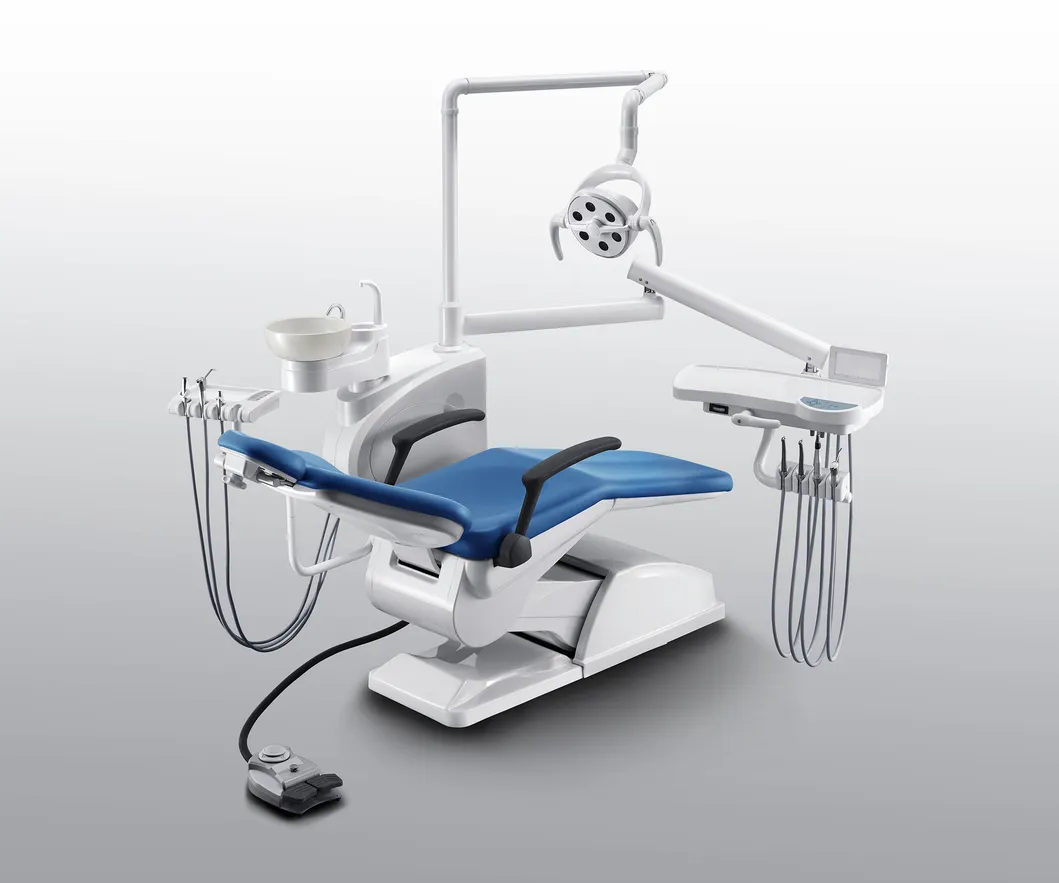

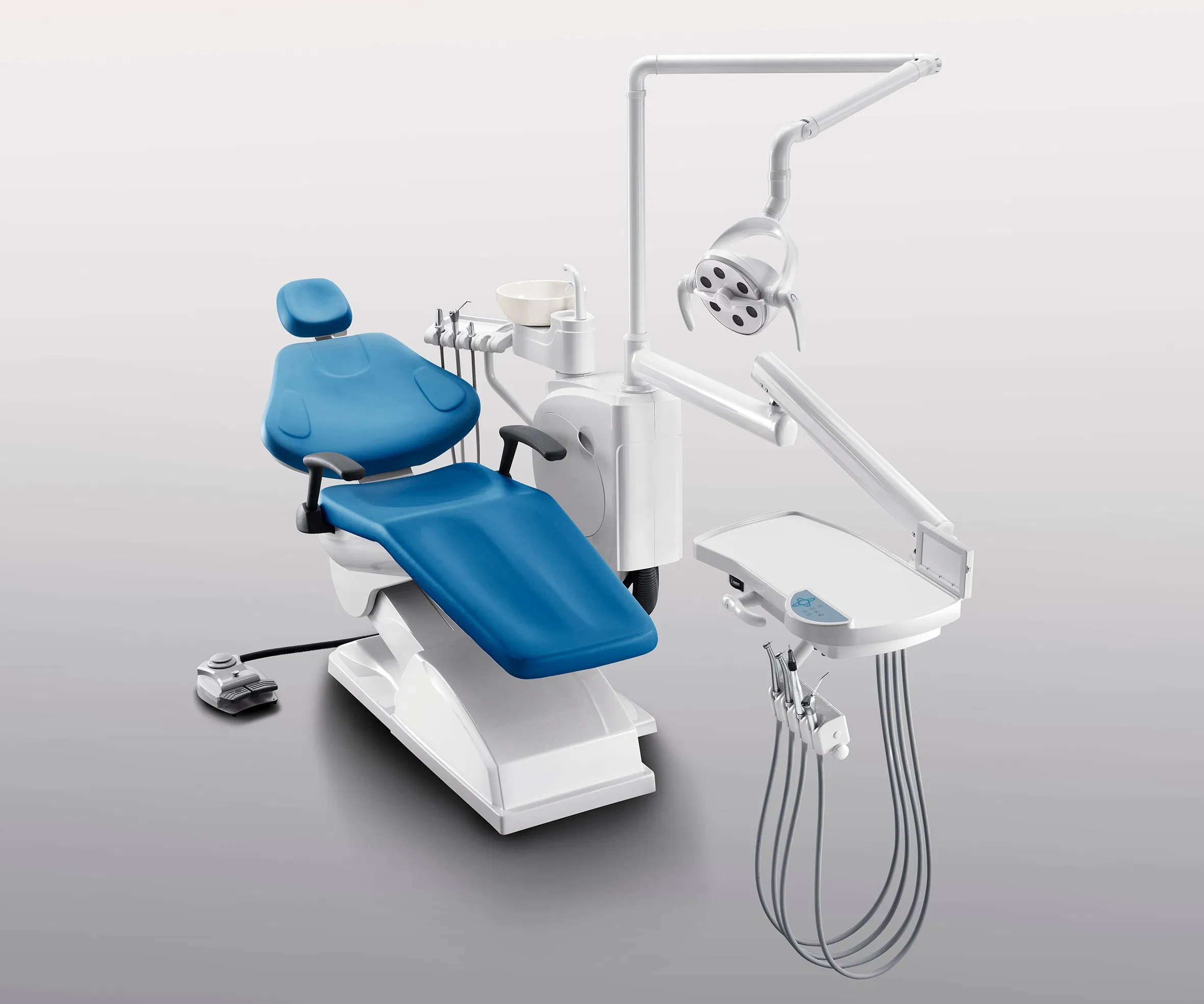

Product Overview

Hot sale dental hospital use economic type oral treatment unit.

◈ Using high-quality metal material, the cover based on streamline design is extremely stable.

◈ Basic configuration includes saliva ejector with high and low suction and a 3-way syringe for ease of use.

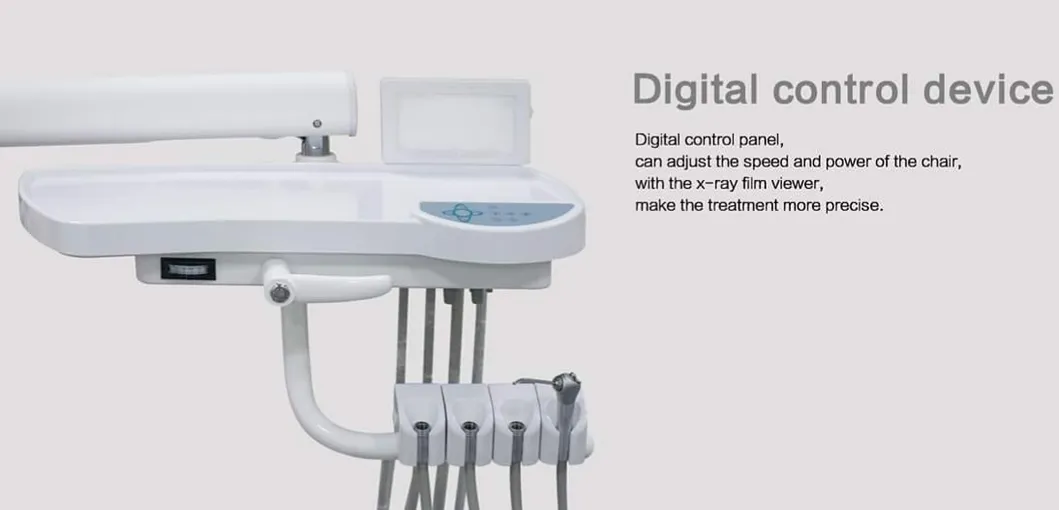

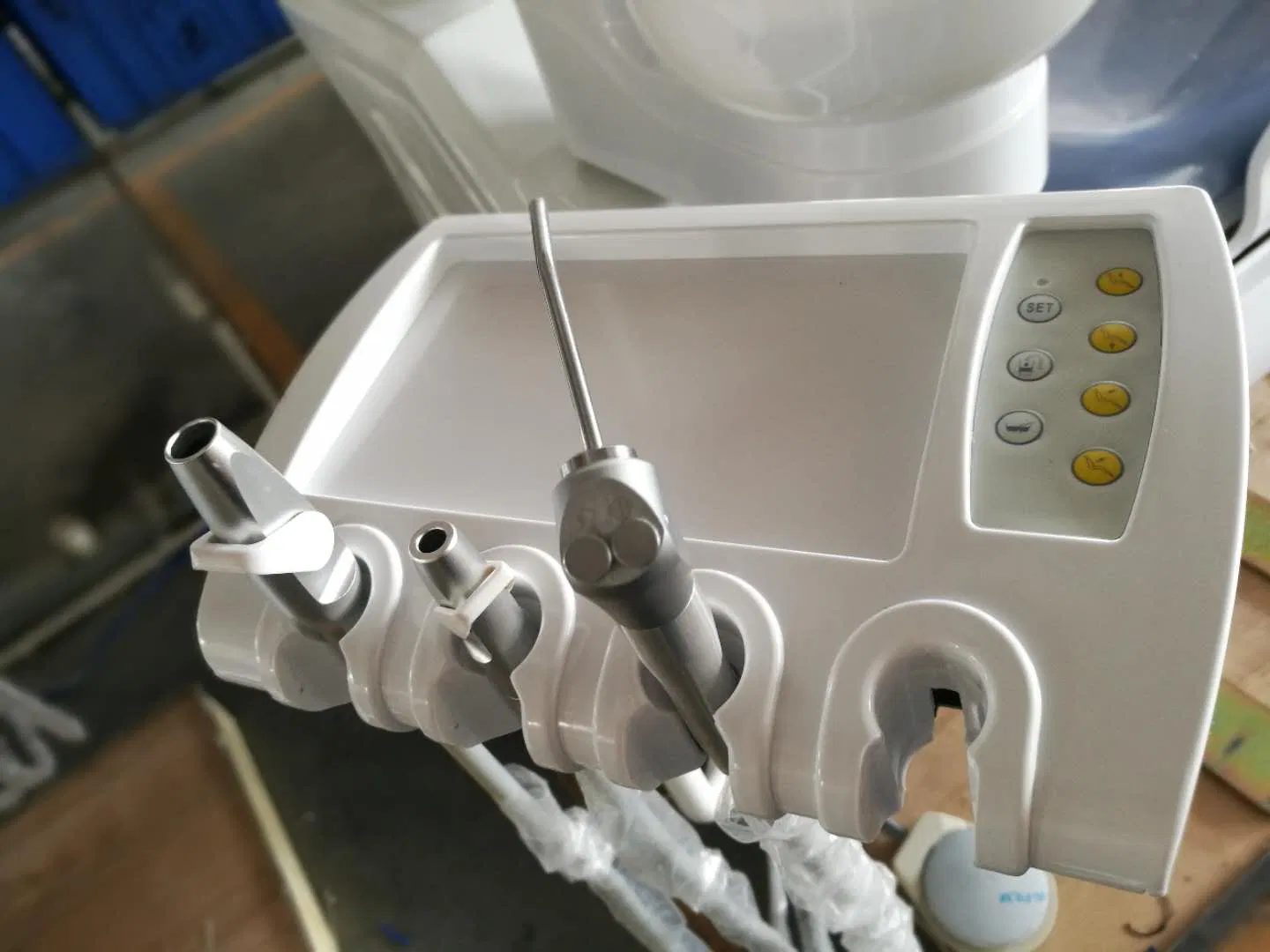

Tool Tray:

Bigger tool tray table with air switch that can rotate; includes 5 holders for dental tools, making it helpful to take up and put down.

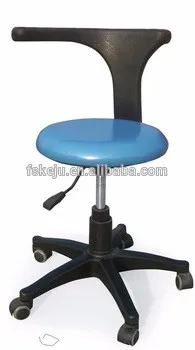

Doctor's Chair:

The chair is made of PU cushion, features 360° degree rotation, and includes durable nylon wheels with a supportive backrest.

Standard Equipment

High speed handpiece connector	2 sets
Low speed handpiece connector	1 set
3-way syringe (cold and hot)	2 PCS
Operation lamp	1 set
Built-out ground box	1 set
Saliva ejector (strong and weak)	1 set
Automatic cup filler	1 set
Movable assistant device	1 set
Built-out water purified system	1 set
24V D.C noiseless motor	2 sets
PU cushion	1 set
Doctor's stool	1 set
Movable ceramic spittoon	1 set

Technical Parameters

Power supply	220V 50Hz 2.5A (110V 60HZ 5A)
Input power	24V
Water pressure	0.2MPa-0.4MPa
Air pressure	0.5MPa-0.6MPa

Optional Features

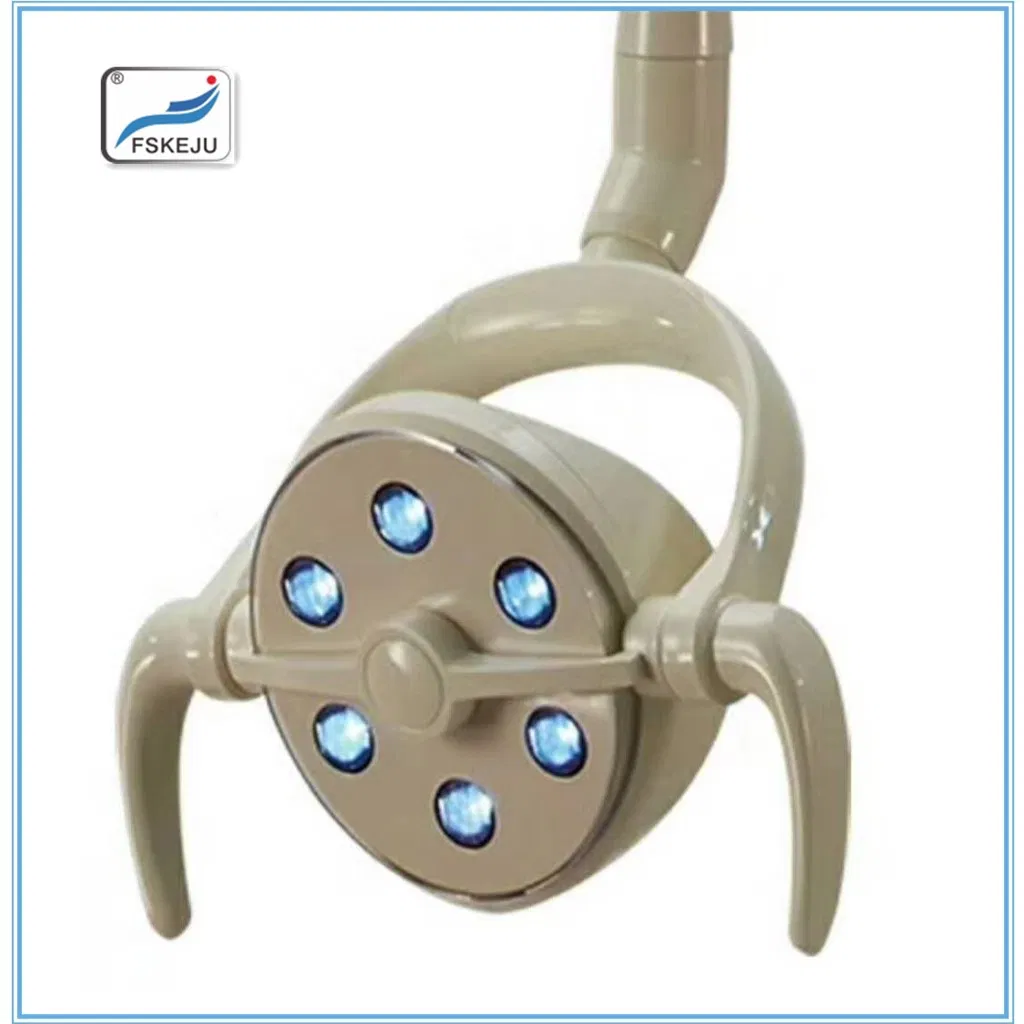

Dental operating light with sensor (or LED)

Top-mounted instrument tray

High & Low speed handpieces

Ultrasonic scaler

LED cure light

Leather cushion

Air compressor

Endoscopic system

Packaging & Delivery

Packing Size Option A: 1.43m*1m*1.16m (16pcs in 20' container)

Packing Size Option B: 1.3m*1m*0.78m (27pcs in 20' container / 63pcs in 40' container)

Delivery: Within 7-14 days after payment confirmed.

Service & Support

Further Support:

Local factory visit service.
Dental industry information service.
Product searching and customized procurement plans.

After-sale Service:

1 Year Warranty
Return or Exchange Policy

Frequently Asked Questions

What materials are used in the construction of this dental chair?

The chair features a stable metal base and a streamline design. The cushions are available in either high-quality PU or optional leather for patient comfort.

What are the power requirements for the unit?

The unit is compatible with 220V/50Hz (2.5A) or 110V/60Hz (5A) power supplies. The chair itself is driven by a 24V D.C noiseless motor.

What certifications does this dental equipment have?

This dental chair unit has been awarded the ISO13485:2003 certificate and holds a CE certificate issued by the APPAGAZ Belgium inspecting authority.

How many color options are available for the upholstery?

We offer a selection of 18 different colors, allowing you to choose the best fit for your clinic's interior design.

What is the delivery timeline for an order?

Delivery usually takes place within 7 to 14 days once the payment has been confirmed.

What kind of after-sale support is provided?

We provide a 1-year warranty on the equipment and have a clear policy for returns or exchanges to ensure customer satisfaction.
