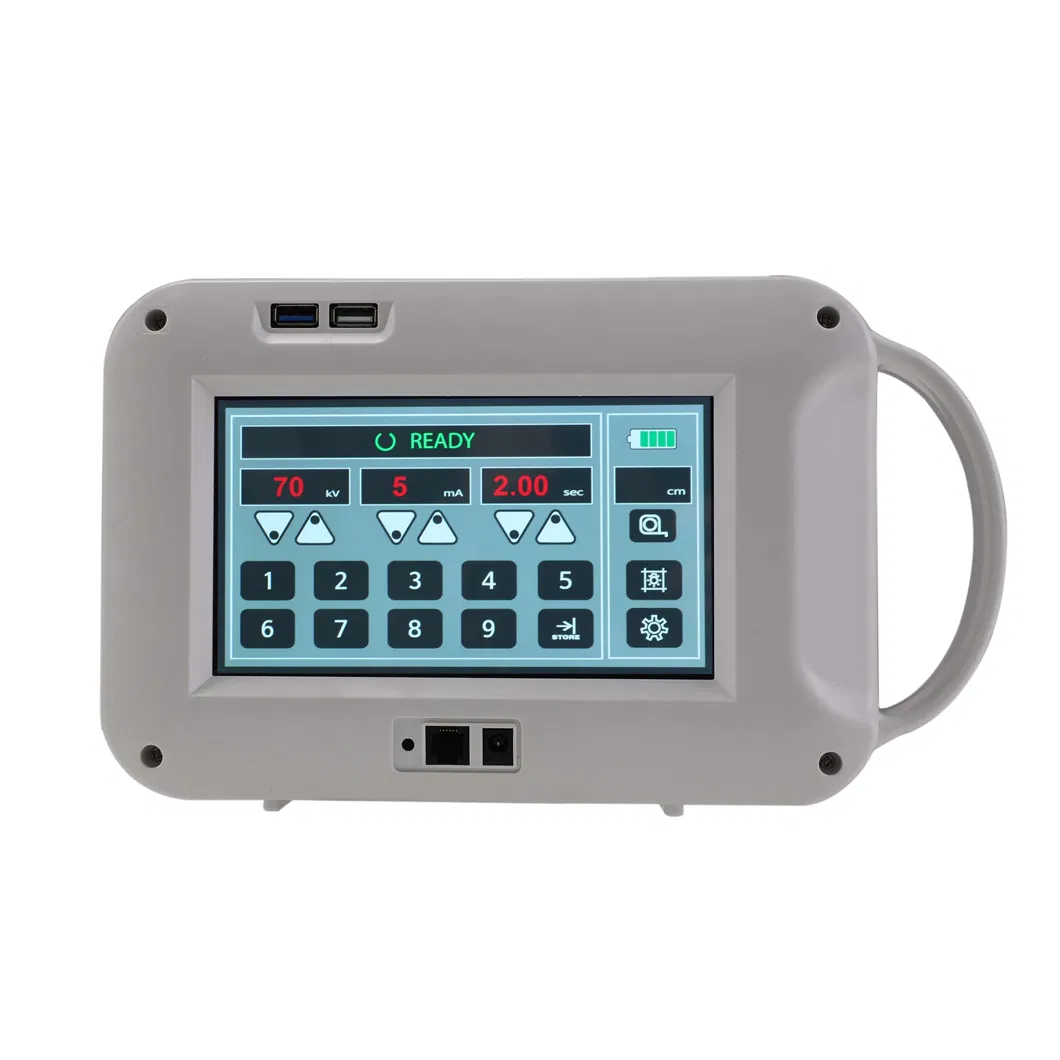

High Quality Dental Medical Portable Hand Held Digital X Ray System

1 / 5

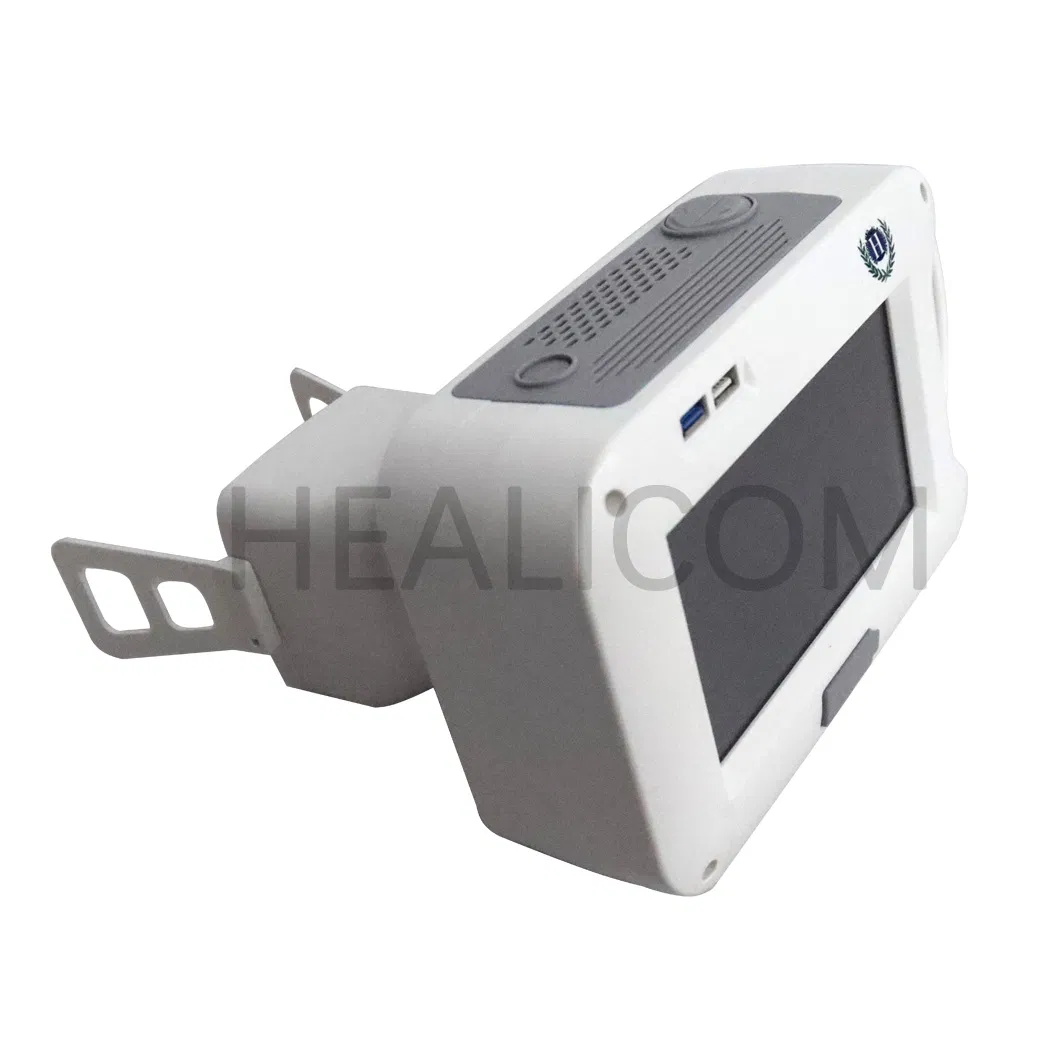

High Quality Dental Medical Portable Hand Held Digital X Ray System

Customization:	Available
Classification:	Imaging Diagnostic Equipment
Type:	X Ray Equipment

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

HFX-01

Certification

CE, ISO13485

Dimension

285mm X 265mm X 168mm

Weight

3.2kg±5%

Screen

7 Inches (1024X600)

Battery

22.2V Polymer Lithium Ion

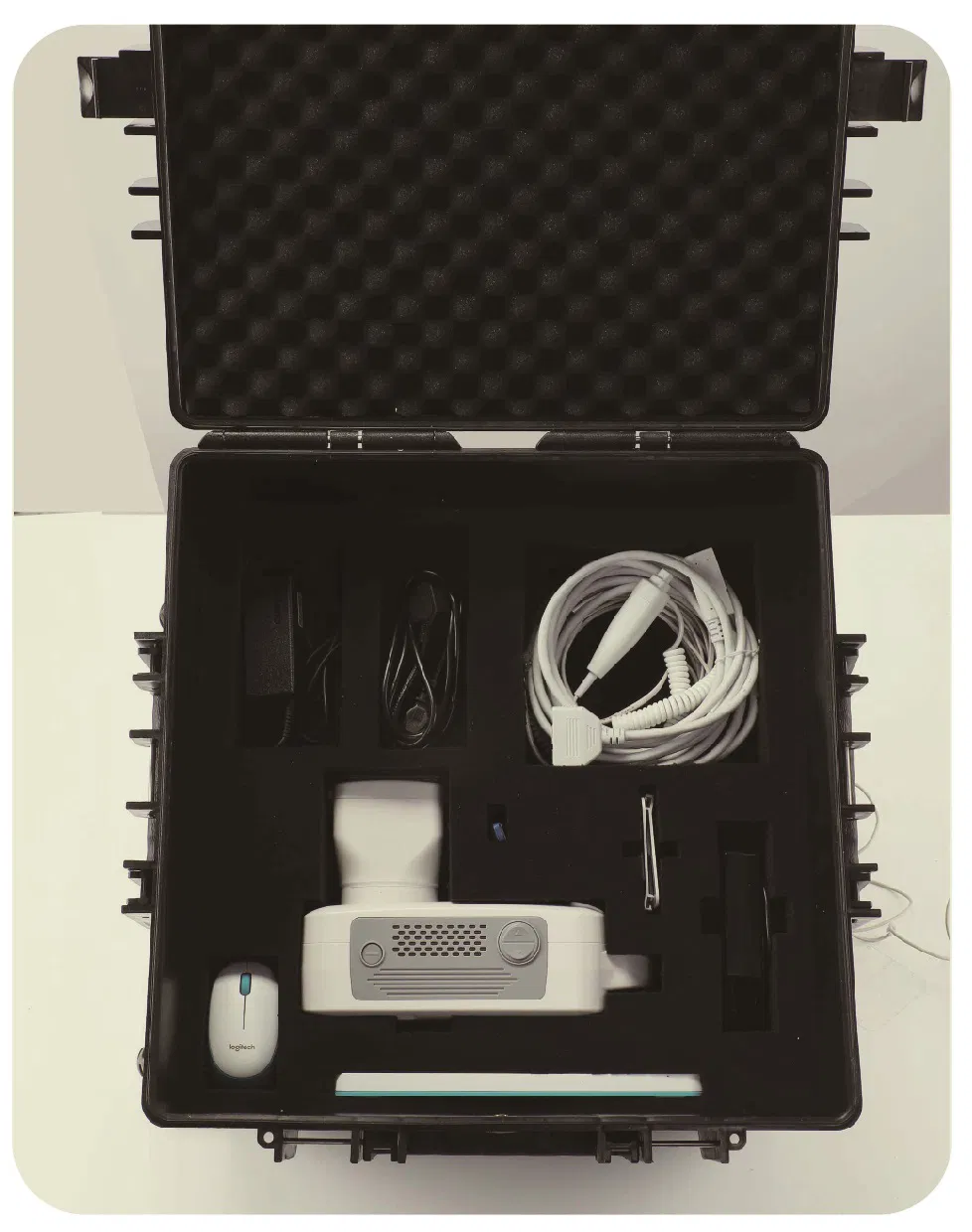

Transport Package

Wooden Case

Origin

Jiangsu, China

Production Cap.

500 Piece/Month

🔍 Product Description

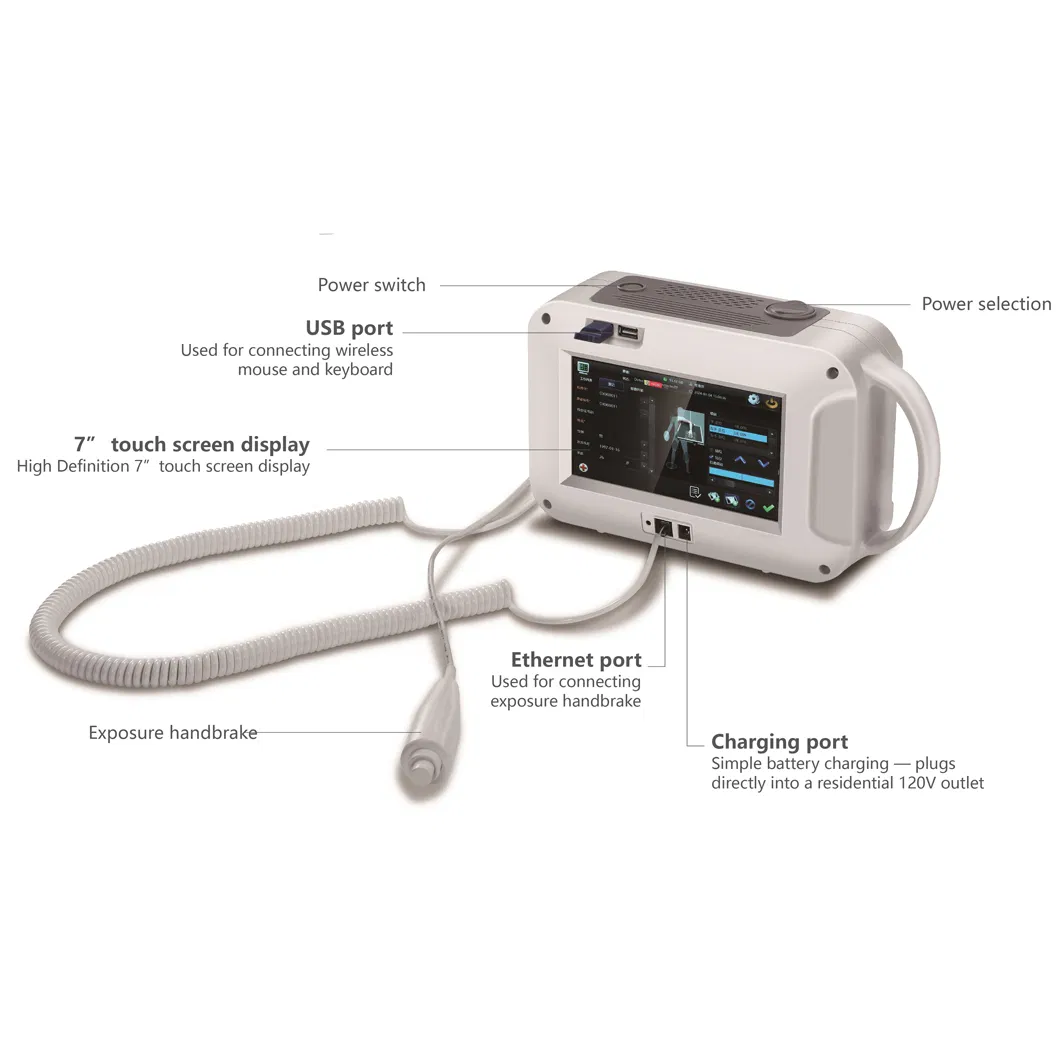

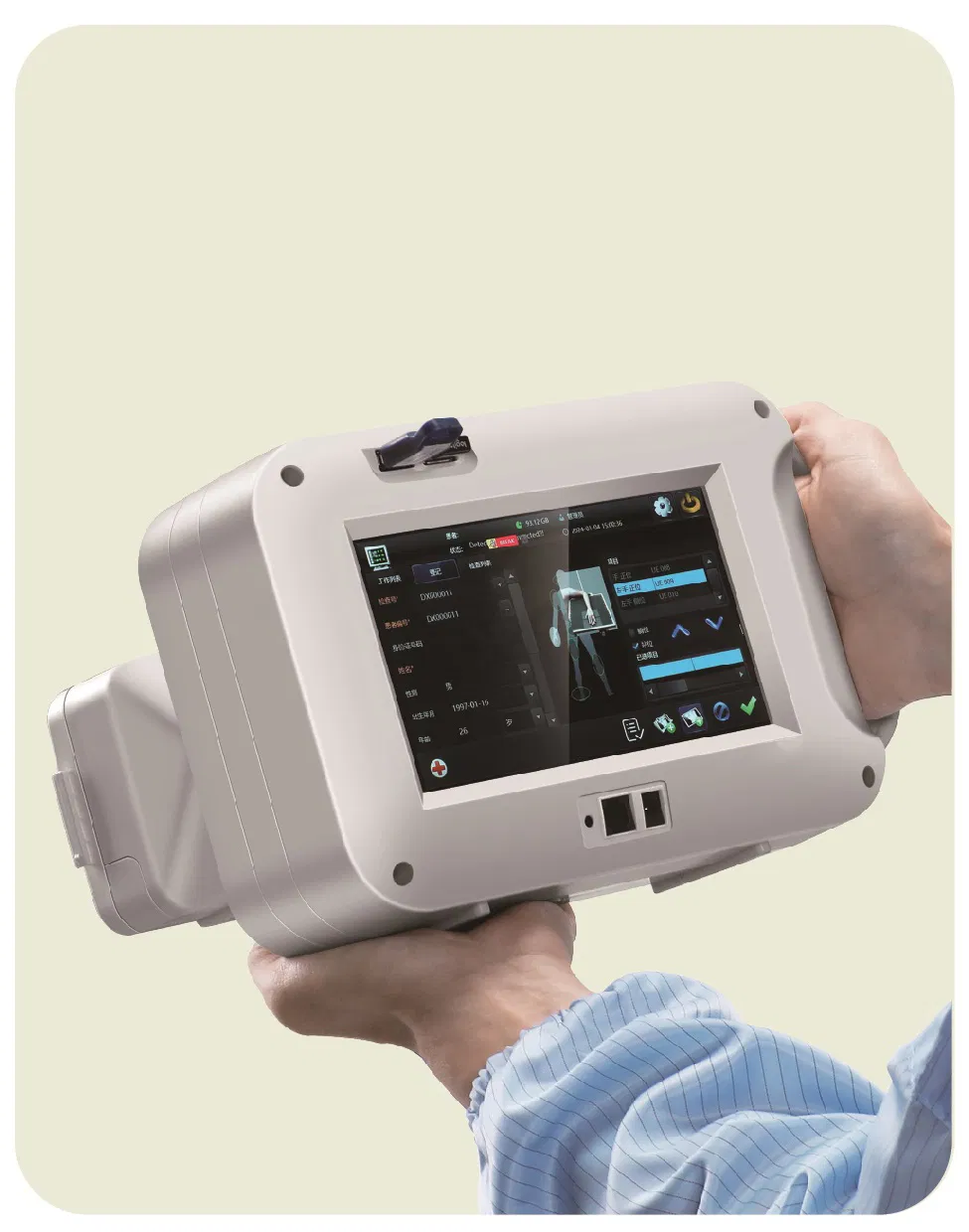

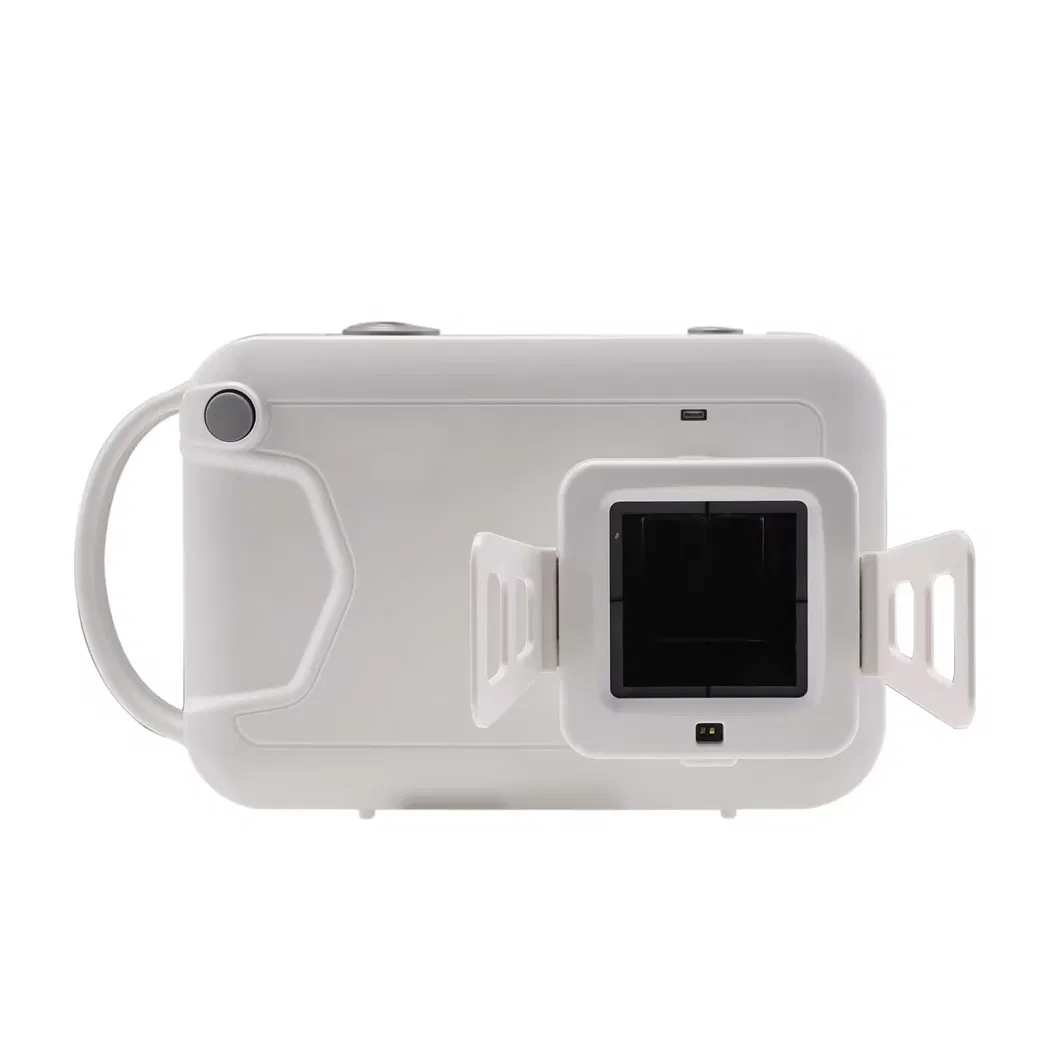

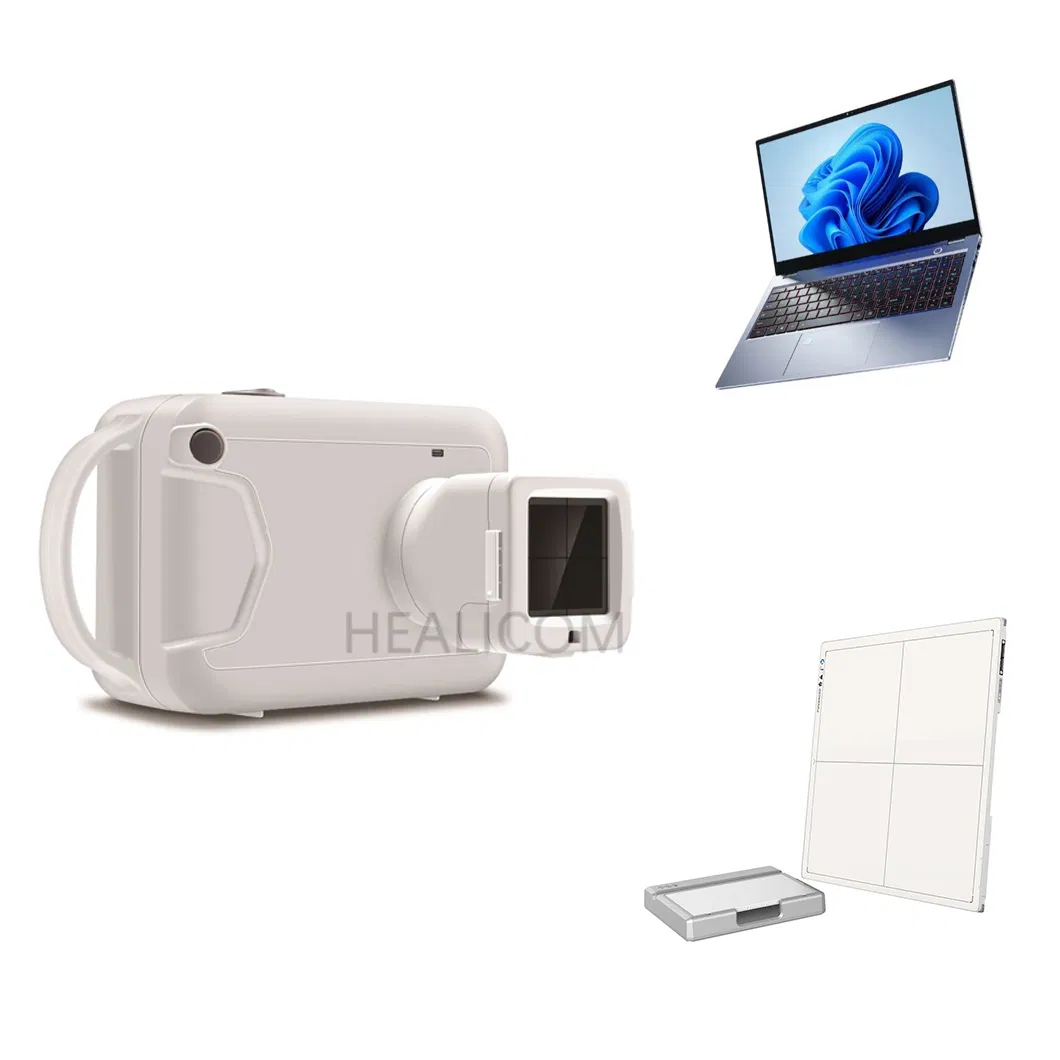

HFX-01 Digital Portable X-ray System with Digital Detector and Laptop Computer

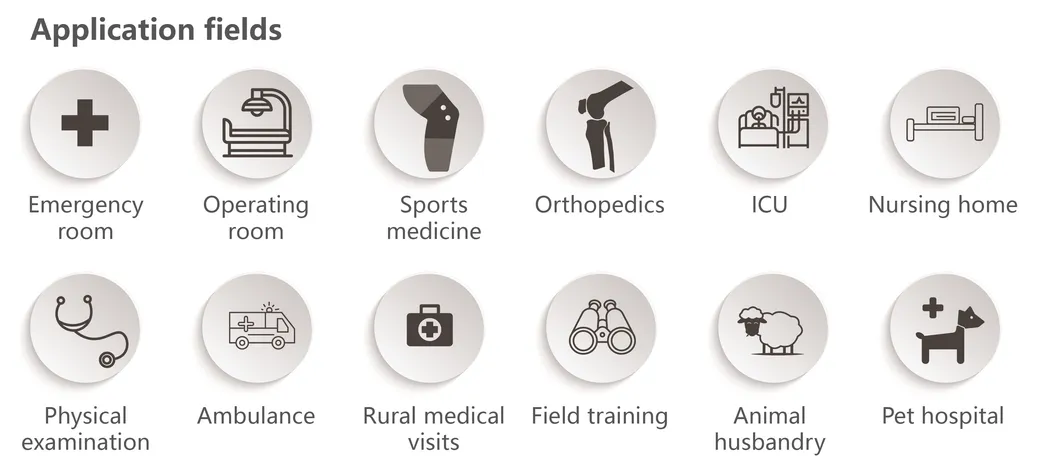

With a compact design, the HFX-01D wireless and battery-operated system allows operators to take X-ray images without the dedicated physical space required for a conventional radio-graphic system. It applies to limbs, cervical spine, head, chest, etc.

📏

Compact Design

Requires minimal space and accommodations and can be moved as needed.

💻

Integrated Software

Built-in workstation doesn't require installation and additional equipment.

🔁

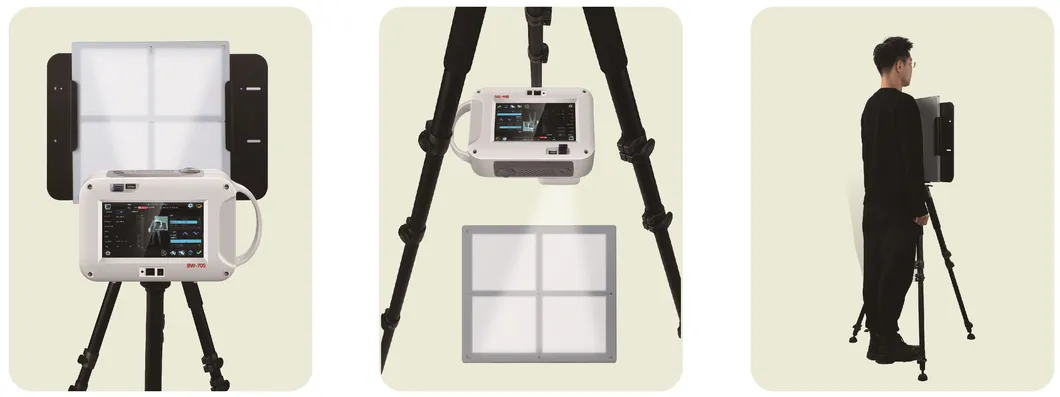

Multiple Angles

Taking images from multiple angles without the need to move patients.

📱

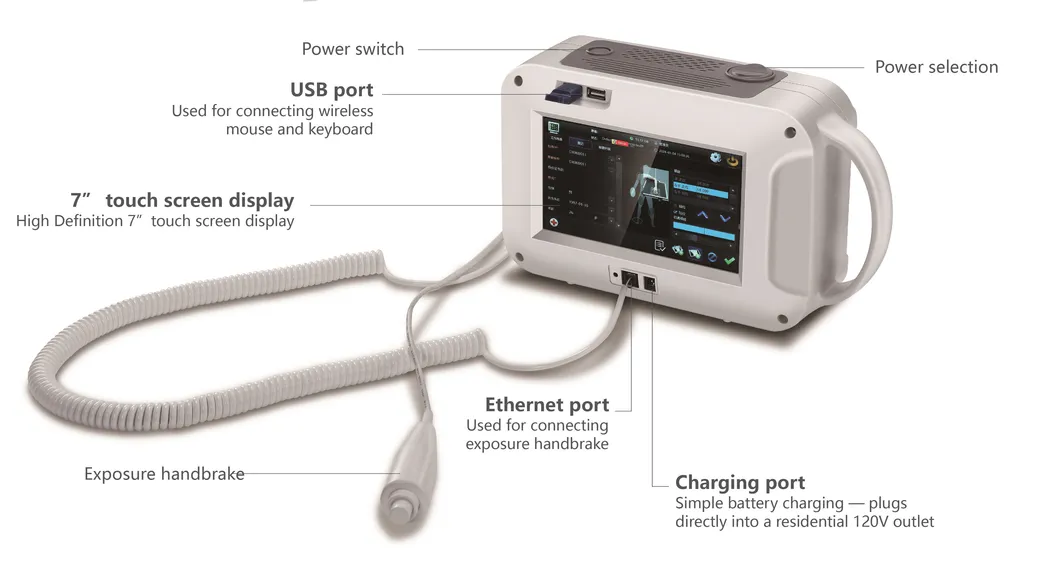

HD Touch Screen

High Definition 7" screen brings easy operation and clear images.

🔋

High Battery Capacity

A fully charged battery can expose more than 120 images at full power.

🚷

Minimized Radiation

Protects patient and operator with the lowest possible radiation dose.

⚙ Device Parameters

Project		Specification
Charger	Input	Mono-phase, AC power 220V±10%
	Frequency	50Hz±1Hz
	Output	25.2 VDC, 1.5A
Battery		22.2V (polymer lithium ion), 2200mAh
kV (Adjustable)		50 -70 kV (step: 1 kV)
mA (Adjustable)		2 - 5mA (step: 1 mA)
X-ray Release Time		0.03-0.20secs (step: 10ms) / 0.20-2.00secs (step: 50ms)
Screen		7 inches (resolution: 1024x600)
X-ray Tube	Model	C.E.I OX/70-3
	Inherent Filter	0.5mm AL
	Focus Point	0.3 * 0.3mm
Dimension		285mm x 265mm x 168mm
Weight		3.2kg±5%

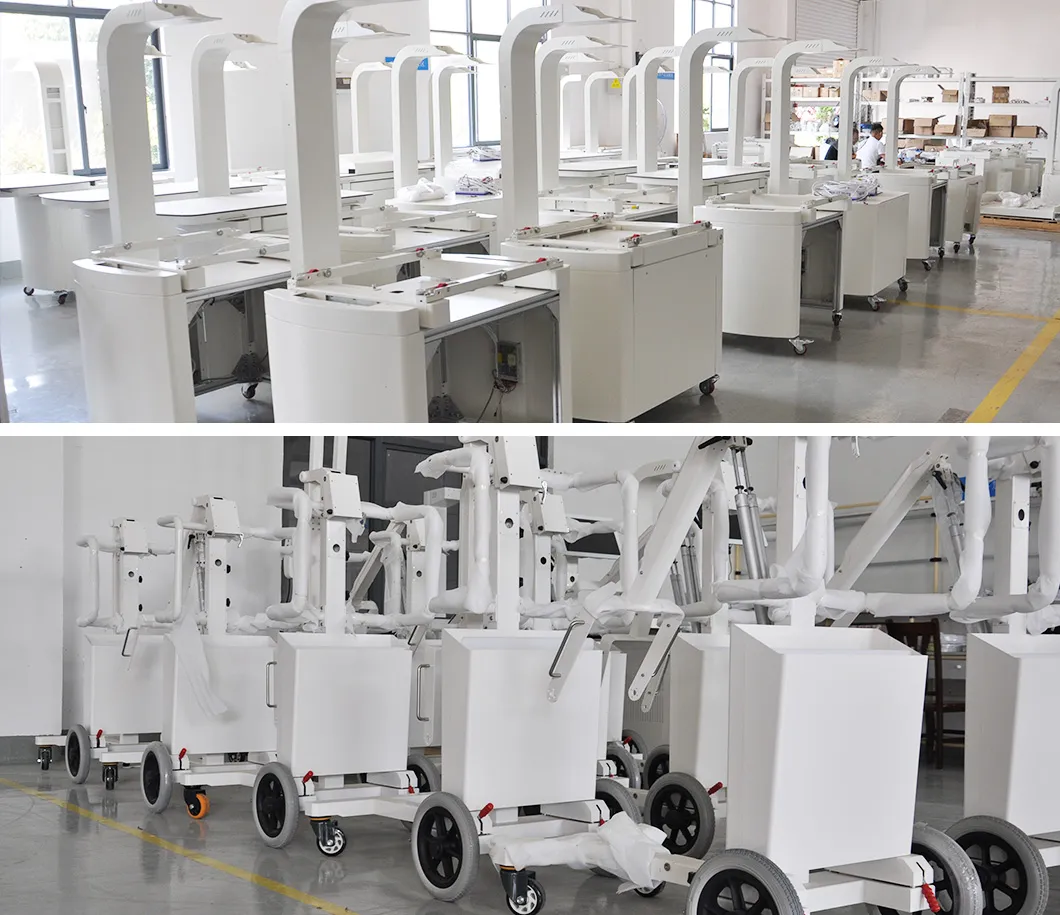

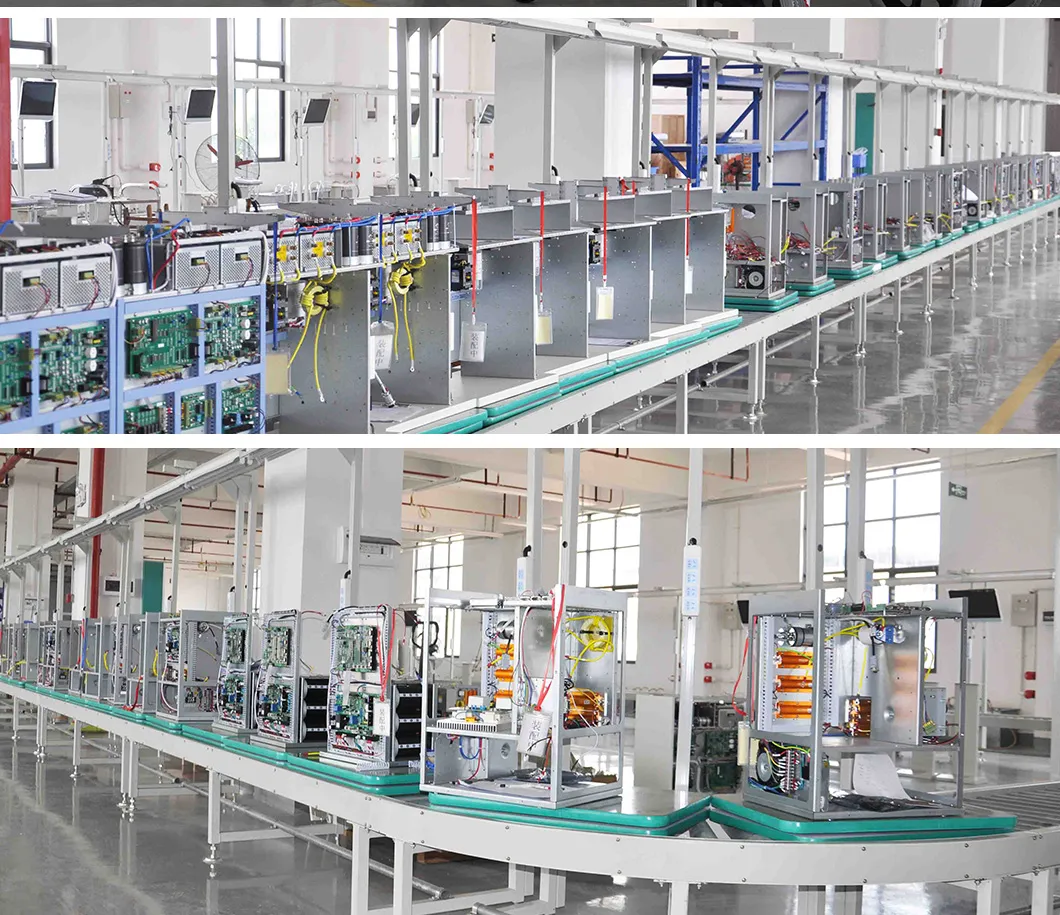

🏭 Workshop & Factory

📰 Certificates & Quality

❓ FAQ

What is the time of delivery?

Since our products are produced according to each specific order, the delivery period will be 15 days after confirmation of order. For small or sample orders, please check with us regarding stock availability for immediate delivery.

What about quality assurance?

We offer a one-year warranty beginning from the time of shipment. For minor problems, we provide free spare parts for replacement. For serious issues, we can replace the unit free of charge.

What is your price level?

Our prices are highly competitive within the same quality level, backed by over 20 years of experience in this field. We adhere to providing top-quality products at competitive rates globally.

Why are some prices higher than other suppliers?

Prices for copy products using cheaper materials and less stringent quality control are naturally lower. We focus on genuine quality, patent rights, and long-term reliability.

What are the payment terms?

We accept T/T in advance, L/C, Western Union, PayPal, and MoneyGram.

Which shipping methods do you use?

We work with major lines like MAERSK, COSCO, and APL, as well as couriers like DHL, EMS, TNT, and UPS. Buyer preference is our priority for scheduling.
