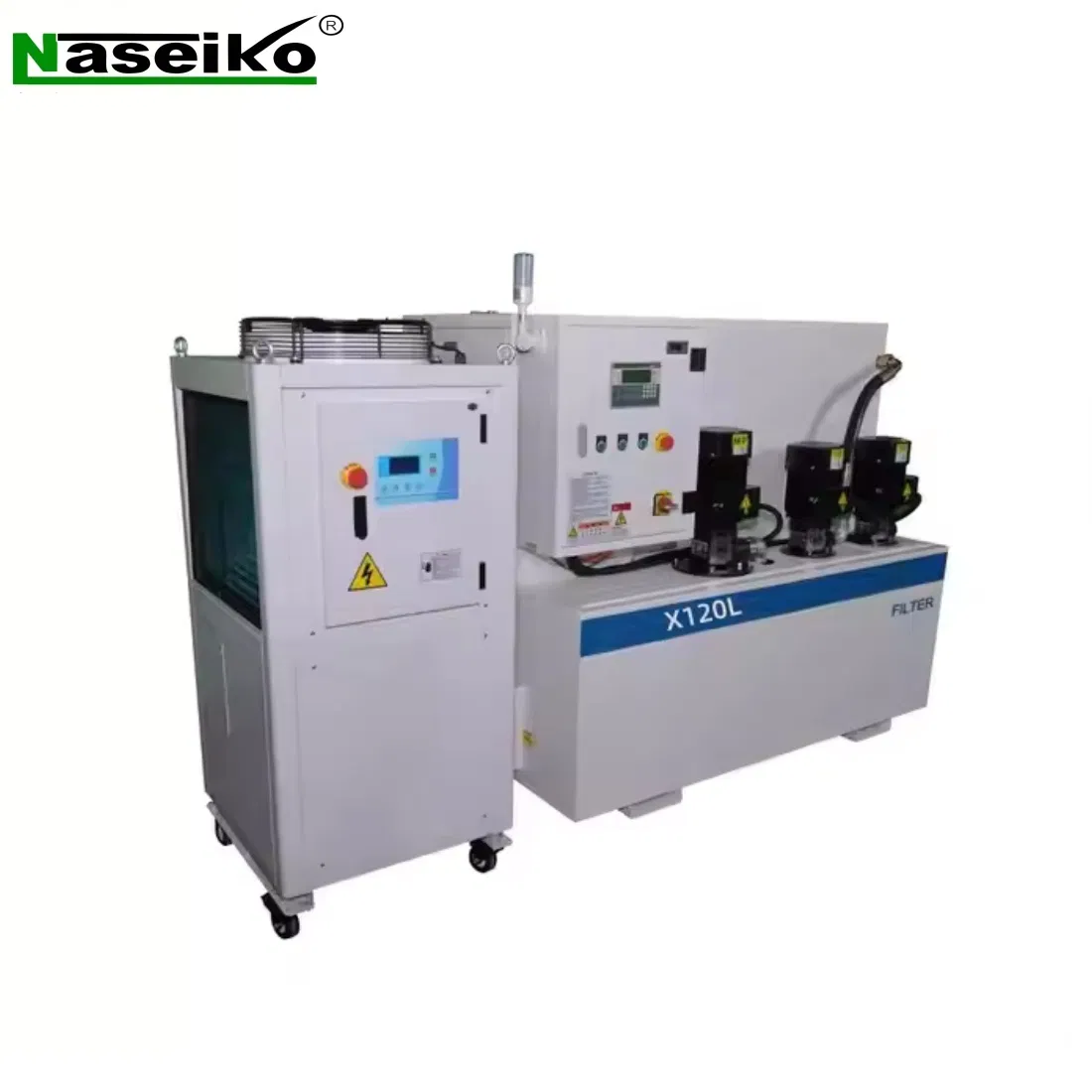

Industrial Coolant Filtration System for Precision Processing Support

Customization:	Available
After-sales Service:	Technique Support
Warranty:	1 Year

Basic Information

Model NO.

NZ-X120L

Capacity

700L

Filter Power

2.2kw

Cooling Power

7kw

Weight

730kg

Package Size

220.00cm * 125.00cm * 175.00cm

Specification

2000*1050*1550 mm

HS Code

8421299090

Product Description

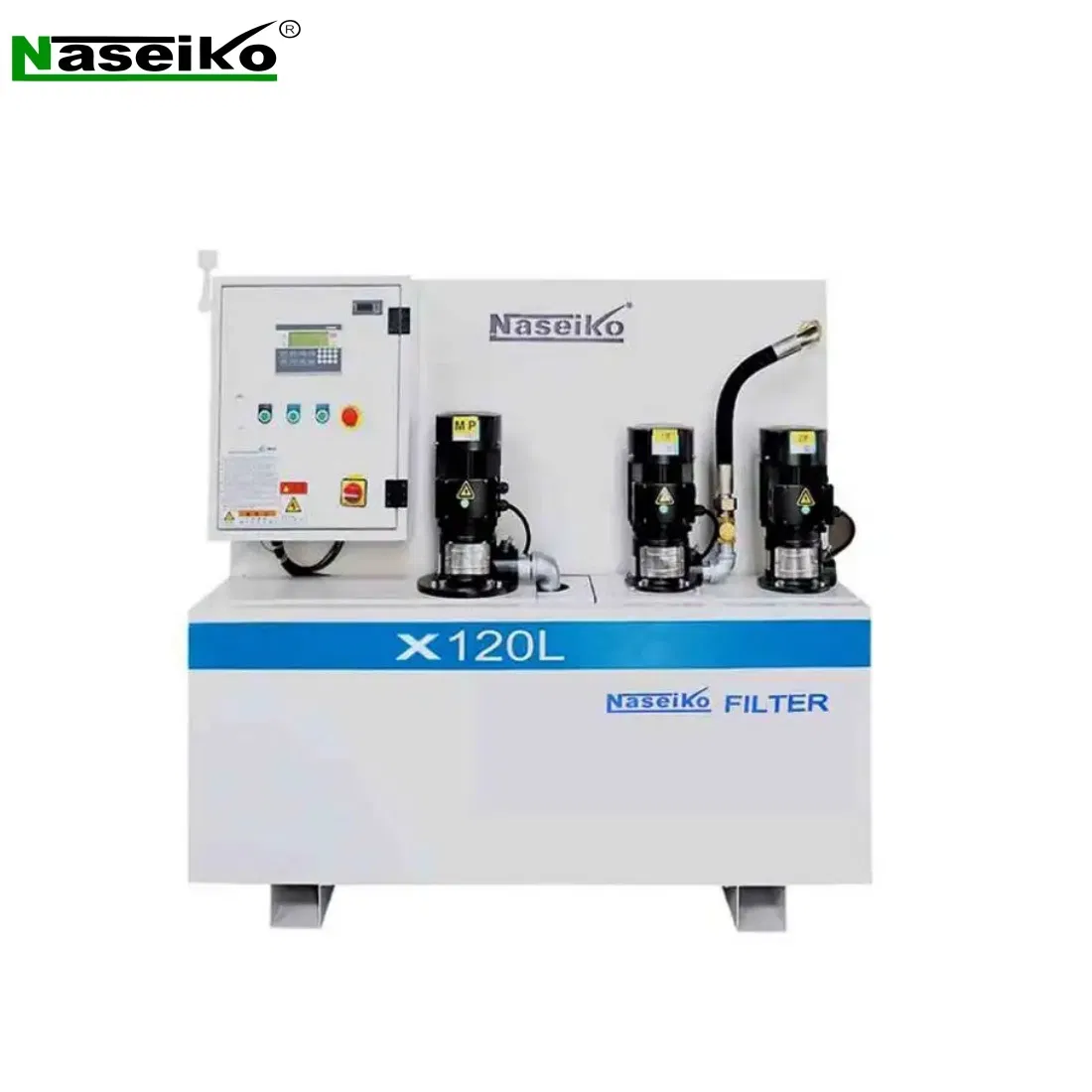

Industrial Coolant Filtration System for Precision Processing Support

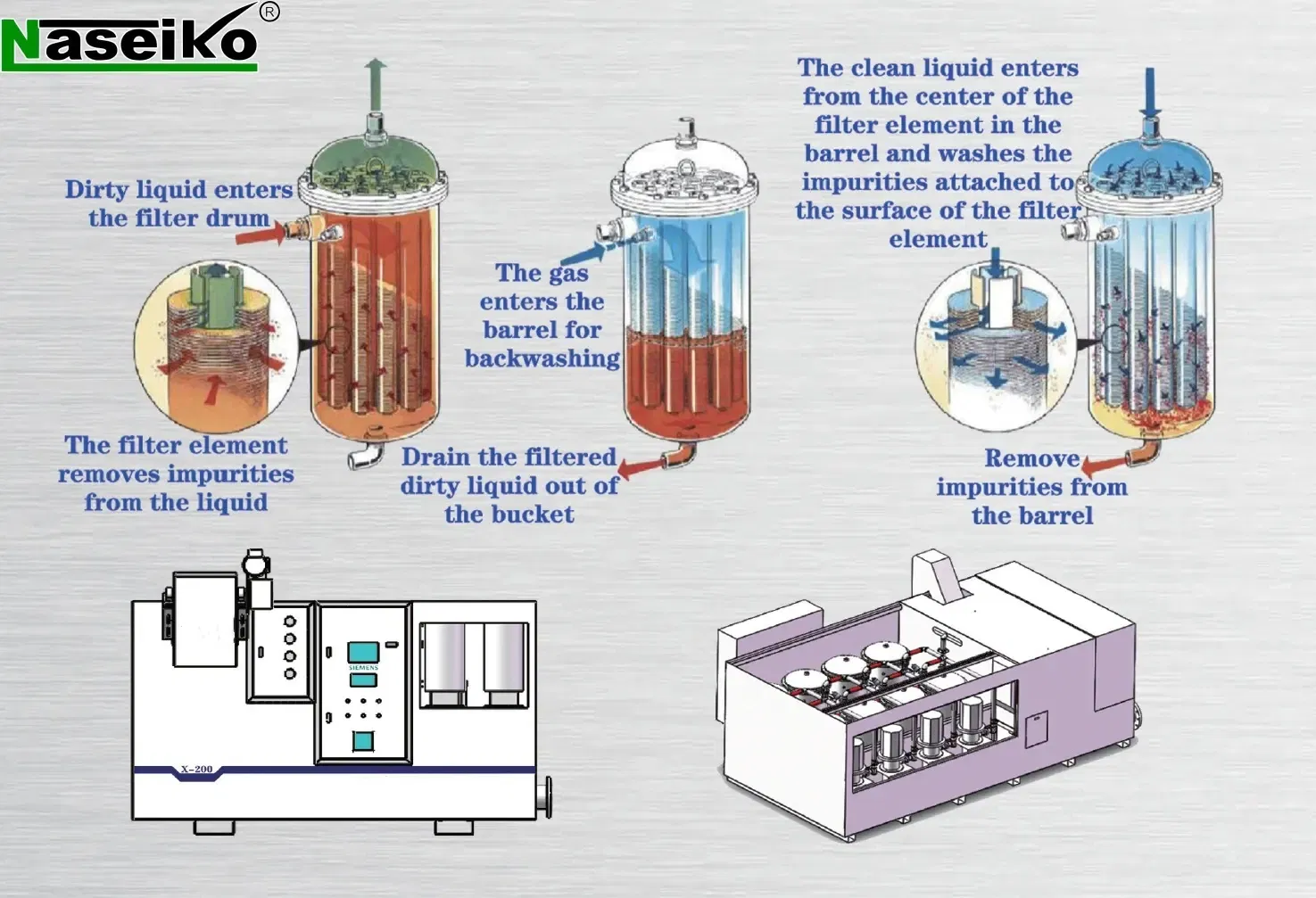

The filter system consists of several main components: filter tank, control box, filter pump, pipeline return pump, cooler, and scraper. NZ-X100L is specifically designed to filter powder impurities and grinding wheel ash generated during tool grinding. It separates oil and liquid, removing tungsten ash and grinding wheel ash via a high-precision waterproof and corrosion-resistant filter element.

✔
Efficiency: Ultra-long filter element service life with low operating costs.
✔
Performance: Reduces equipment maintenance costs and improves grinding machine efficiency.
✔
Automation: Automatic cleaning and slagging to maximize dirt powder recovery.
✔

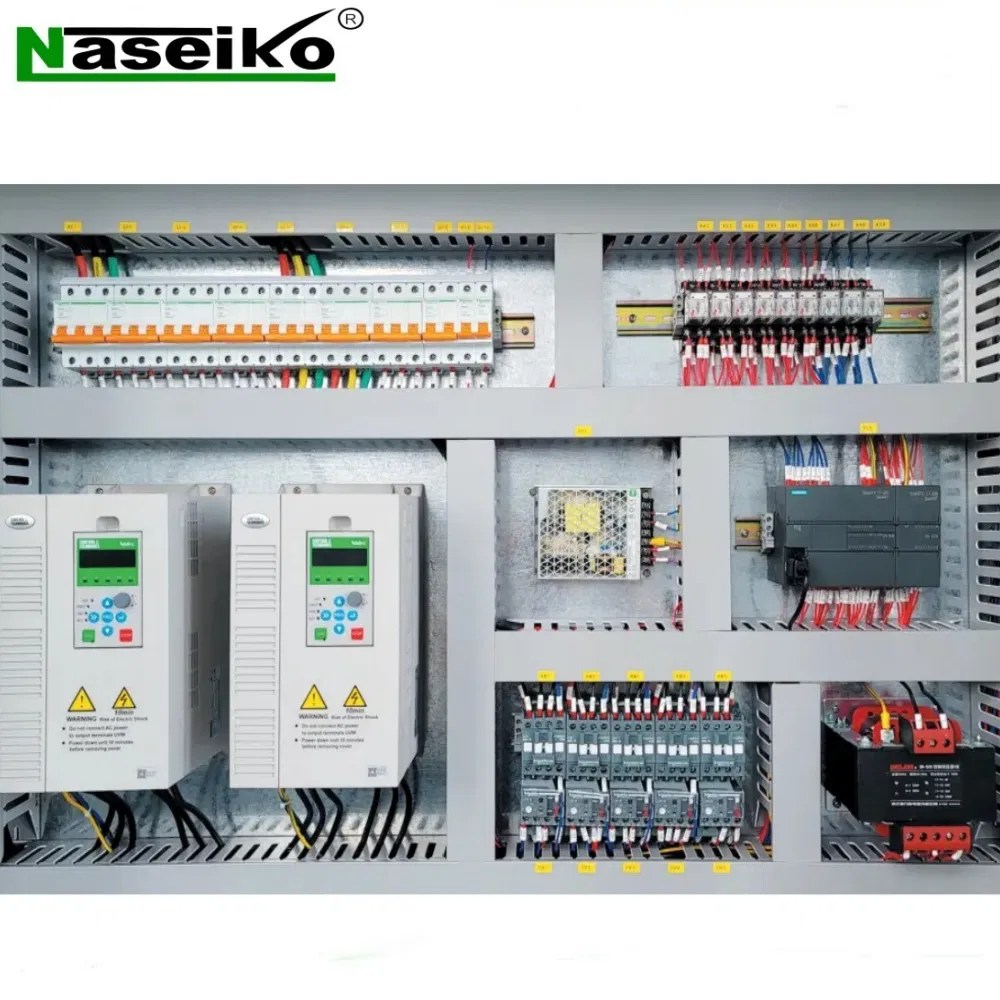

Control: PLC automatic control ensures a hands-free process.
✔
Precision: Cooling automatic control system ensures stable oil temperature for high precision workpieces.

Product Parameters

Item	Unit	NZ-X120L
Accuracy	um	1-3
Flow Rate	L/min	120±10%
Vessel	pcs	1
Voltage	V	380V 50HZ
Air Pressure	Mpa	0.6
Dimension	M	2.01.051.55
Chiller Power	kw	7
Grinder Support	pcs	1 by 1

Detailed Photos

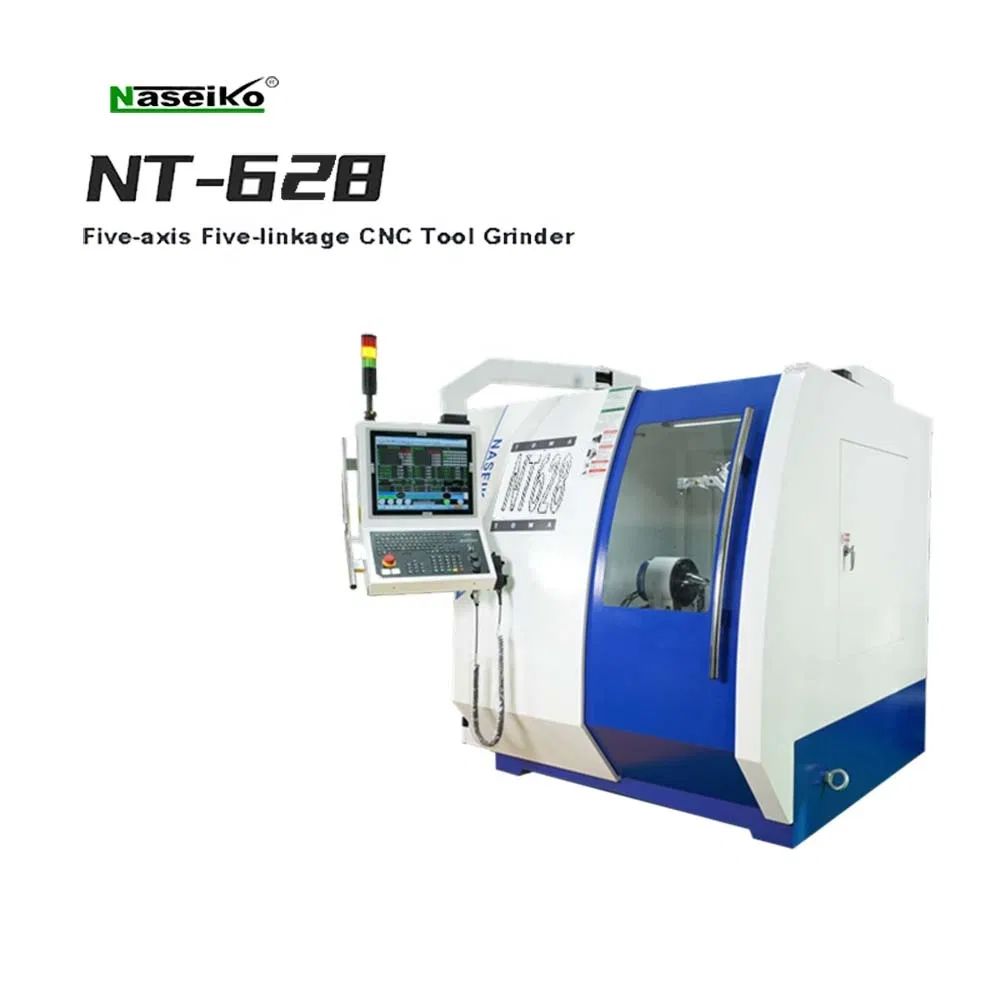

Related Hot Sales

Industry Solutions

Our company is a global leader in providing comprehensive solutions in the tungsten carbide industry, focusing on manufacturing high-quality tungsten carbide products and related sophisticated automatic machines. We are committed to delivering integrated solutions to meet the needs of worldwide customers.

Our extensive product line covers high precision CNC inserts, milling cutters, carbide burrs, and wear-resistant components. These products are manufactured using advanced techniques and premium hard alloy materials, ensuring exceptional hardness, toughness, and wear resistance.

Except supplying superior quality carbide products, we also provide a wide range of equipment specifically designed for tungsten carbide production, including high-precision electric servo pressing machines and multi-axis CNC grinding machines.
