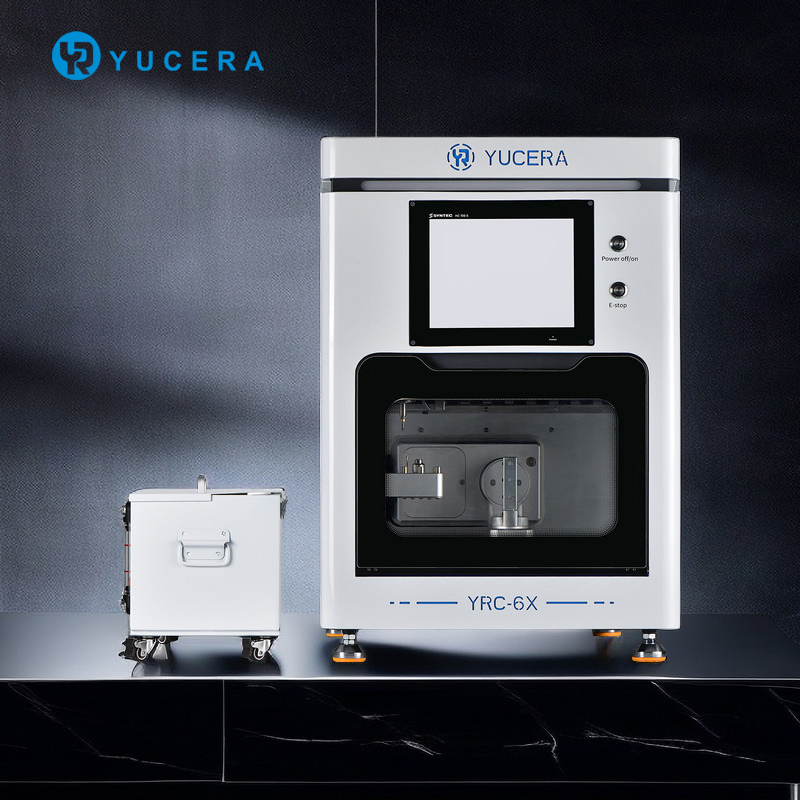

The Yrc Top Grade Yrc-6X Dental Lab Milling System

1 / 5

The Yrc Top Grade Yrc-6X Dental Lab Milling System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Technical Specifications
Model NO.	YRC-6X
Product Name	5 Axis Dental Wet Milling Machine
Material	Metal
Operating Angle	A-axis: 360°, B-axis: +20° to -90°
Total Power	1200W
Cutting Precision	0.01mm
Processing Type	Veneer/Inlay/Onlay/Crown/Abutments/3-unit Bridge
Cuttable Materials	Glass Ceramics, Titanium Pillars, Zirconia, PMMA
Main Axis Speed	0-60,000 rpm
Size	535655720mm

Product Description

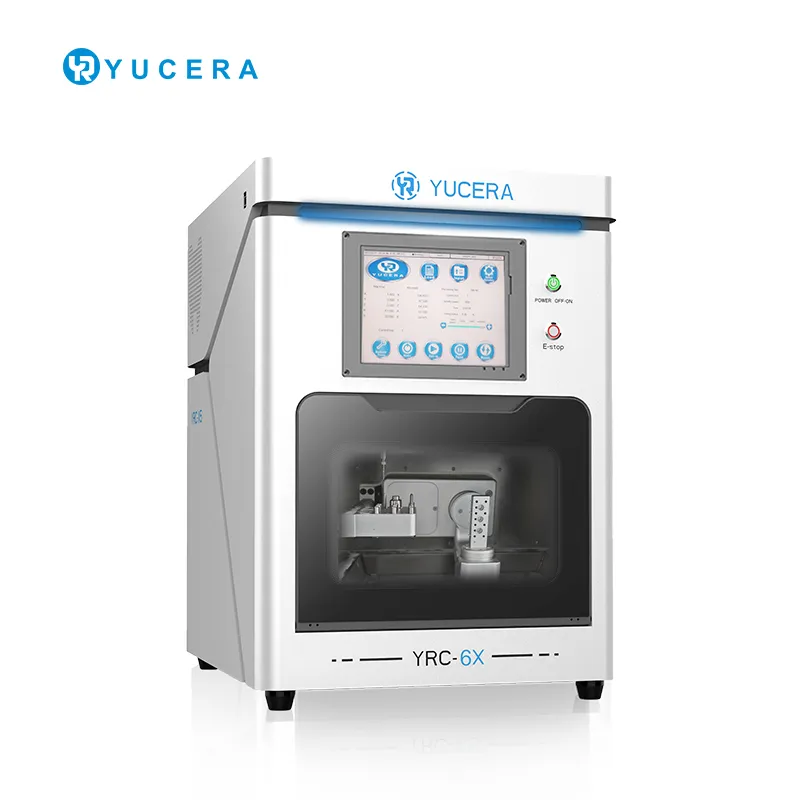

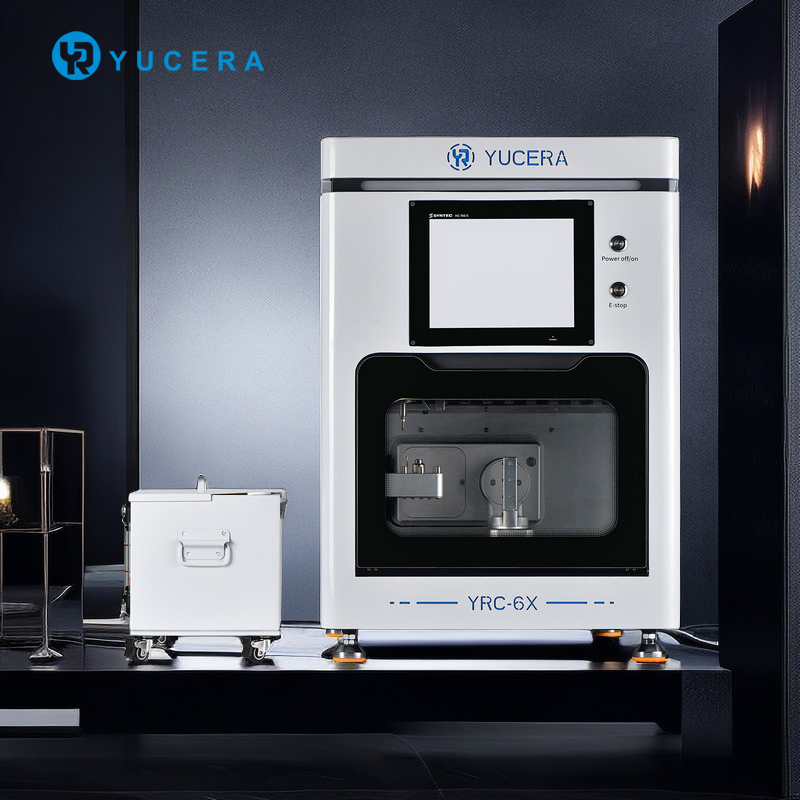

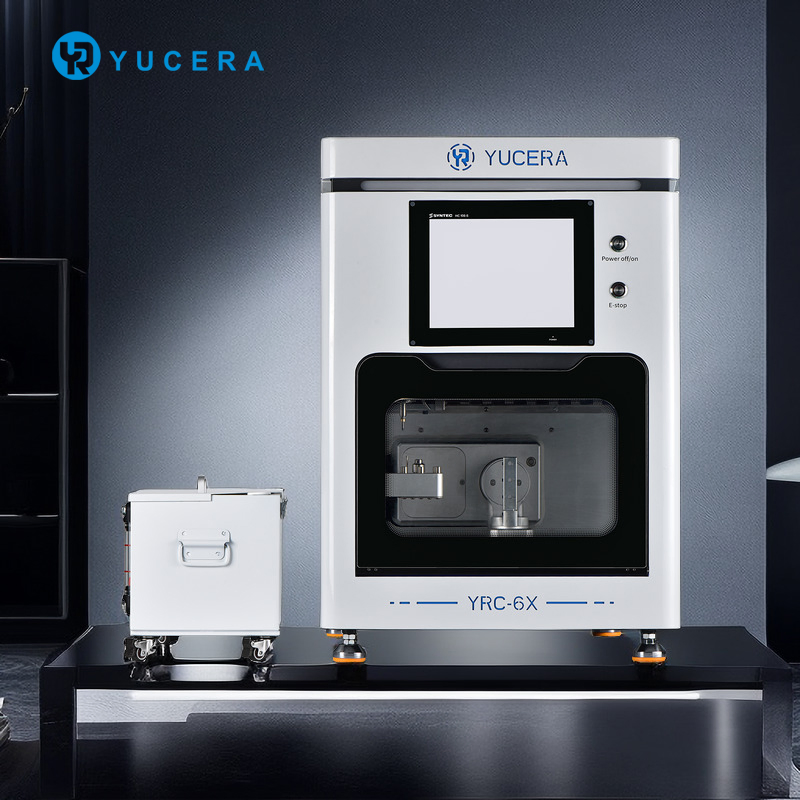

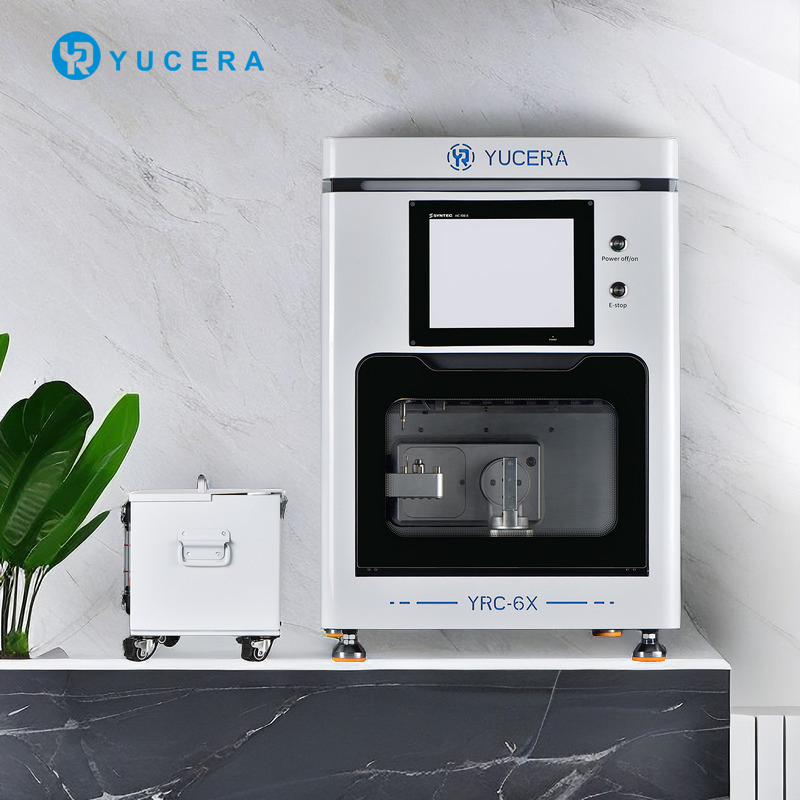

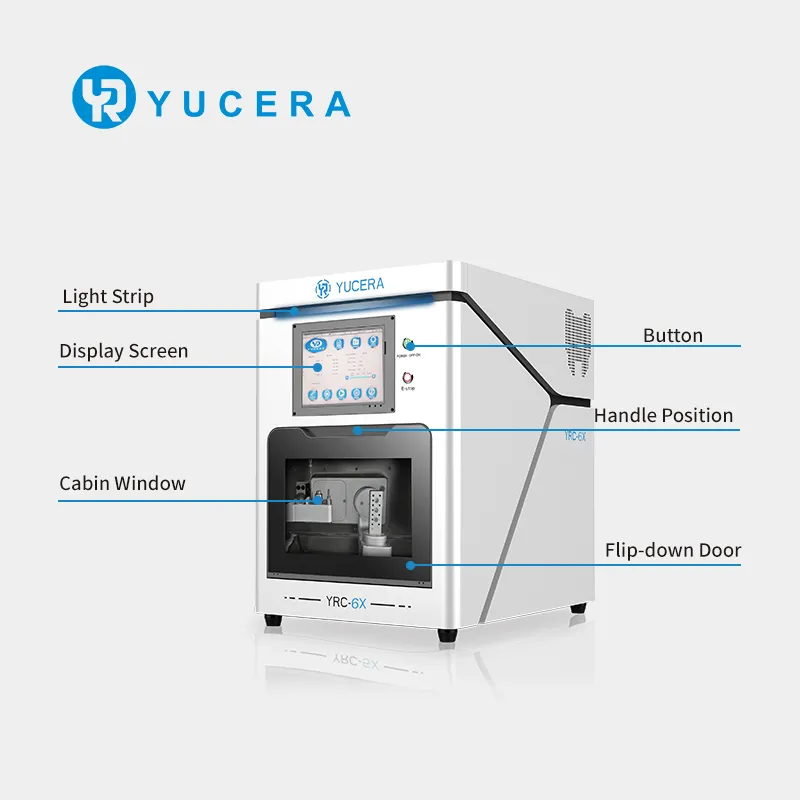

The YRC-6X is a high-precision, vertical 5-axis linkage wet milling machine. Its compact design features a built-in water tank and a specialized cooling and filtration system, making it an efficient space-saver for any dental lab. This open system is compatible with all major intraoral scanners and is capable of processing complex restorations, including inverted concaves and implant upper parts.

Key Advantages

⚙️

10-Tool Magazine

Equipped with a 10-tool automatic changer and B-axis rotation up to +35° to -91° for large-angle implant processing.

💧

Smart Monitoring

Integrated water level monitoring alerts users when cutting fluid is low, ensuring continuous and safe operation.

🔄

Resume Function

Automatically resumes from the last step after an interruption, preventing duplicated work and material waste.

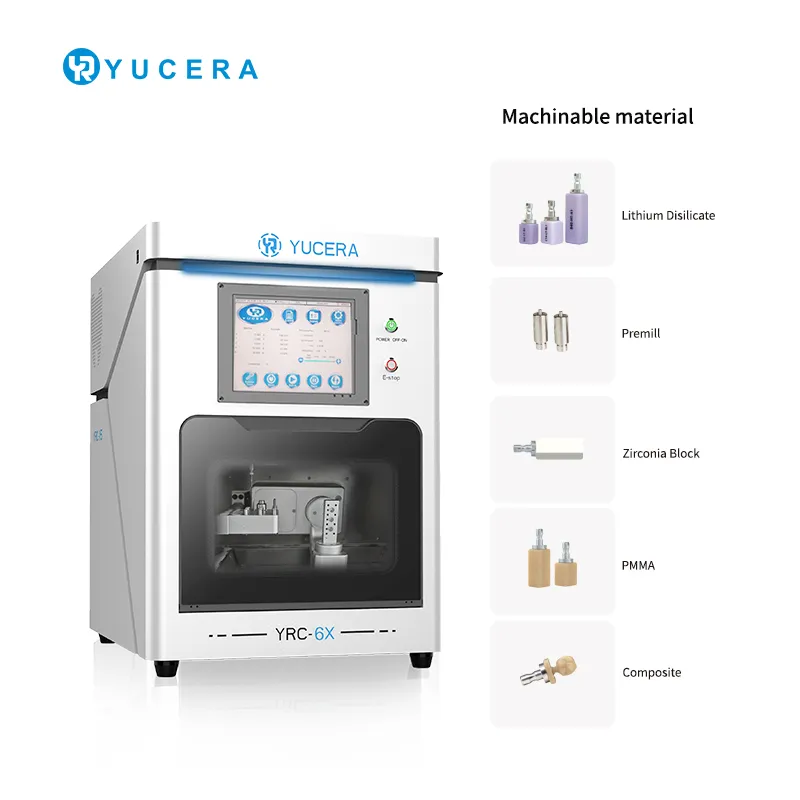

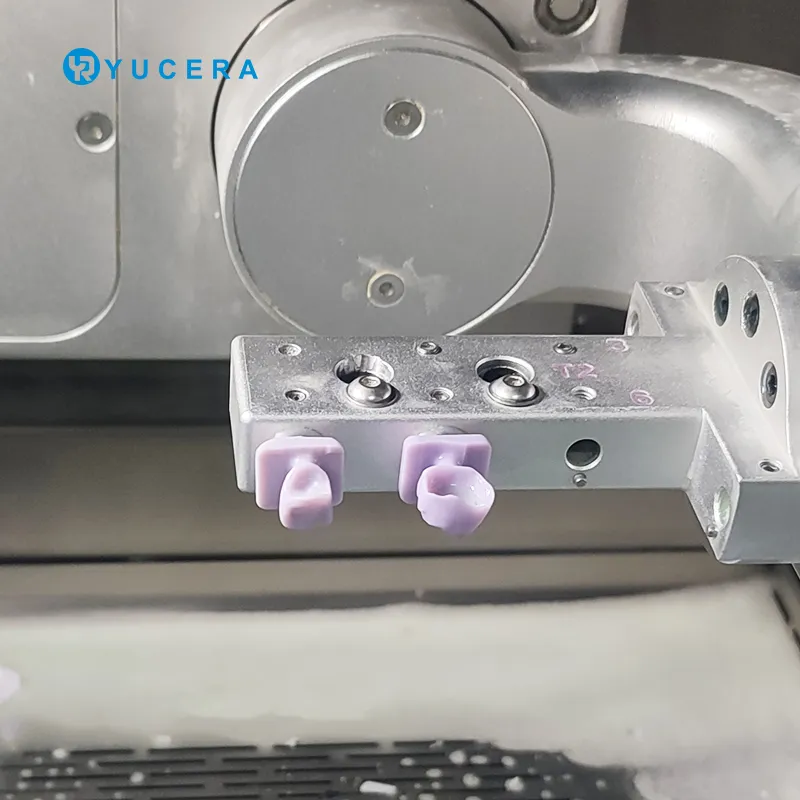

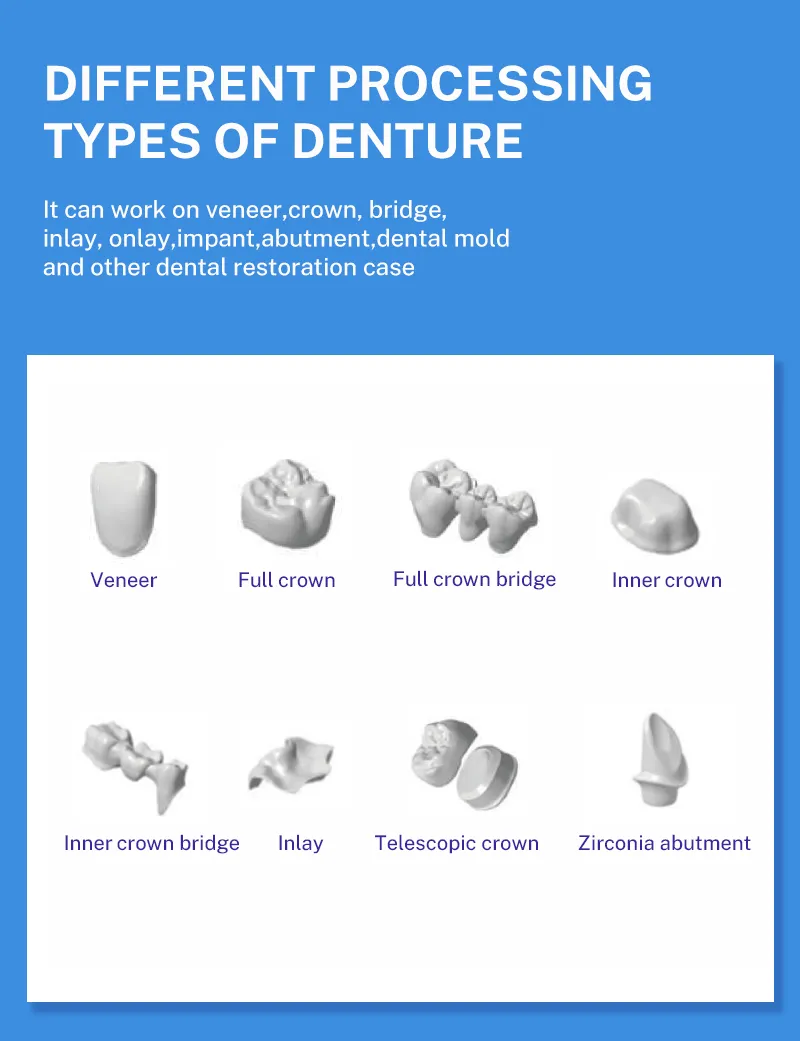

Machinable Materials & Denture Types

Designed for versatility, the YRC-6X handles glass ceramics, titanium columns, and composite materials with ease. It is the ideal solution for:

Veneers and Inlays
Full Crowns and Temporary Restorations
3-4 Unit Bridges (Zirconia/Resin)
Implant Upper Restorations

Technical Support & Service

Quality Control

Rigorous testing of all products before shipping to ensure peak performance.

After-Sales Guarantee

One-year free replacement of spare parts and lifetime technical after-sales service.

Expert Team

Our team includes mechanical engineers, software specialists, and dental technicians available 24/7.

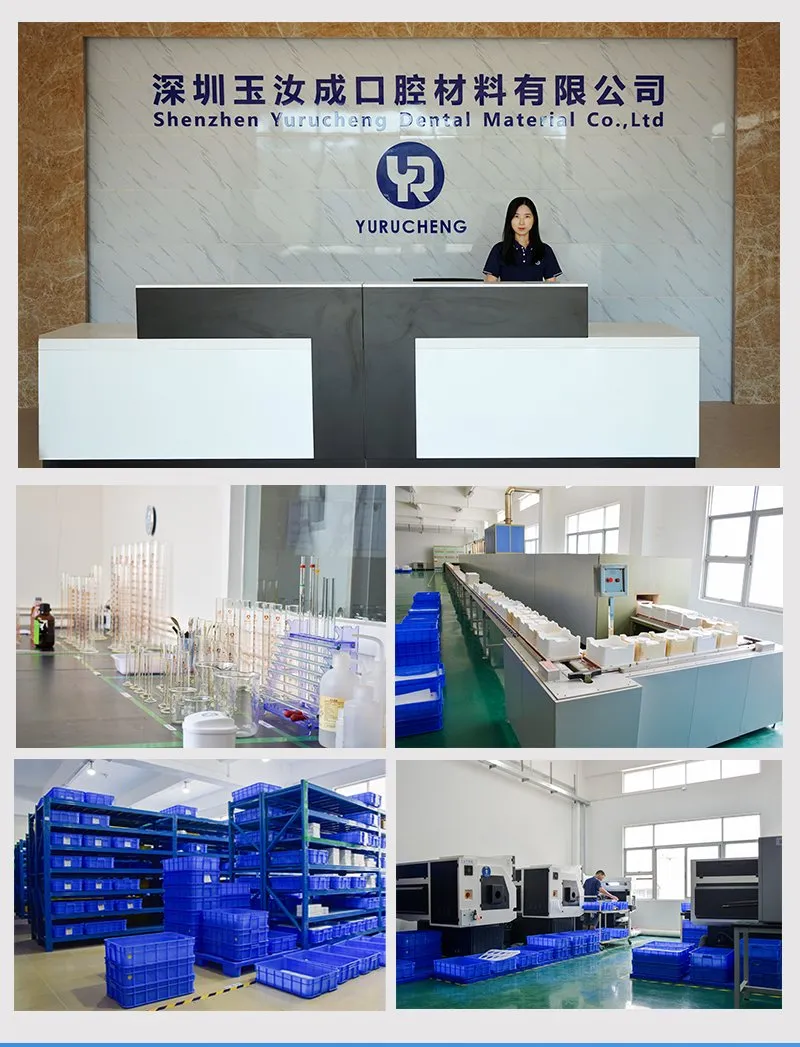

Certifications & Exhibition

Packaging & Shipping

We provide the best protection for your equipment using protective film, cushion plates, corrugated cartons, and export-standard wooden cases with anti-impact strips.

Shipping Options:

Air Express: DHL, FedEx, UPS (Approx. 7 business days).
Maritime Transport: Safe delivery for large orders (Approx. 30 days).

Frequently Asked Questions

1. What materials can the YRC-6X mill? The YRC-6X is specifically designed for wet milling glass ceramics, titanium columns, and various composite materials.

2. What is the milling accuracy of this machine? The machine offers a high cutting precision of 0.01mm, ensuring perfect fit and quality for dental restorations.

3. Does it support automatic tool changes? Yes, it features a 10-tool magazine that allows for efficient, automated processing of various denture types.

4. Can it process complex implant cases? Absolutely. With a 5-axis linkage and a B-axis rotation up to -91 degrees, it can handle large-angle implants and inverted concave structures.

5. What happens if there is a power or process interruption? The YRC-6X includes a "Resume when interrupted" function, which automatically picks up from the last step, saving time and materials.

6. Is technical support available for international users? Yes, we provide 24/7 online technical support with a team of mechanical engineers and dental technicians ready to assist globally.
