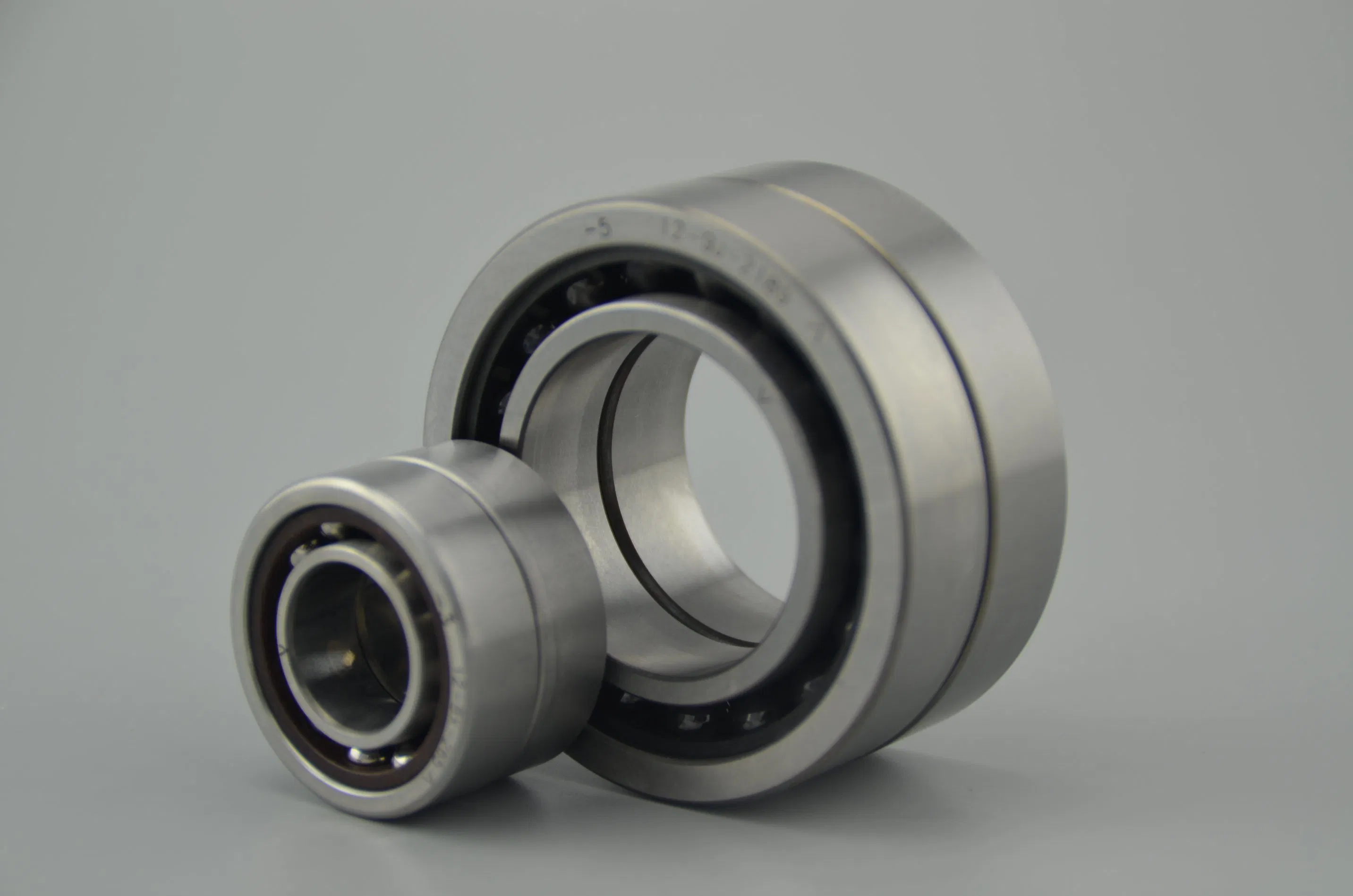

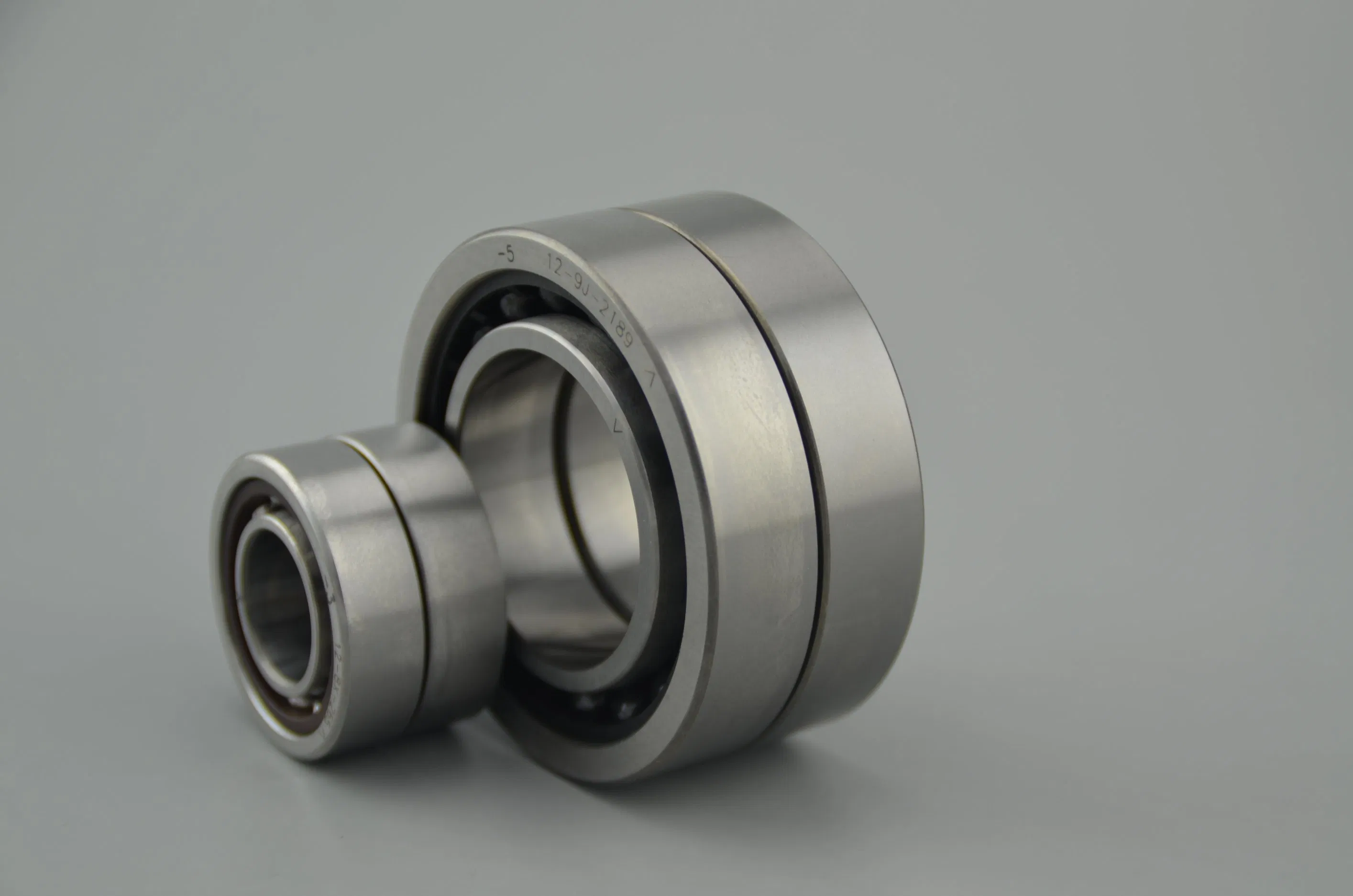

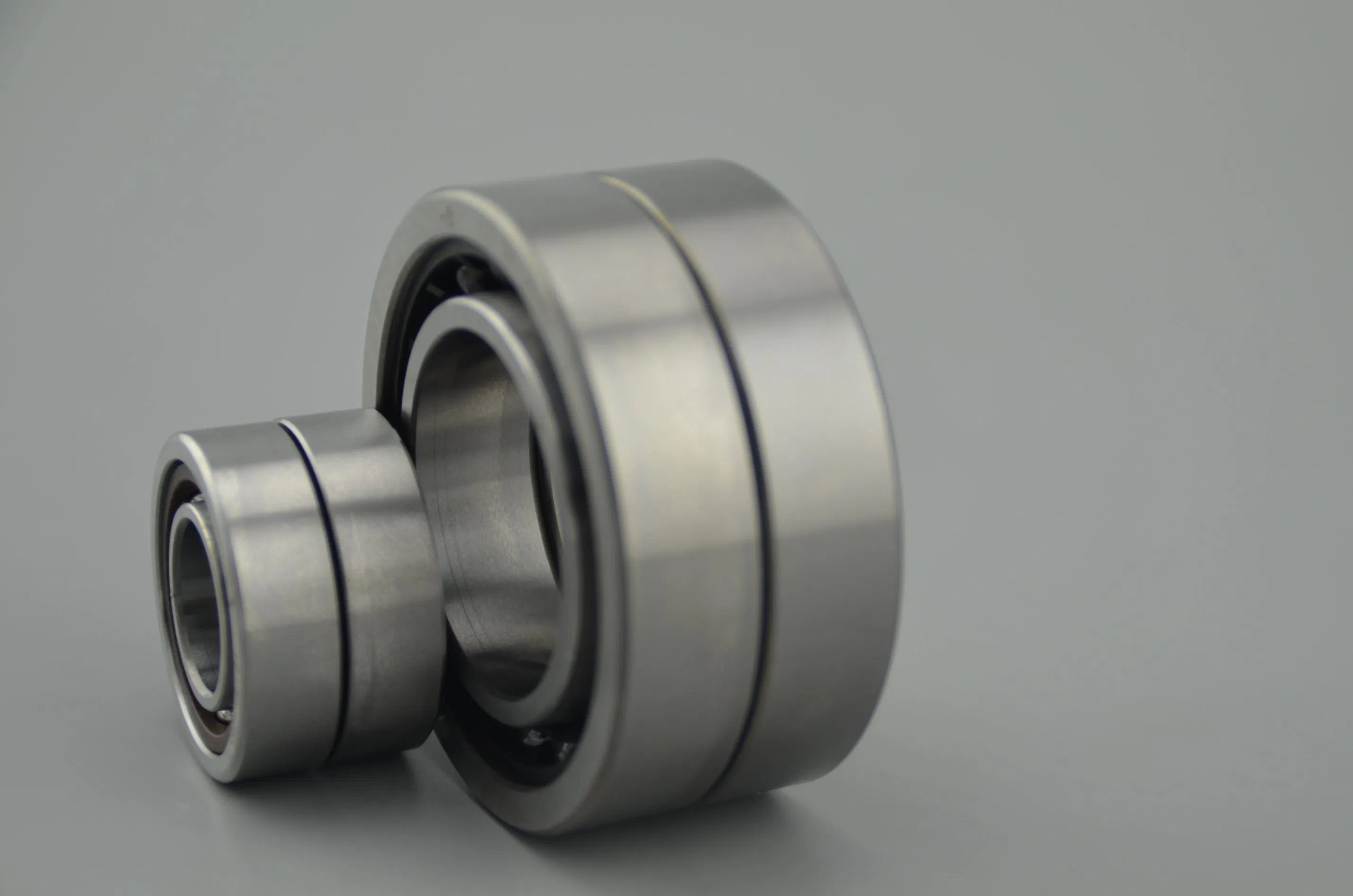

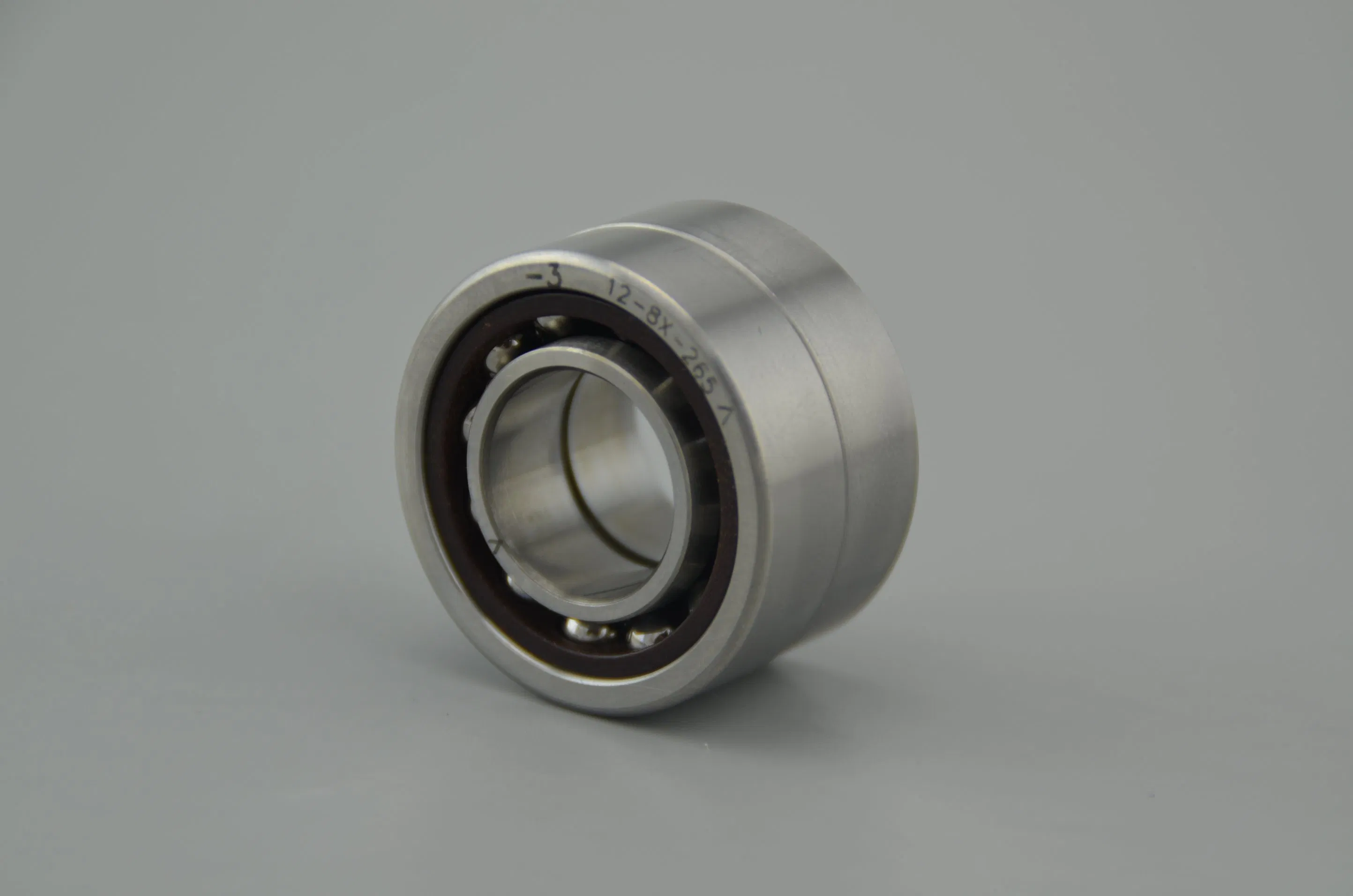

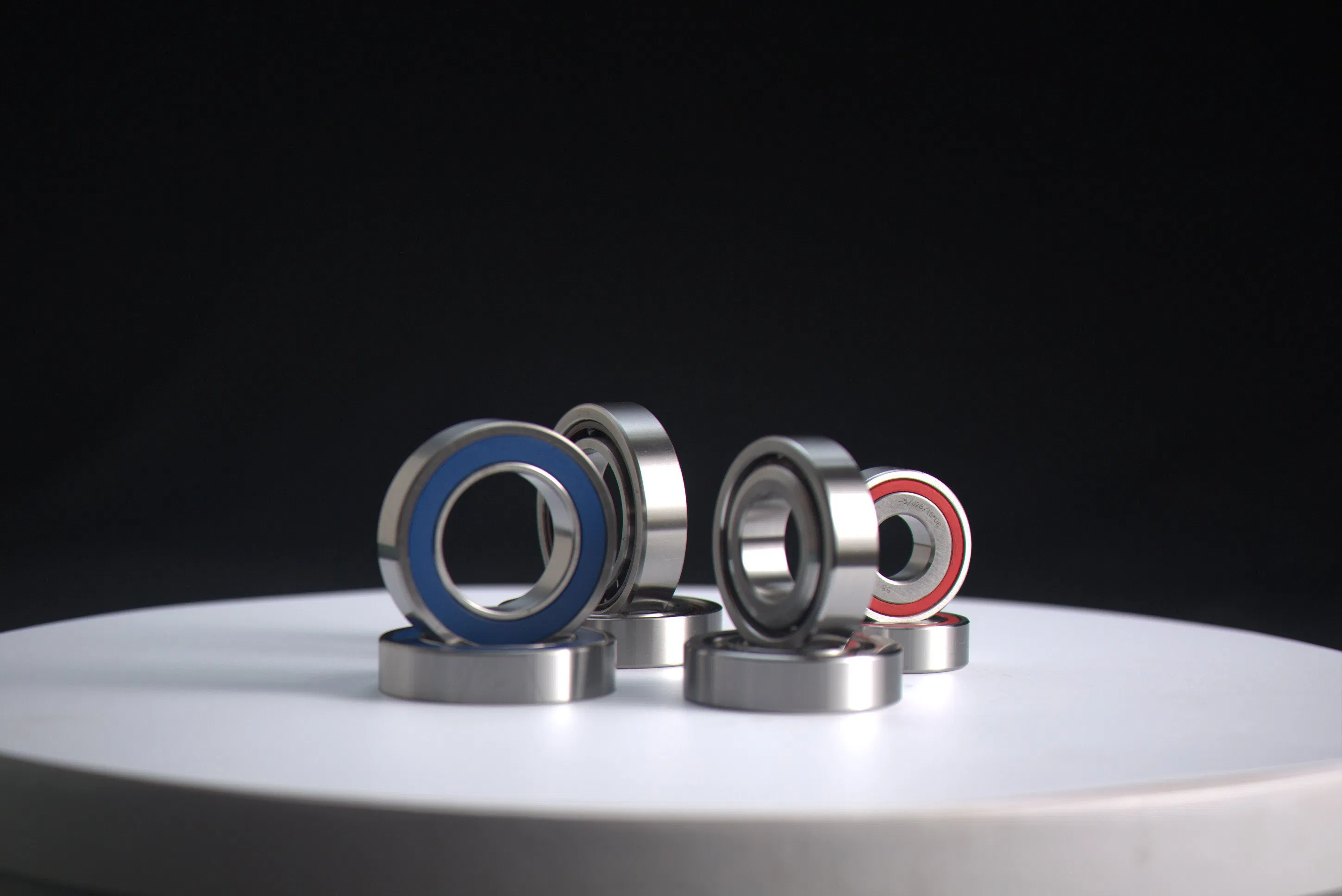

Zys Machine Part Single Row Angular Contact Ball Bearings for Machine Tool Spindle and High Frequency Motor

1 / 5

Zys Machine Part Single Row Angular Contact Ball Bearings for Machine Tool Spindle and High Frequency Motor

Customization:	Available
Contact Angle:	15°
Aligning:	Non-Aligning Bearing

Send Inquiry

Product Description

📊

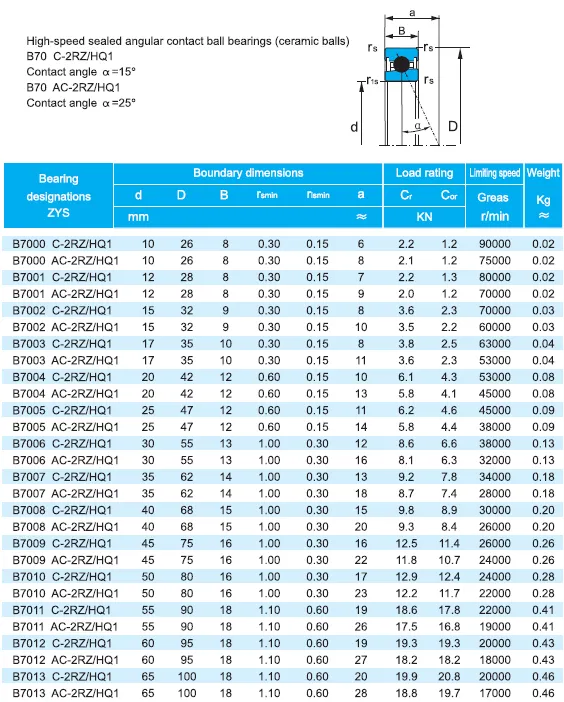

Basic Specifications

Model NO.

B7007/B7008/B7009C-2RZHQ1P4A

Product

Angular Contact Ball Bearing

Material

Bearing Steel Gcr15

Precision Rating

ABEC-1 to ABEC-9

Load Direction

Radial and Thrust

Number of Rows

Single

Seals Type

Open, Z, ZZ, RS, 2RS

Limiting Speed

34000 (Grease) / 53000 (Oil)

Weight

0.11kg

Production

40000/Month

🛠️

Product Overview

Single Row Angular Contact Ball Bearings for Machine Tool Spindle and High Frequency Motor

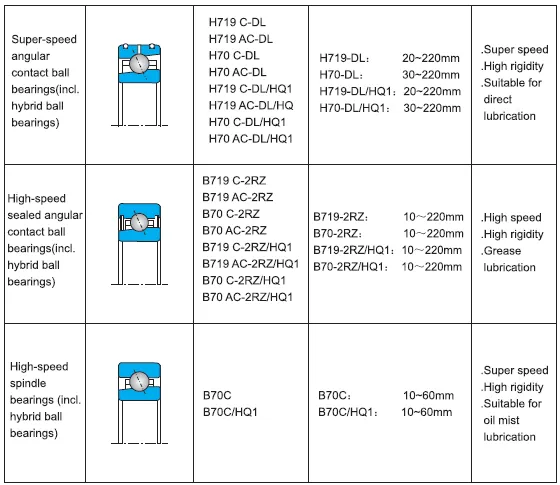

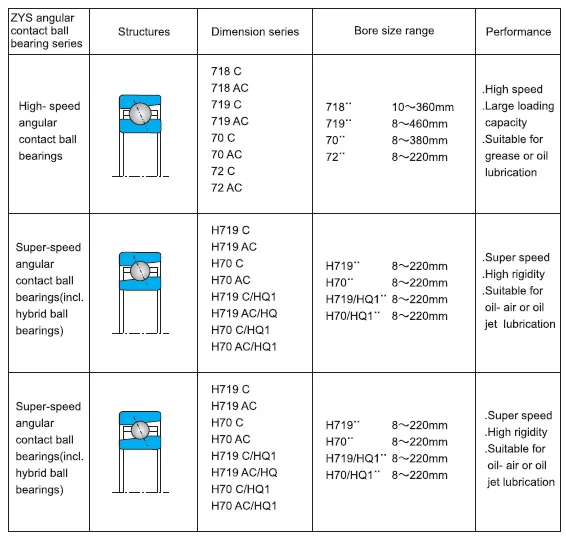

Precision angular contact ball bearings include high-speed angular contact bearings (standard series), super-speed angular contact ball bearings, high-speed sealed angular contact ball bearings, and high-speed spindle bearings.

⭐

Our Advantages

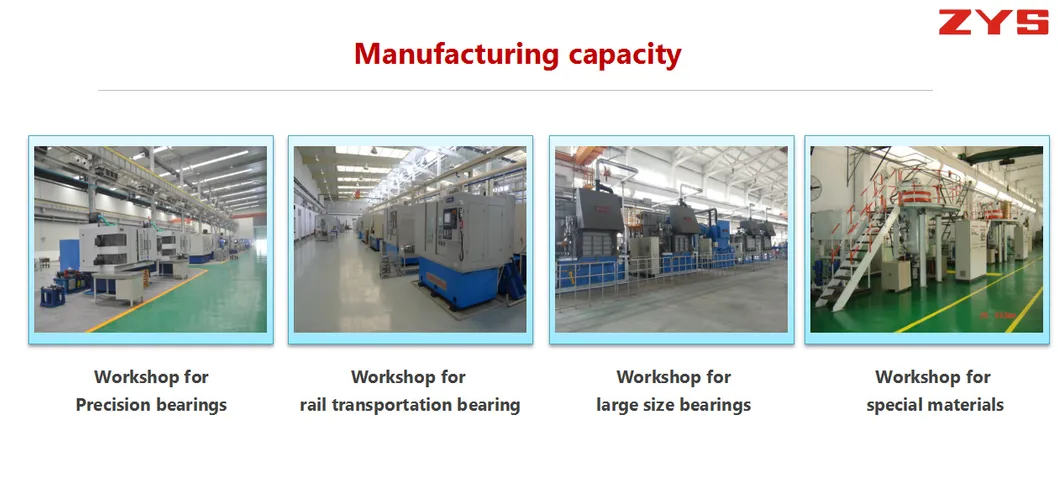

Equipped with advanced manufacturing and world first-class testing equipment, we maintain a leading position in bearing design, basic theoretical research, lubrication technology, and industry standards. Our products ensure high precision and high reliability for demanding industrial applications.

🏆

Professional Recognition

Top 200 most promising companies of China in Forbes
Top 500 in China Machinery Industry
High-performance Bearings Laboratory Certification
State Quality Supervision and Testing Center for Bearing
ISO/TC4 China Secretariat
Research Center for High-speed Precision Bearing Engineering

📦

Other Hot Sale Products

PRODUCT CATEGORIES
High precision angular contact ball bearing	Precision spindle bearing
Hybrid ceramic bearing	Slewing bearing
Cylindrical roller bearing	Needle roller bearing
Taper roller bearing	Precision lathe bearing
Bearing measuring instrument	YRT rotary table bearing
High-frequency spindles	Dental drill bearing
Bearing ball	Bearing making machine
Material: GCr15, 9Cr18, G20CrMo or others
Certificates: ISO9001:2000, GJB/Z9001A-2001, GJB9001A-2001

❓

Frequently Asked Questions

What are the main applications for these angular contact ball bearings?

They are primarily designed for machine tool spindles, high-frequency motors, gas turbines, centrifugal separators, and other equipment requiring high-speed rotation and precise load handling.

What is the advantage of using Bearing Steel Gcr15?

GCr15 chrome steel offers excellent wear resistance, high hardness, and great fatigue strength, ensuring a long service life under heavy radial and thrust loads.

How do I choose between grease and oil lubrication?

Grease is ideal for standard high-speed applications (up to 34,000 RPM) with lower maintenance, while oil lubrication allows for even higher speeds (up to 53,000 RPM) and better heat dissipation.

Do you support different precision ratings?

Yes, we provide various precision levels including ABEC-1, ABEC-3, ABEC-5, ABEC-7, and ABEC-9 to meet different accuracy requirements for industrial machinery.

What seal types are available for these bearings?

We offer multiple options including Open (no seals), Z (single metal shield), ZZ (double metal shields), RS (single rubber seal), and 2RS (double rubber seals) to protect against dust and contaminants.

Can these bearings handle combined loads?

Yes, angular contact ball bearings are specifically designed to support combined radial and axial (thrust) loads simultaneously.
