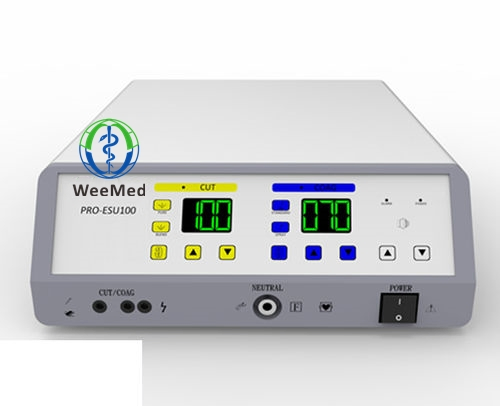

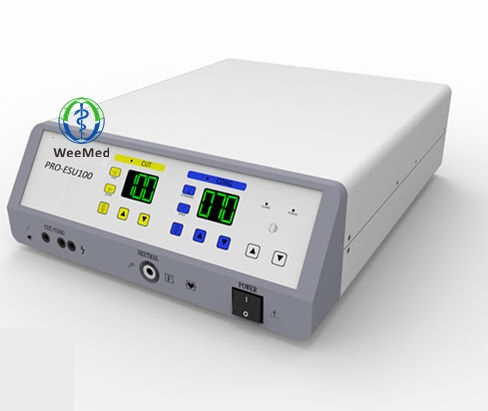

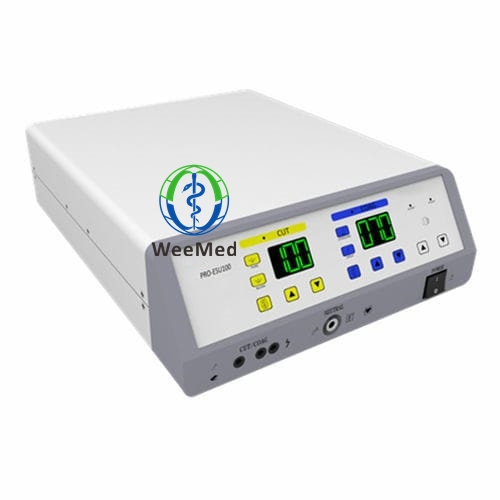

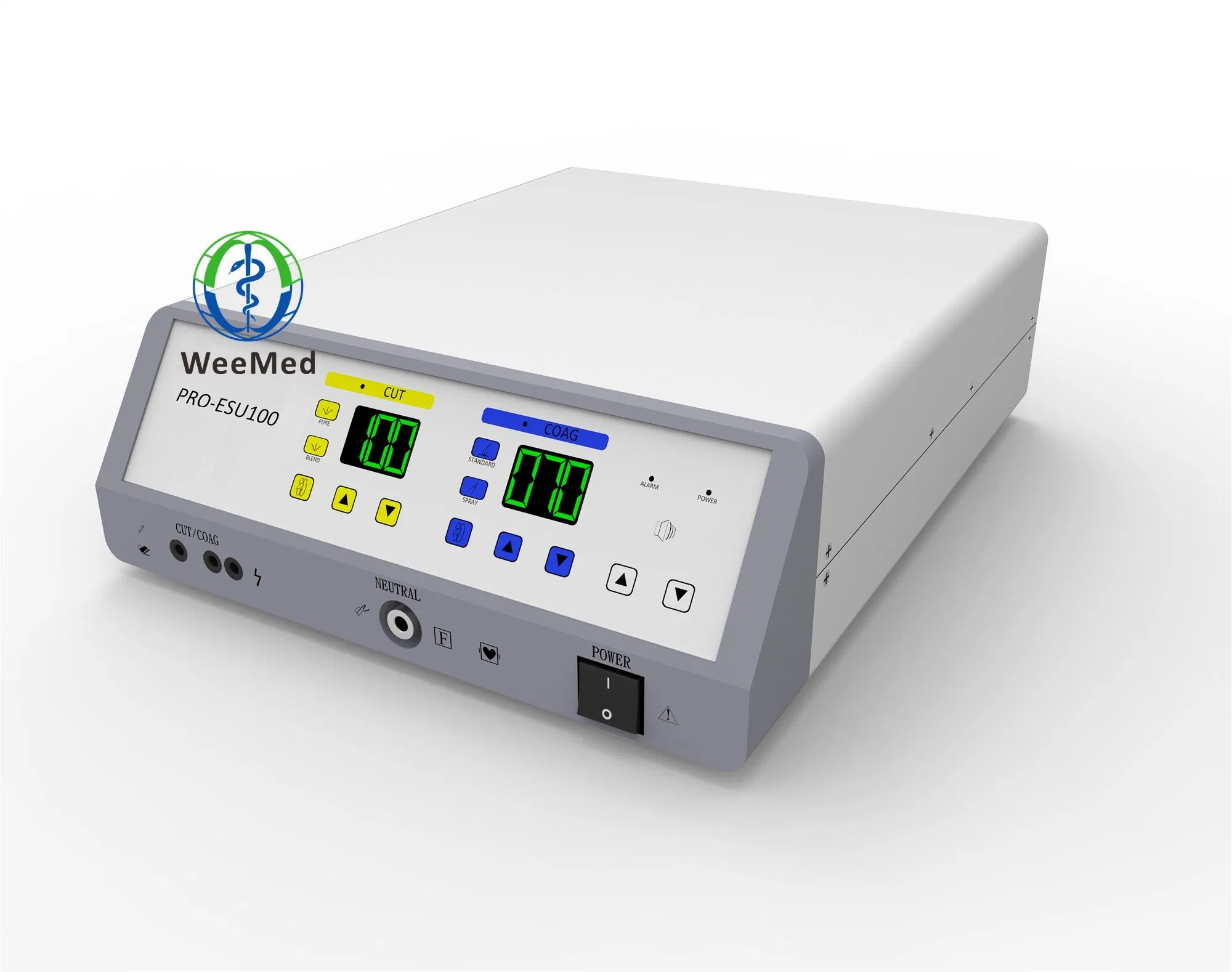

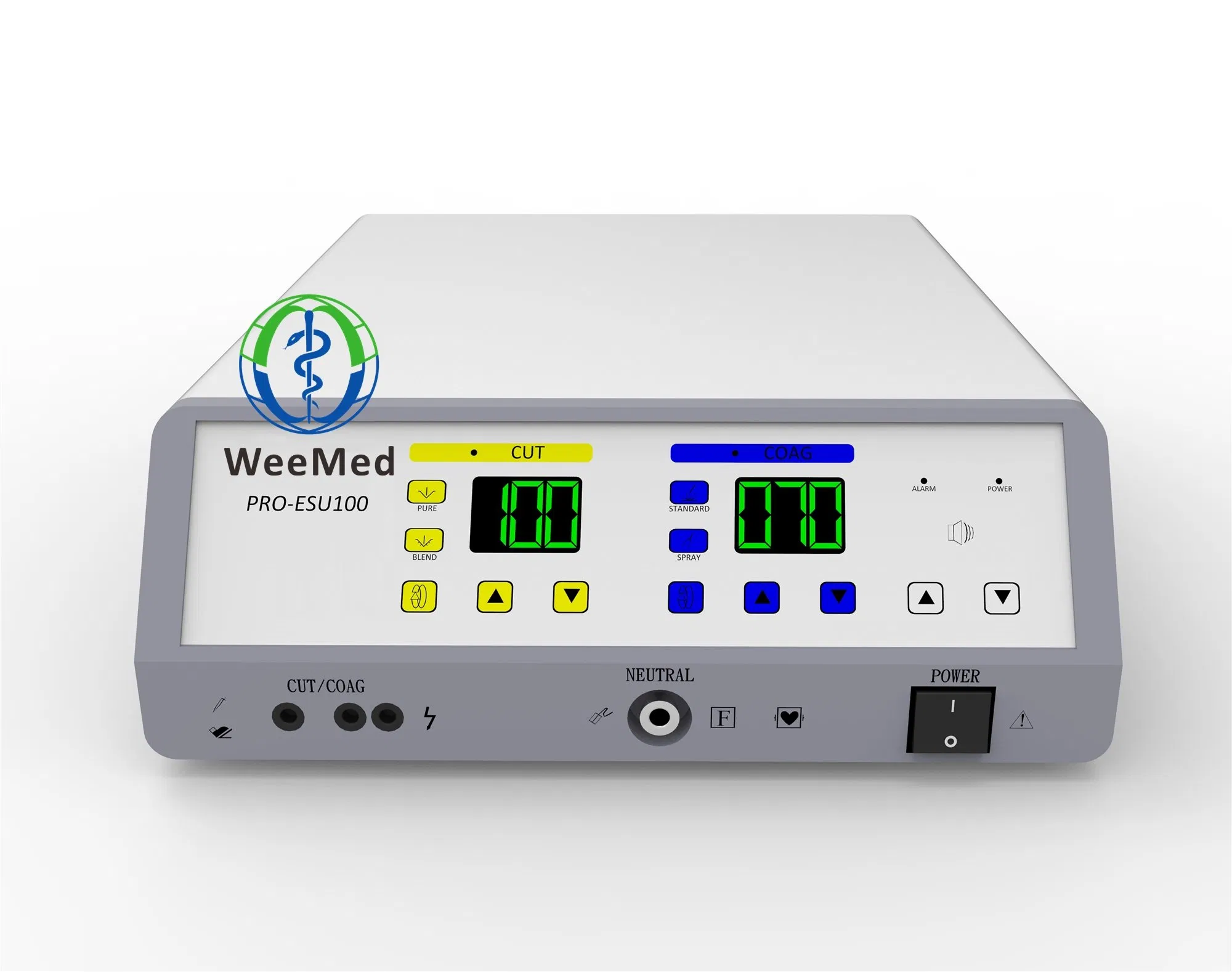

100W Monopolar Dental Cautery Diathermy Machine Portable Veterinary Electrosurgical Unit

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications
Model NO.: WMESU-100
Origin: China
Production Capacity: 500,000 PCS/Year
Product Description

Main Features

  • Excellent monopolar cautery machine with smart & light design
  • Max 4 working modes: Pure Cut / Blend Cut / Standard Coag / Spray Coag
  • Return electrode monitoring system to avoid any burnt and damage for patient
  • Clear working modes indication and easy power control
  • 5 seconds Auto Inspection after turn on, ensure that the machine works fine
  • Minimal sticking & carbonization, reduce the surgery damage
  • Different & adjustable operation sounds in case of misoperation
  • OEM projects welcome
Work Modes & Parameters
Type Mode Frequency Rated Power
Monopole Pure 1.843MHz 0-120W/300Ω
Blend 1.843MHz 0-100W/300Ω
Hemo 1.843MHz 0-90W/300Ω
Fulgurate 1.843MHz 0-80W/300Ω
Bipolar Bipolar 1.00MHz 0-120W/100Ω
Standard Accessories List
Name Quantity
Reusable patient plate cable; Disposable Adult grounding pad 1 pc / 5 pcs
Foot Switch; Electrosurgical Pencil (push button & foot switch) 1 pc each
Electrode Set (Needle, Blade Standard/Extended, Ball Φ5mm) 1 pc each
Fuse; Cable of power supply; User Manual 2 pcs / 1 pc / 1 pc
Technical Specification
Height16.5cm (6.5 in.) Width39.5cm (14.4 in.)
Depth43.7cm (17.2 in.) Weight<8.2Kg (<18 Ibs)
Gain Steps5W increment Input Power110V/220V, 50/60Hz±10%

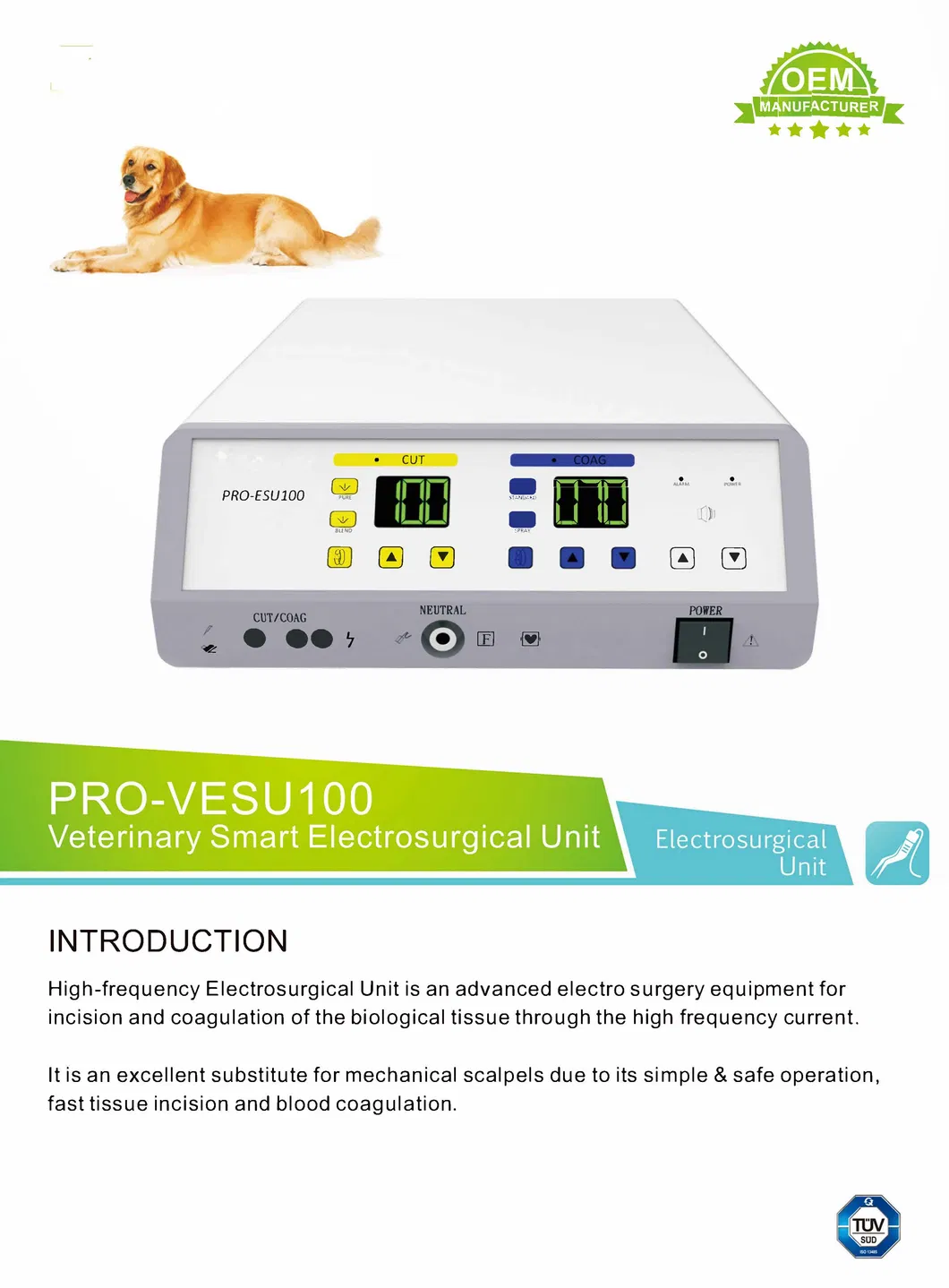

Product Layout

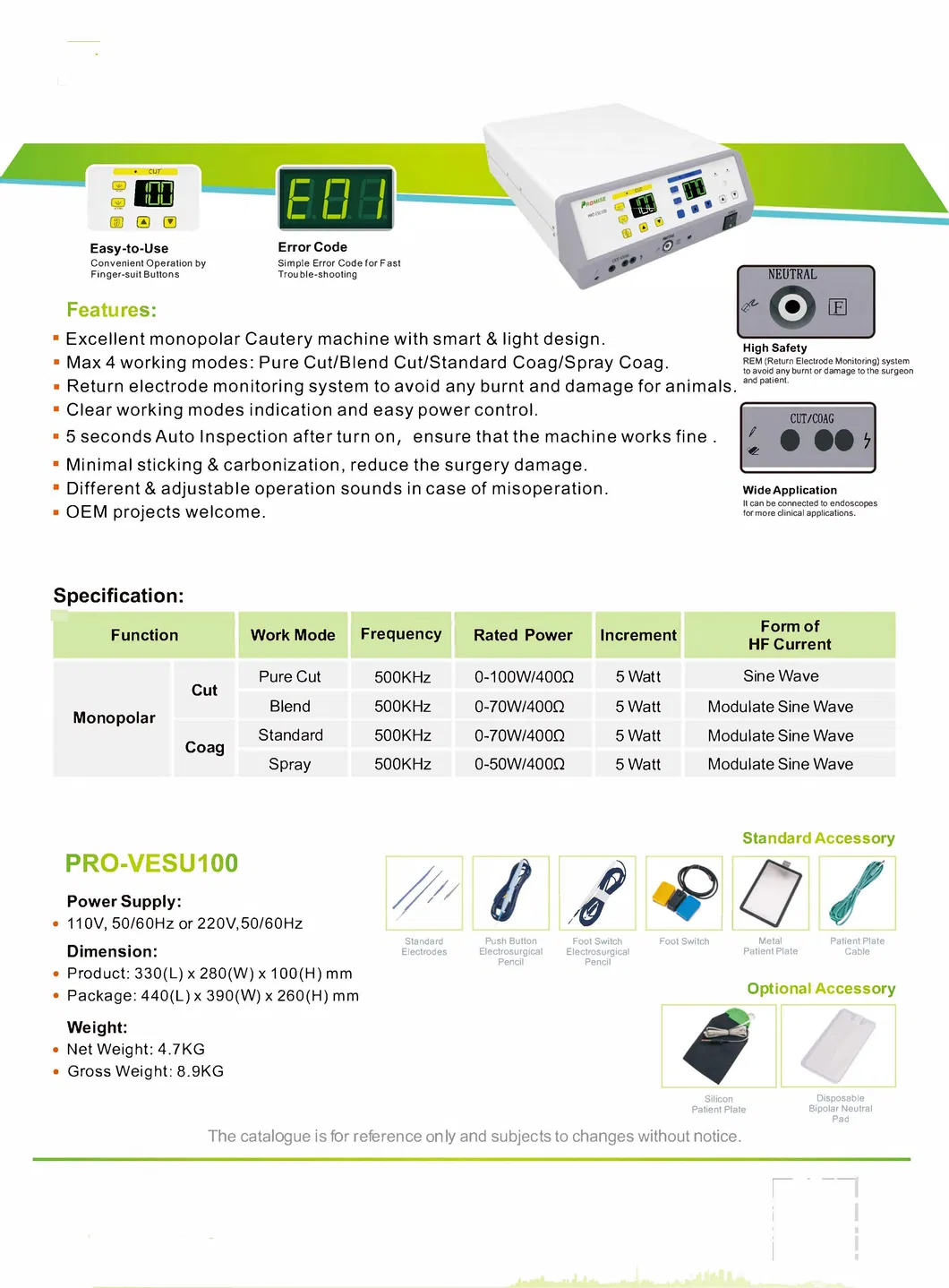

Interface Details

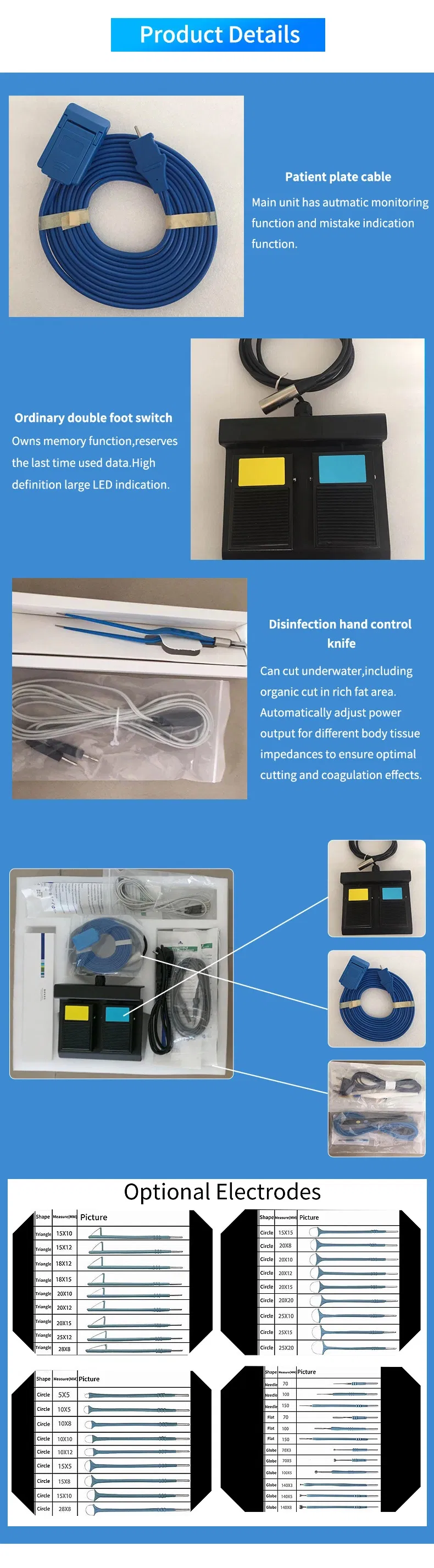

Internal Components
Application & Quality Assurance

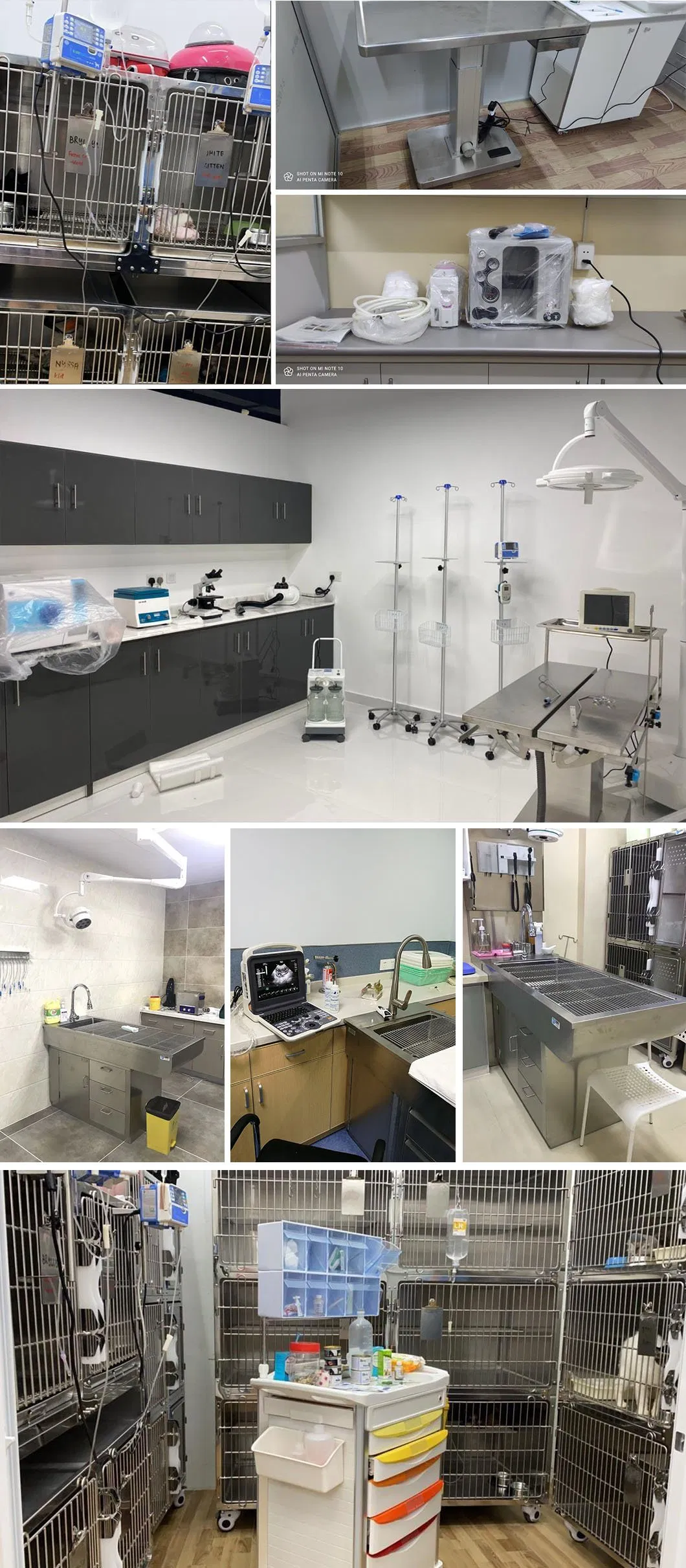

Clinical Application
Professional Certificates
Certification Showcase

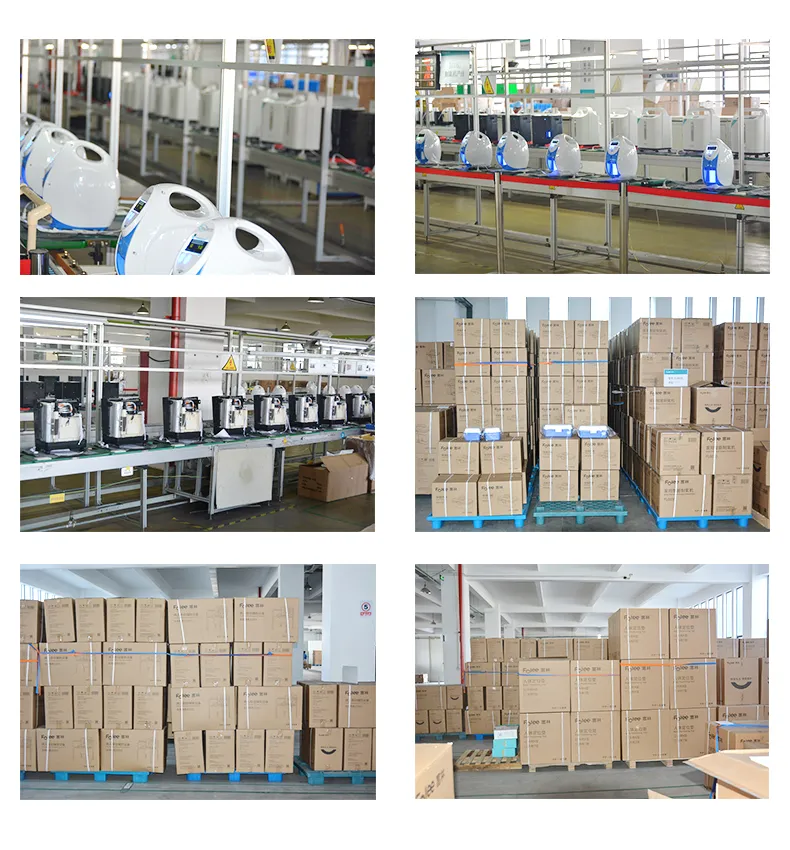

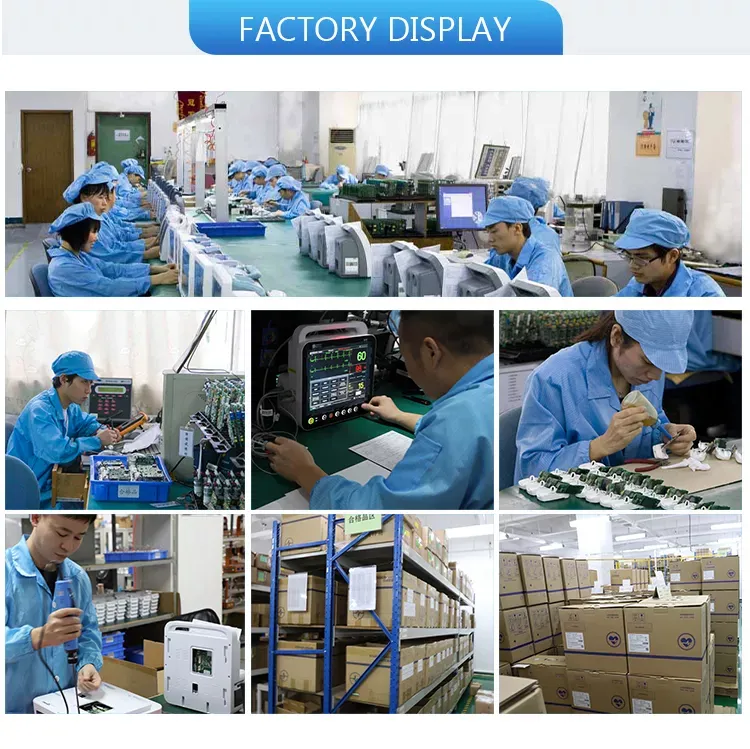

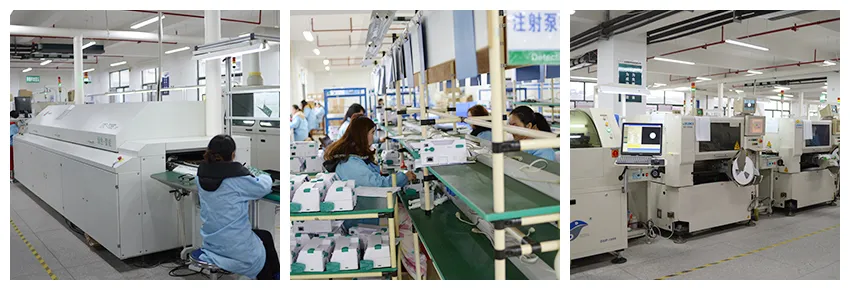

Production & Global Presence
Global Exhibitions
Customer Feedback
Feedback Review 1

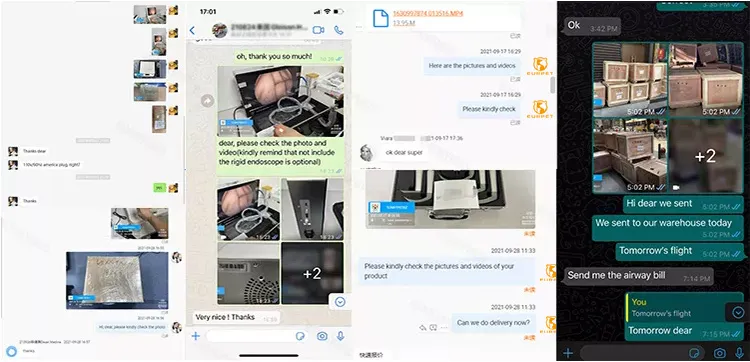

Feedback Review 2
Related Products
Frequently Asked Questions
Q1: What are the primary working modes of the WMESU-100? A: The machine features 4 main monopolar modes: Pure Cut, Blend Cut, Standard Coag, and Spray Coag, along with a dedicated Bipolar mode.
Q2: How does the safety monitoring system work? A: It includes a return electrode monitoring system that prevents patient burns and damage, along with a 5-second auto-inspection upon startup to ensure operational safety.
Q3: Is this electrosurgical unit portable? A: Yes, it features a smart and light design, weighing less than 8.2kg, making it highly portable for various clinical settings.
Q4: Can the power settings be adjusted precisely? A: Yes, the unit allows for power control with 5W gain increments, ensuring precise adjustment for different surgical requirements.
Q5: Is it compatible with international power standards? A: The input power is adjustable based on local supplies, supporting both 110V and 220V at 50/60Hz.
