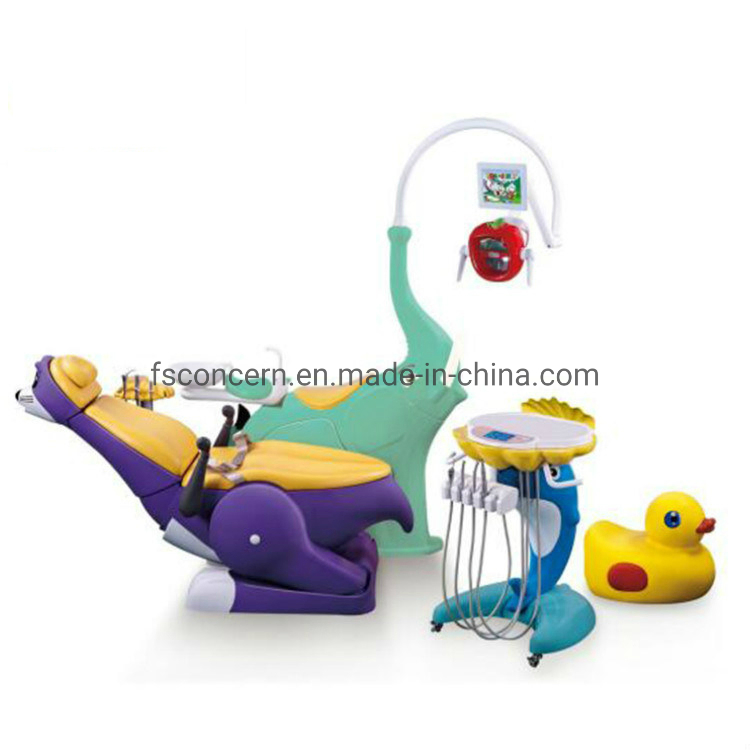

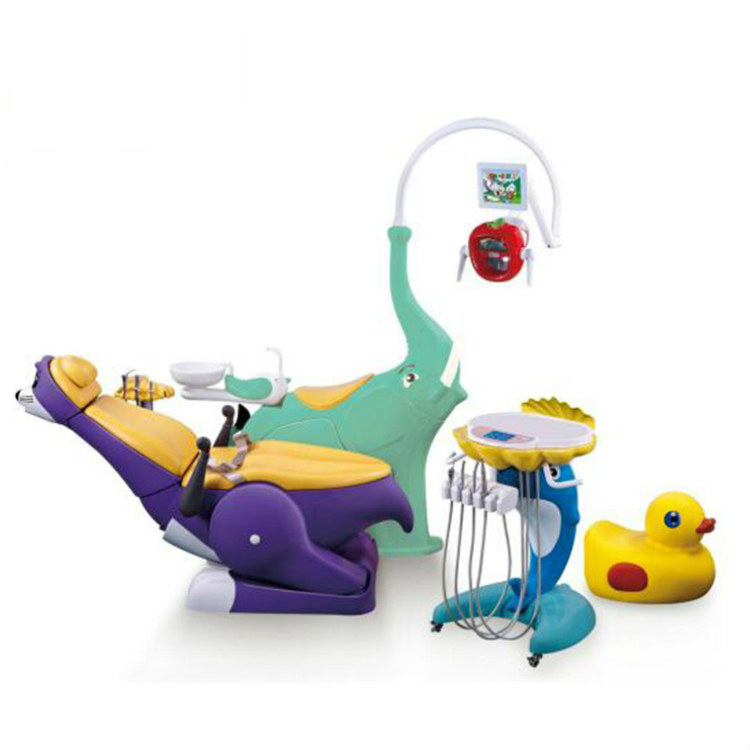

LED Touch Screen Control Panel Lovely Kids Dental Unit Children Dental Chair Equipment

Certification:	ISO, CE
Type:	Dental Unit
Material:	Steel

Basic Specifications

Model NO.

CCD-622L

MOQ

1 Unit

Warranty

1 Year

Transport Package

Standard Export Package

Origin

China

Capacity

200 units/Month

Product Overview

LED Touch Screen Control Panel Lovely Kids Dental Unit Children Dental Chair Equipment

⚙ Power & Pressure

Power voltage: 220V-50Hz / 110V-60Hz
Motor voltage: 24V
Air pressure: 0.5MPa-0.8MPa
Water pressure: 0.2MPa-0.4MPa

💡 Dental Light

LED light with on/off and non-class intensity sensor
Light intensity: 20,000 - 35,000 lux
Color temperature: 6,000-6,500K
Flexible arm, adjustable range ≥80 degree
3-axis rotation: vertical, horizontal, axial & diagonal

💺 Patient Chair

Motor-driven chair (24V/DC motor)
PU chair and backrest upholstery with safety strap
Heavy-Gauged Steel Framing, Epoxy-Painted
Backrest range: 120° - 150°
Moving range: 600-800mm (Max Load: 130kg)

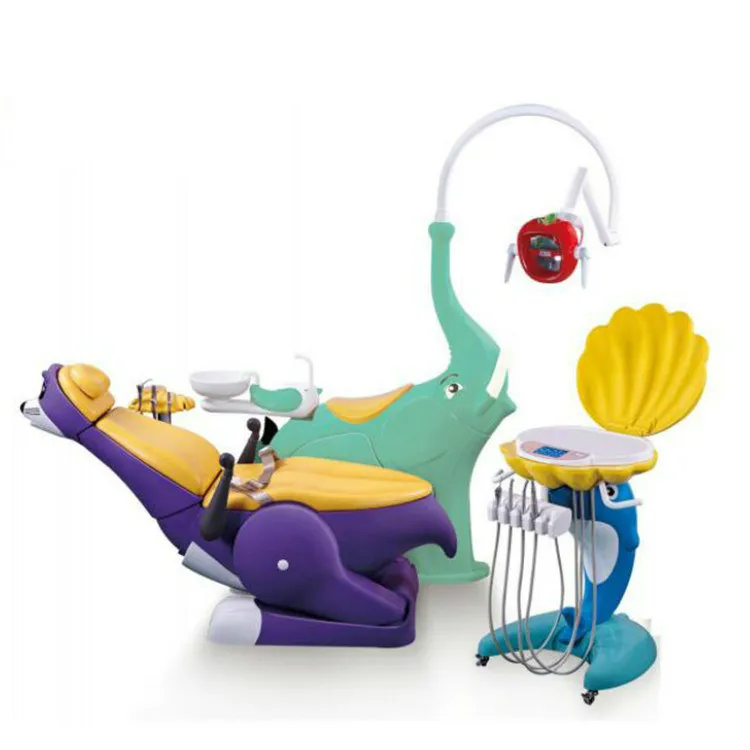

🐘 Cartoon Design

Elephant cartoon appearance water unit
Individually movable lovely dolphin dentist tray
Yellow duck external box
180° rotatable & detachable ceramic spittoon

Product Details Display

Standard Configuration

3-way syringe (cold/hot)	2 sets
Powerful suction device	1 set
Saliva ejector	1 set
Dentist's Stool (High quality)	1 set
LED dental light	1 set
Warm water system & Thermostat	1 set
Purified water supply system	1 set
Main touch panel for movement & cuspidor	1 set

Comprehensive Dental Solutions

Related Equipment	Dental Chair Units	Class B Autoclave
	Intra-Oral Camera	Dental Compressor
	Dental Handpiece	Ultrasonic Scaler
	Dental Cabinet	Instrument Washer

Frequently Asked Questions

What is the maximum load capacity for the children's dental chair?

The chair is designed with heavy-gauged steel framing and can support a maximum load of 130kg.

Does the unit support different voltage standards?

Yes, it is compatible with both 220V-50Hz and 110V-60Hz power supplies.

Is the dental light adjustable?

Yes, the LED dental light features a flexible arm with a range of ≥80 degrees and 3-axis rotation for precise positioning.

What cartoon designs are included in this model?

This unit features an elephant-themed water unit, a dolphin-themed dentist tray, and a yellow duck external box to create a friendly environment for children.

Is the spittoon easy to clean?

Yes, the unit includes a 180° rotatable and detachable ceramic spittoon for easy cleaning and sterilization.

What is included in the standard warranty?

The product comes with a 1-year warranty covering standard manufacturing defects.
