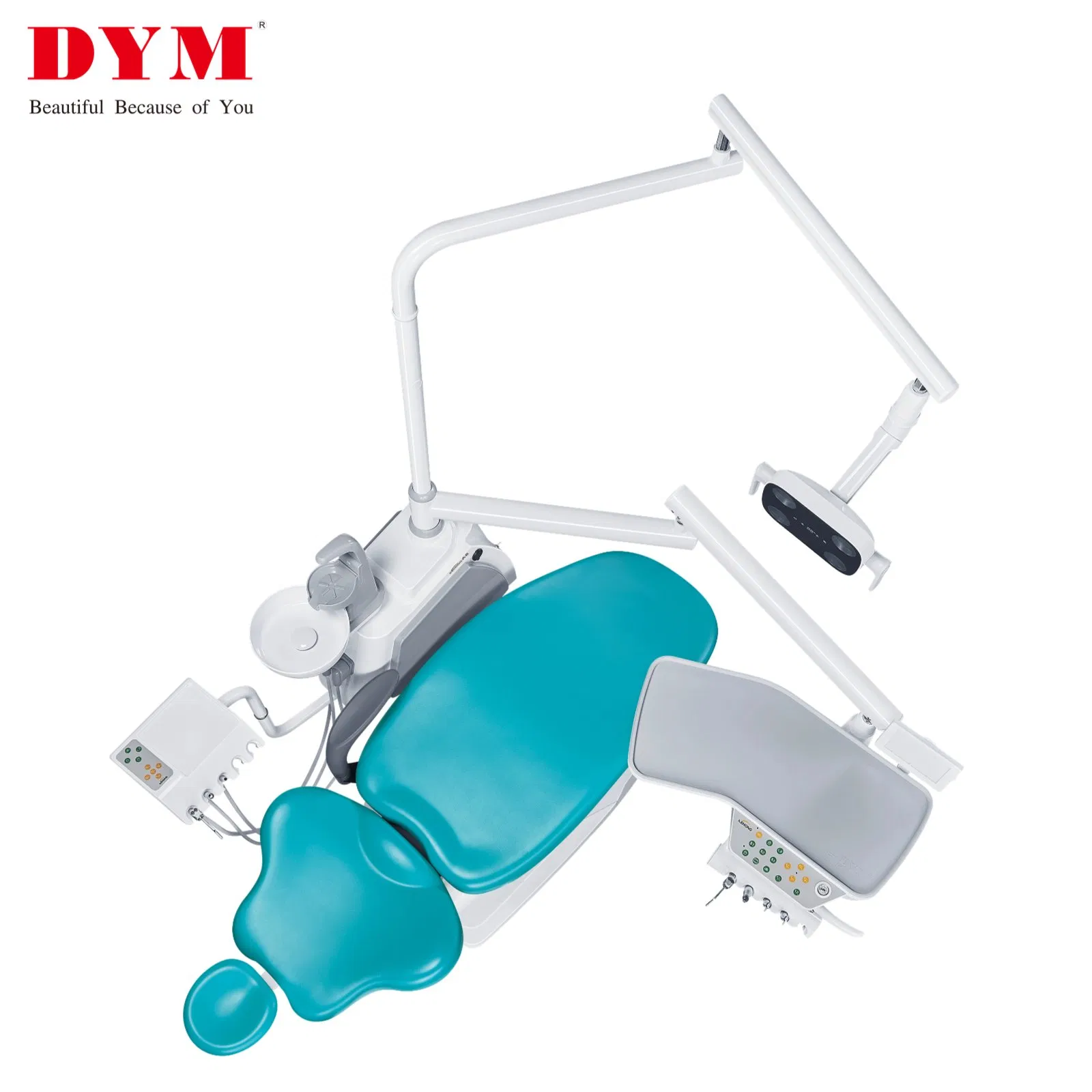

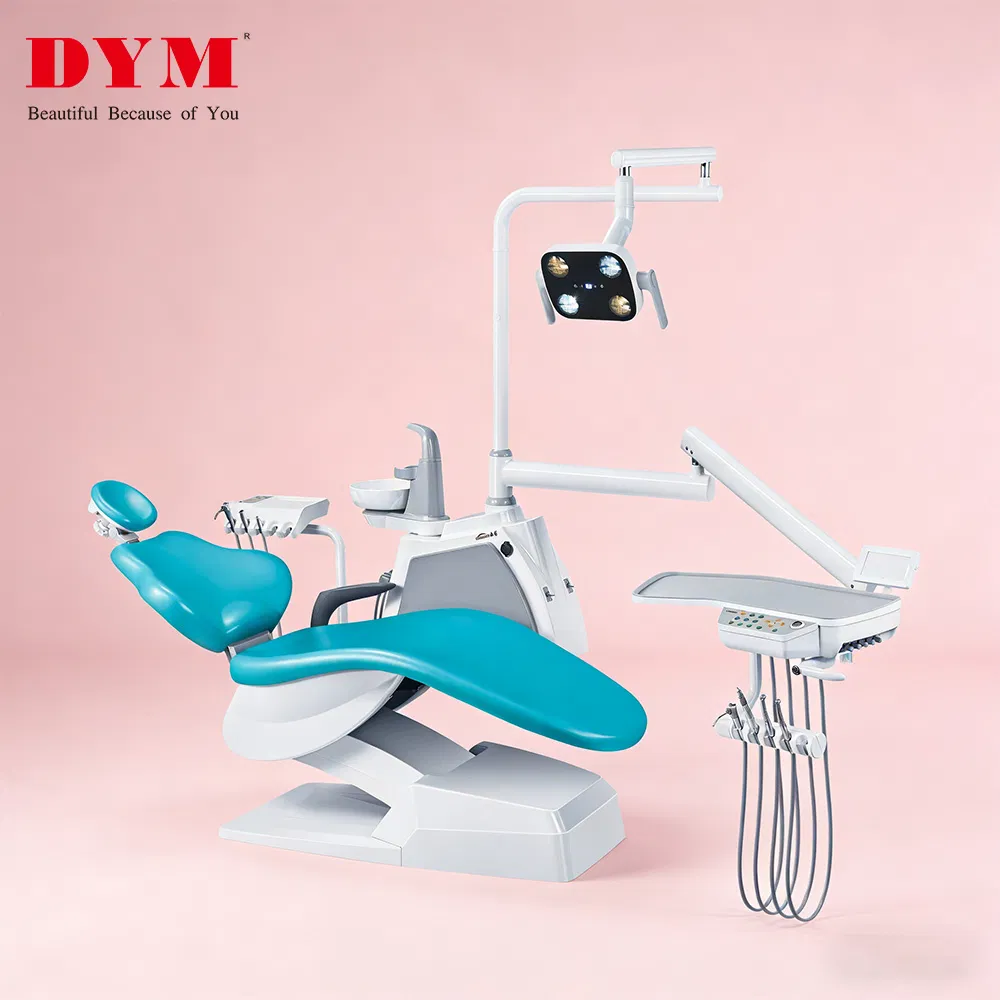

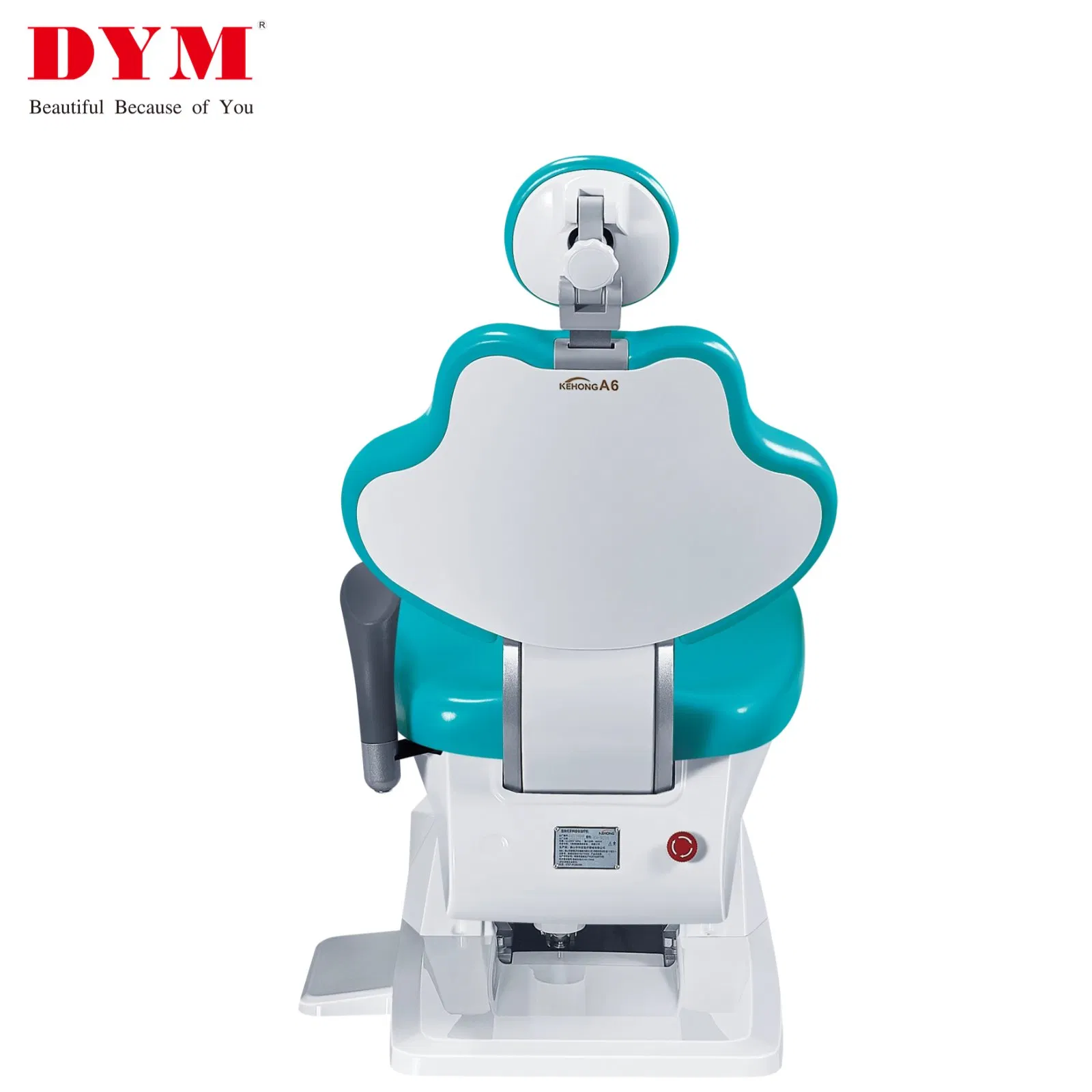

Dental Equipment Price Dental Electric Chair Unit with Dental Scaler Compressor Handpiece Light Cure

Customization:	Available
Condition:	New
Certification:	ISO9001

Basic Specifications

Model NO.

KH-9001-A6

Application

Adult, Child

Style

Multifunctional

Trademark

DYM

Origin

China

Capacity

500 PCS/Month

HS Code

9018499000

Package

Crate

Product Description

Core Features

USB Charging Connection with thickened, double-processed chair frames (painting and electrophoresis).

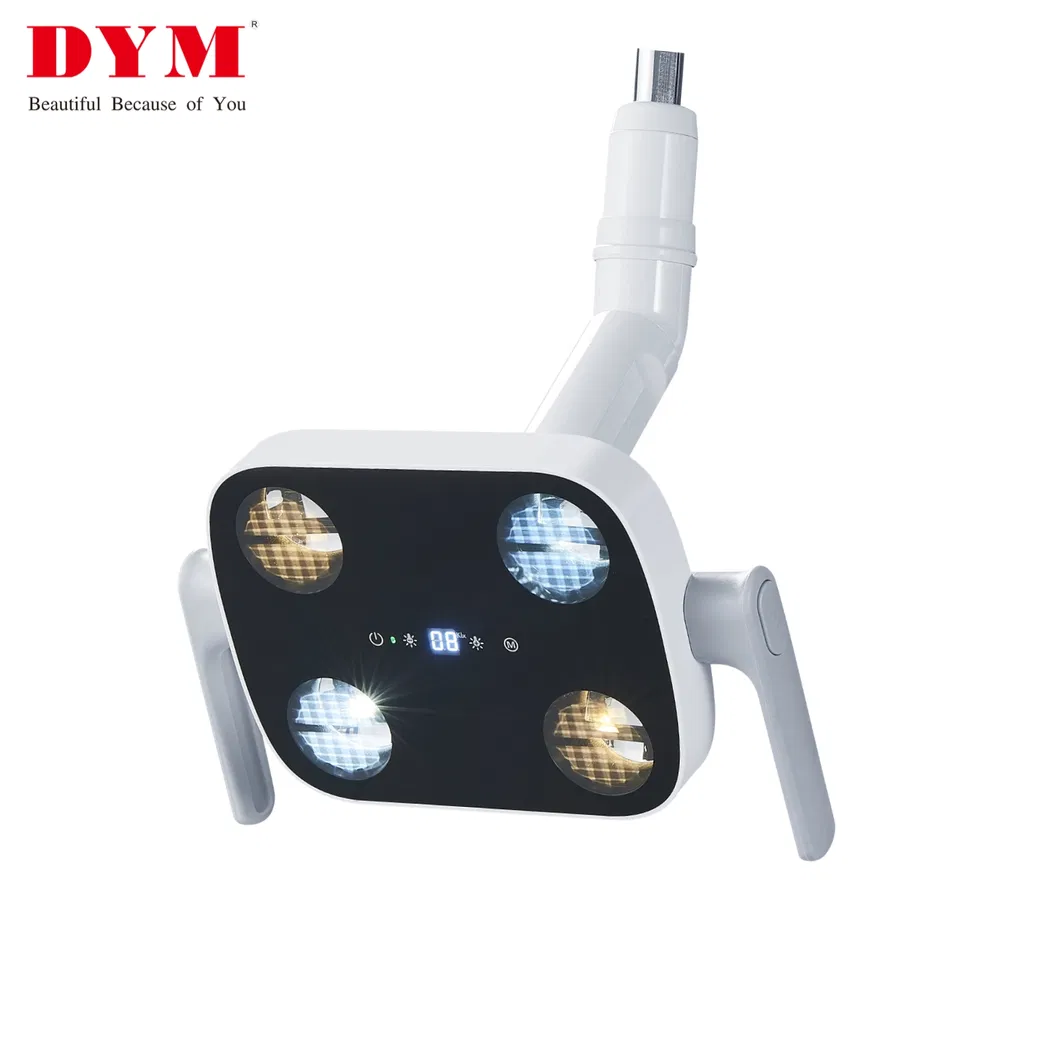

4-hole Intelligent Sensor Anti-resin Curing Oral Lamp for precise lighting.
Durable Stainless steel multi-function foot switch.
Stainless steel handpiece spiral and rotating handpiece holder.
Three Chair-positions Memory for optimized workflow.

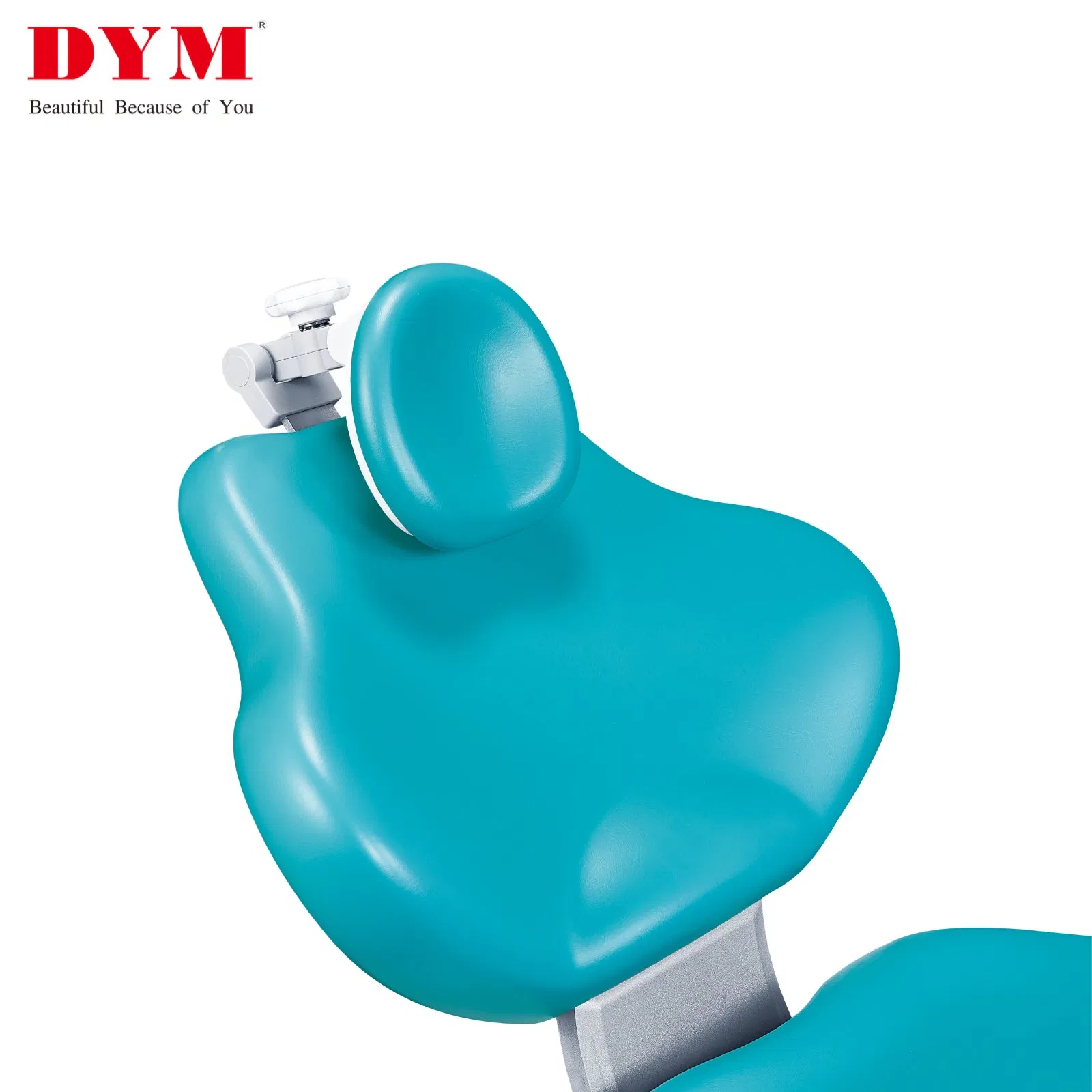

Equipped with high-comfort PU Leather.

Standard Configuration
The machine color (White)	Spray Painted Chair Frame
Assistant Operating Control System	Acid and Alkali Resistant Water Pipes
Handpiece Air Control System	Water Suction Tube
Standard X-film Viewer	Motor
Urgency Safety Switch On/Off	PU Leather Cushion (Option: Micro Fibre Leather)
Spittoon Flush and Cup Filler Control	Removable Rotating Spittoon
Luxurious Multi-function Foot Switch	4-hole Intelligent Sensor Oral Lamp
Three Chair-positions Memory	Single Armrest
Dentist Stool	Interlock System

Technical Parameters

1. Rated Voltage: AC220-240V

2. Frequency & Power: 50Hz, 800VA

3. Air Supply: Pressure 0.55-0.8Mpa, Flow >50L/min

4. Water Source: Pressure 0.25-0.50Mpa, Flow ≥5L/min

5. Environment: Temperature 10°C-40°C, Humidity 30% - 80%

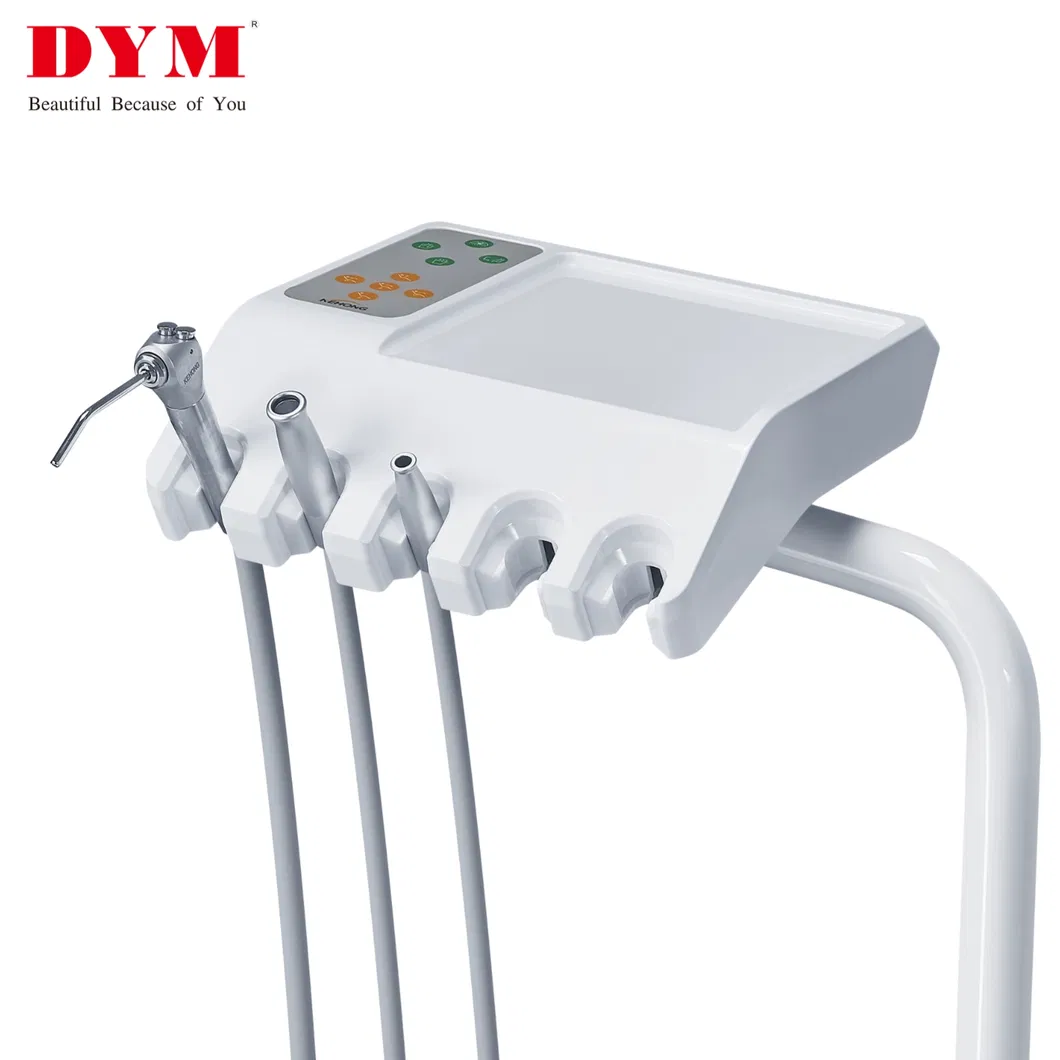

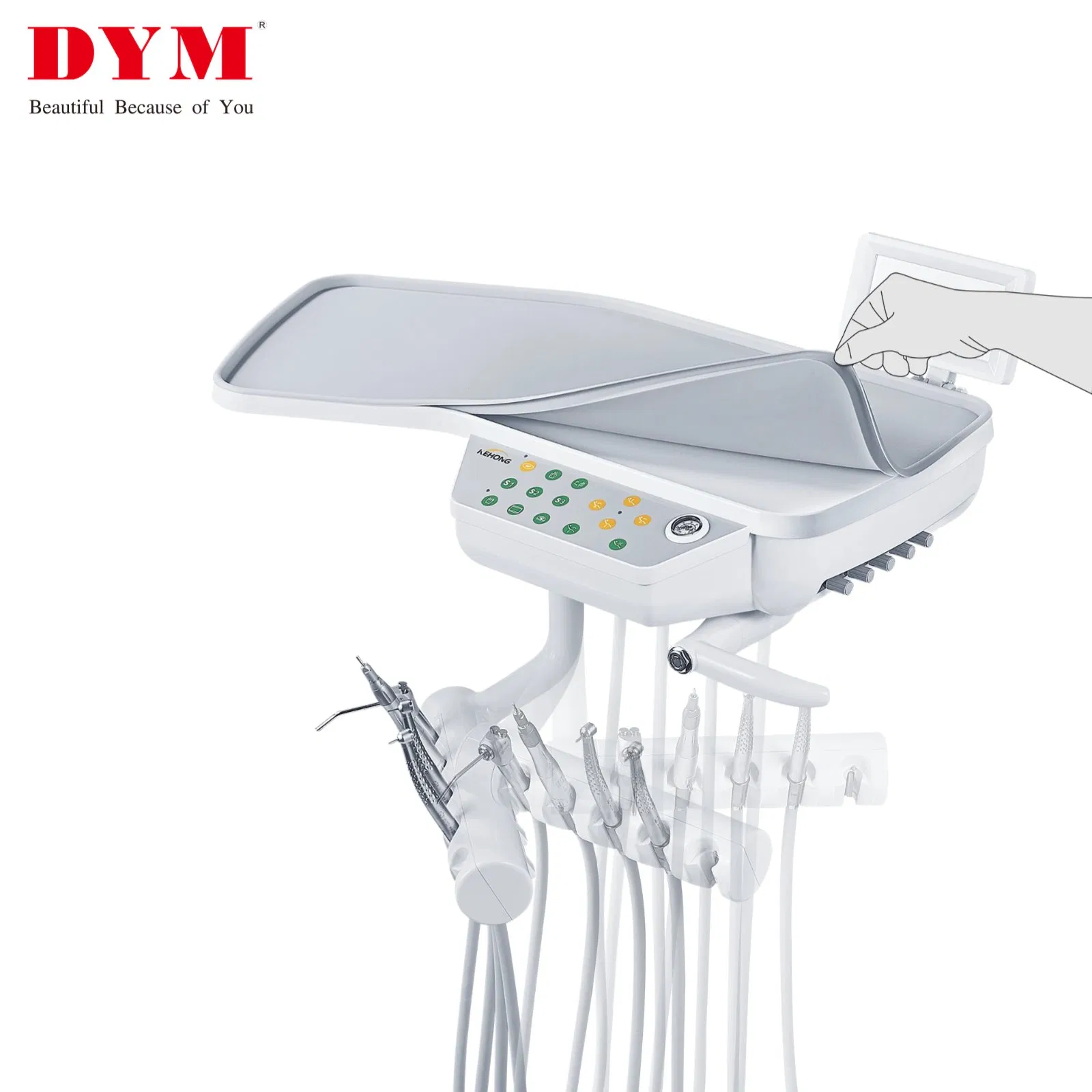

Assistant Control Panel

Includes one 3-way syringe with stainless steel handle and a set of strong/weak suction handles. The multi-functional panel controls spittoon flushing, water supply, chair movement (up/down/backrest), reset, mouthwash heating, and the oral lamp.

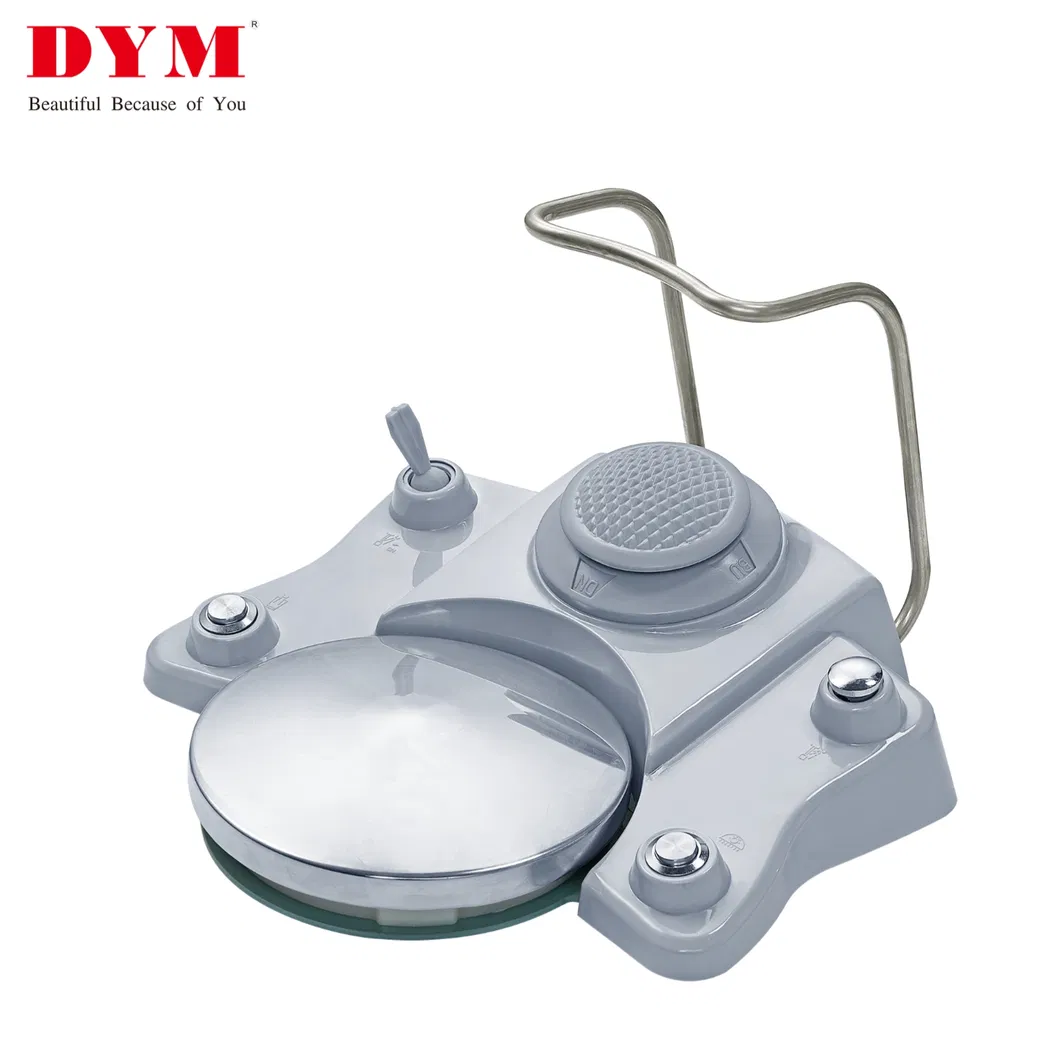

Multifunctional Foot Controller

Enables hands-free operation to prevent contamination. Controls handpiece status, water supply, seat lift/lower, backrest adjustment, and oral lamp switch.

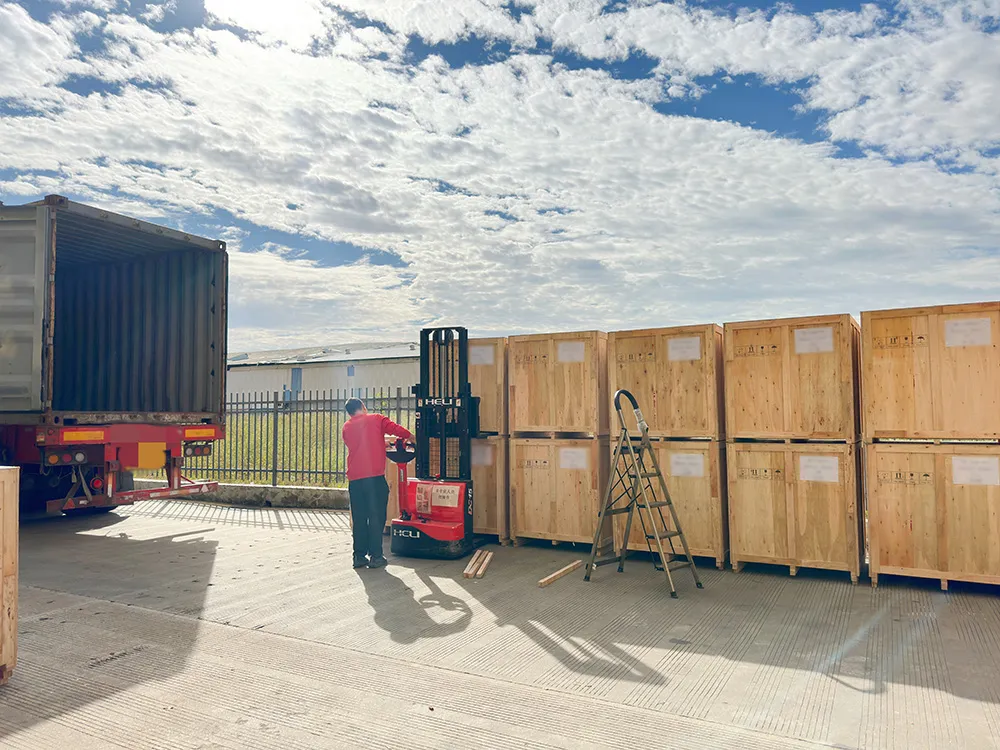

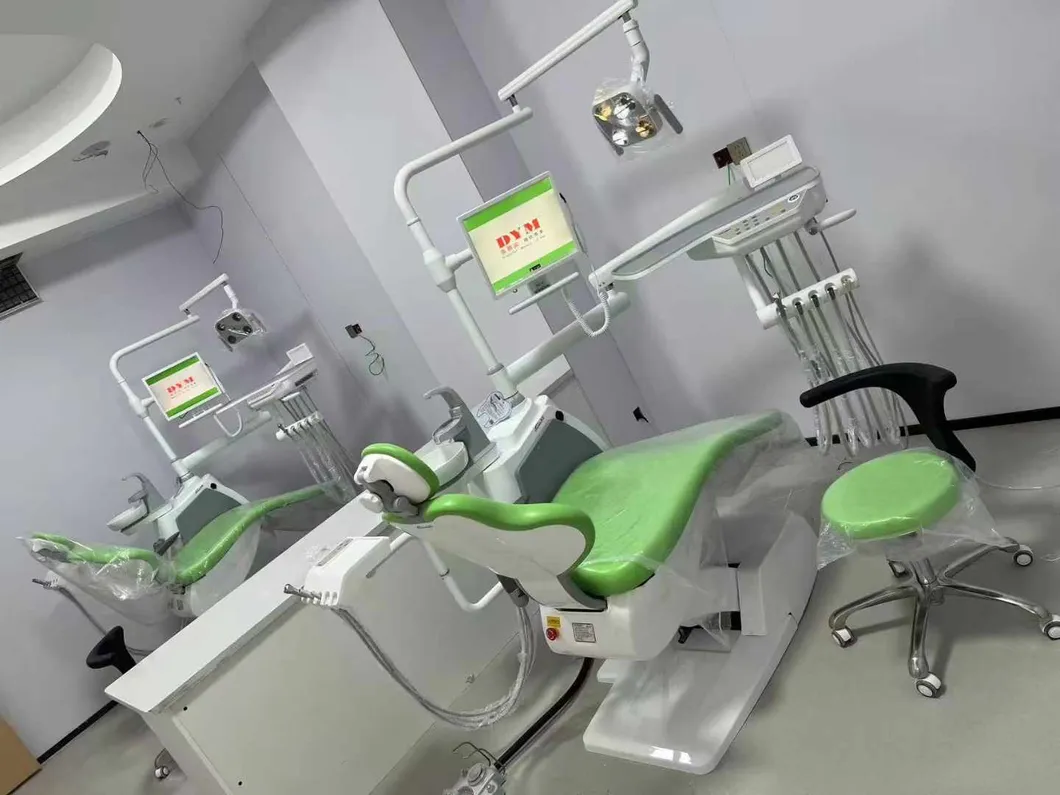

Professional Manufacturing & Shipping

Frequently Asked Questions

Is the KH-9001-A6 dental chair suitable for pediatric patients?

Yes, the chair is designed for both adults and children, featuring multifunctional adjustments to accommodate different patient sizes comfortably.

What are the power requirements for this dental unit?

The machine operates on a rated voltage of AC220-240V at 50Hz, with an input power of 800VA.

How does the chair prevent contamination during procedures?

It includes a multifunctional foot controller that allows the dentist to adjust chair positions and handpiece water without using their hands, significantly reducing the risk of cross-contamination.

What is the advantage of the 4-hole intelligent sensor oral lamp?

The lamp features anti-resin curing technology and an intelligent sensor, providing clear visibility while preventing premature hardening of dental resins during treatment.

Does the chair have a memory function for positions?

Yes, the unit comes with a three-chair-position memory system, allowing practitioners to save and quickly return to preferred treatment angles.

What is the production capacity and shipping method?

The production capacity is 500 units per month. Units are securely packed in crates for safe and quick international shipping.
