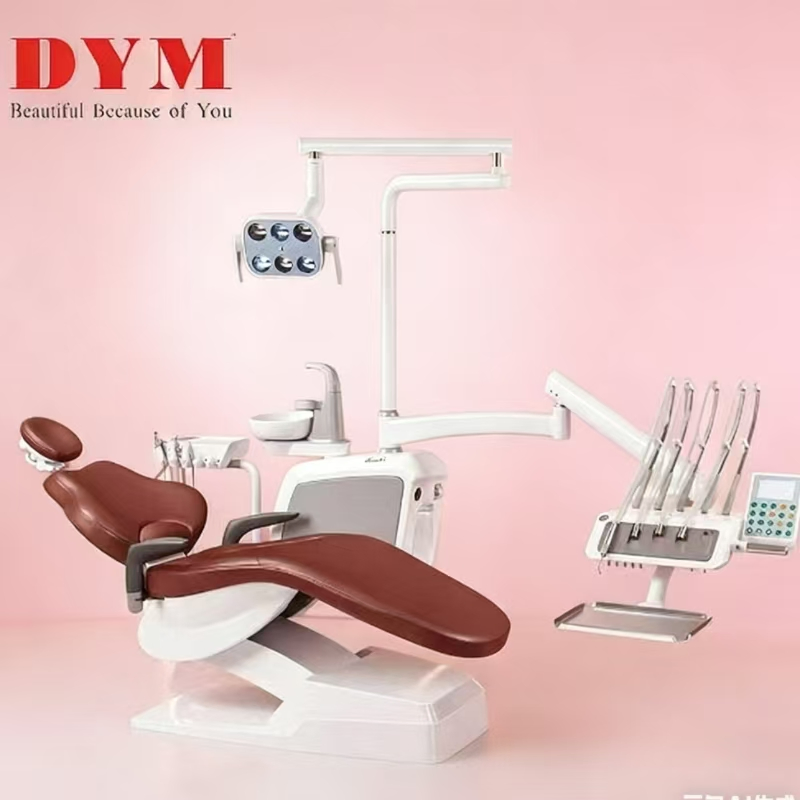

Electric Dental Chair Unit with LED Operating Light and Top Instrument Tray for Dental Clinic

Customization: Available
Condition: New
Certification: ISO9001, ISO

Product Description

📋

Basic Info.

Model NO.
A7+Top Instrument Tray
Application
Adult, Child
Style
Multifunctional, Luxury
Power Source
Electricity
Transport Package
Wooden
Specification
1.43*1.03*1.23 (m)
Origin
China
HS Code
9018499000
Production Capacity
500 Pieces Per Month
💎

Product Description

Main Features

  • Luxurious multi-function foot switch

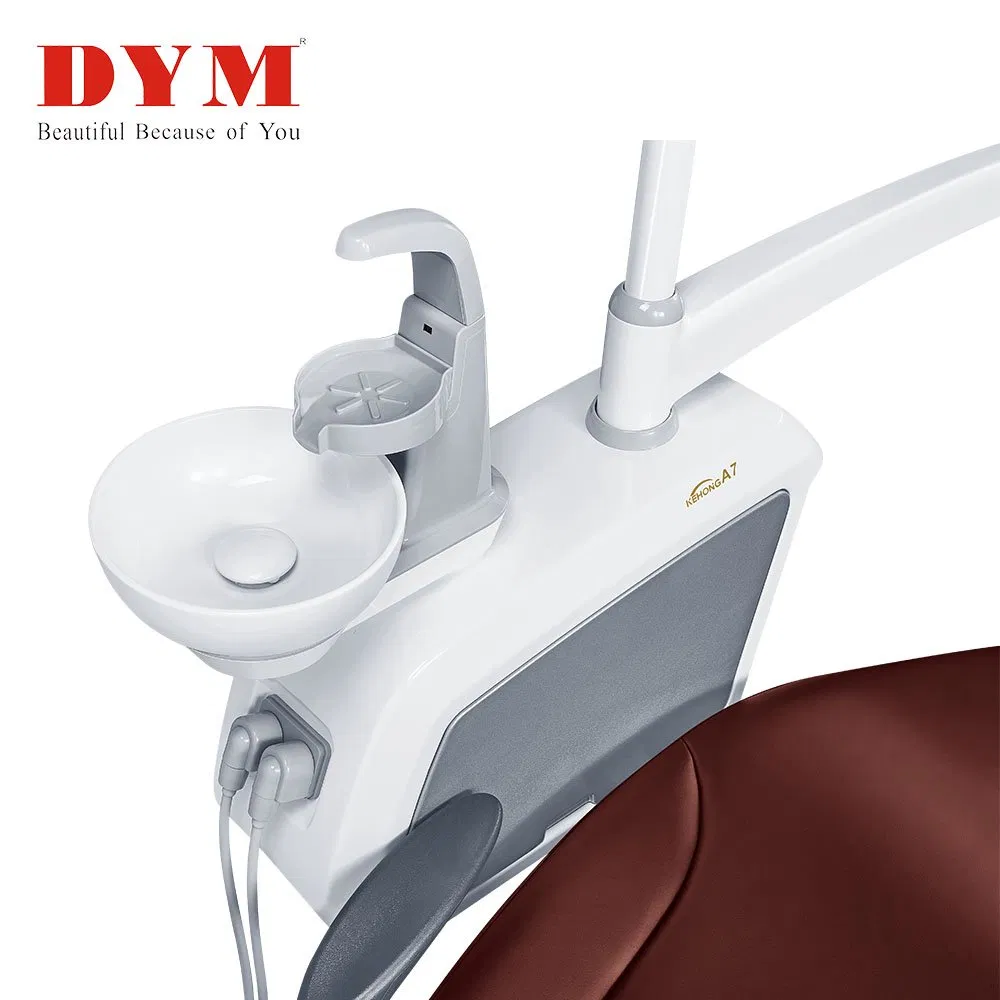

  • Auto-spittoon flush and cup filler control system
  • Interlock, resistance protection function and emergency switch
  • Silent and stable motor with nine memory chair-positions
Electric Dental Chair Unit
⚙ Intelligent Water Supply System
Model A7+ (Top Instrument Tray)
Cushion Size Length: 1898mm | Wide: 920mm | Backrest: 635mm
Packing Size 1.43 * 1.03 * 1.23m
Warranty 2 Years (except cushion)

Technical Parameters

Rated Voltage
AC220-240V
Frequency
50Hz / 800VA
Air Pressure
0.55-0.8Mpa (>50L/min)
Water Pressure
0.25-0.50Mpa (≥5L/min)
Temperature
10°C - 40°C
Humidity
30% - 80%
Dental Machine Technical
Steel Aluminum Combination Technology

Reduces mass and inertia while improving wear resistance and thermal efficiency. Features an intelligent water supply system with gravity and infrared sensors for effortless adjustment by dentists and nurses.

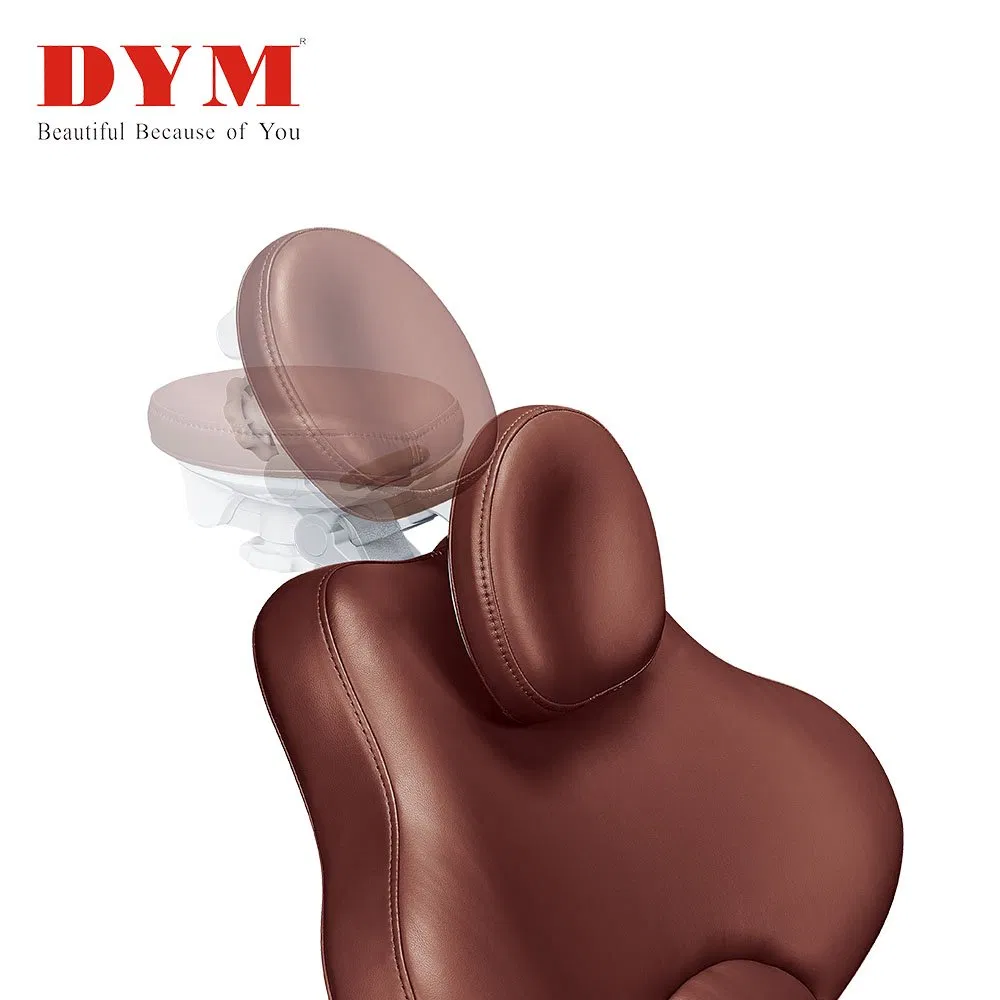

Memory foam comfortable headrest included.
Dental Chair Components

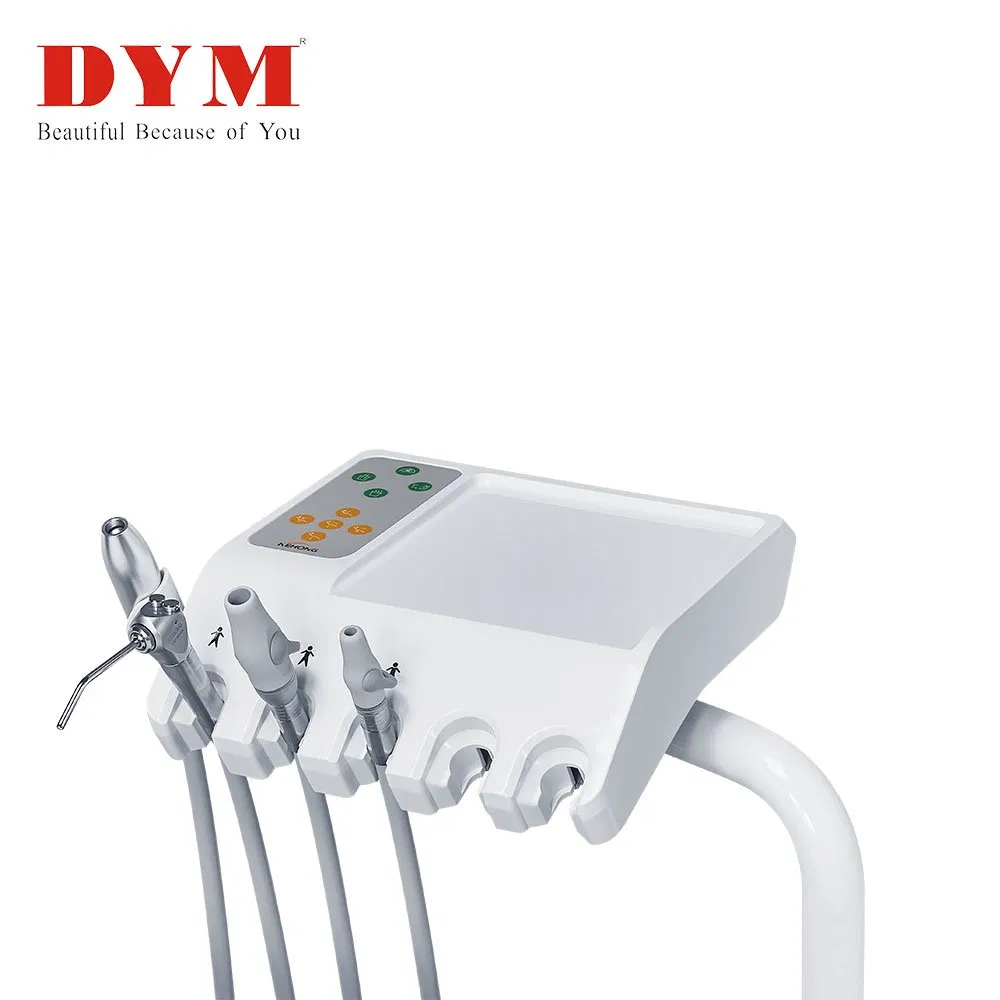

Assistant Control Panel & Foot Controller

  • 3-way syringe with stainless steel handle, strong/weak suction handles.
  • Control spittoon flushing, water supply, chair movement, heating, and oral lamp.

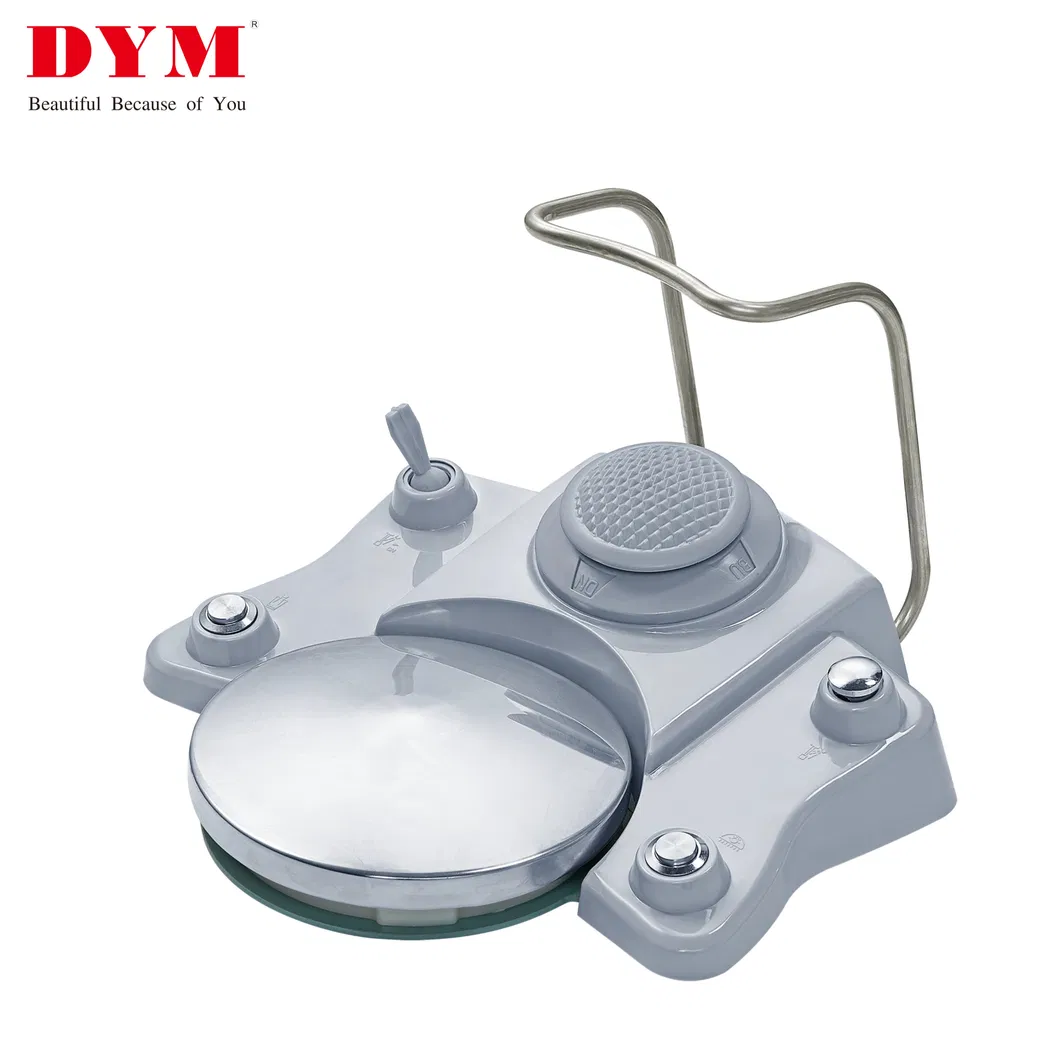

  • Foot controller manages handpiece status, water, seat lift, and backrest movement to ensure hands-free efficiency and hygiene.

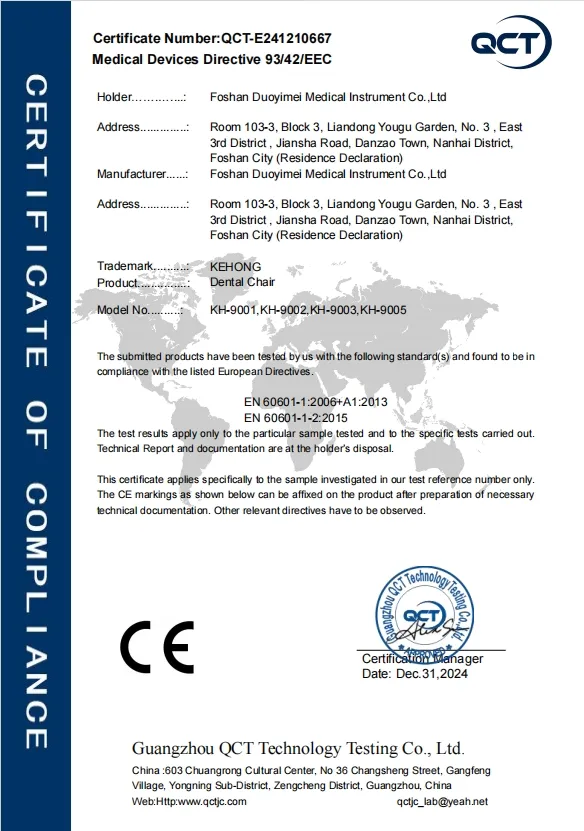

CE Certificate Authentication

CE Certificate

Frequently Asked Questions

1. What is the warranty period for the A7+ dental chair?

The unit comes with a 2-year warranty, covering all major components except for the cushion.

2. Does the chair support memory positions?

Yes, it features a stable motor system that supports up to nine programmable memory chair-positions for improved workflow.

3. What are the electrical requirements for installation?

The machine operates on a rated voltage of AC220-240V at a frequency of 50Hz, with an input power of 800VA.

4. Is the water supply system automated?

Yes, it utilizes an intelligent water supply system with gravity and infrared sensors, allowing for easy adjustment of water levels.

5. How is the product packaged for international transport?

The dental chair is securely packed in a wooden crate with dimensions of 1.43*1.03*1.23m to ensure safe transit.

6. Is this dental unit suitable for pediatric use?

Absolutely. The A7+ model is designed to accommodate both adults and children comfortably.
