★ Basic Specifications
Style
Multifunctional, Luxury, Simple
✚ Features & Advantages
1. With massage and heating function
2. Latest design new display

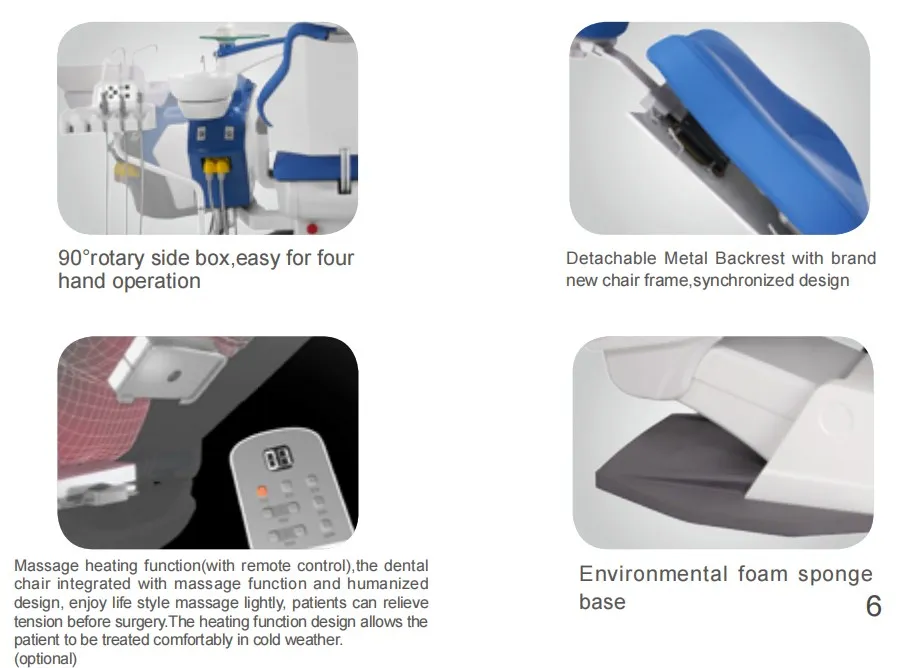

3. 90° Rotary unit box
4. Luxury tool tray with 9 memory programs
5. Genuine leather cushion (5+ years life)

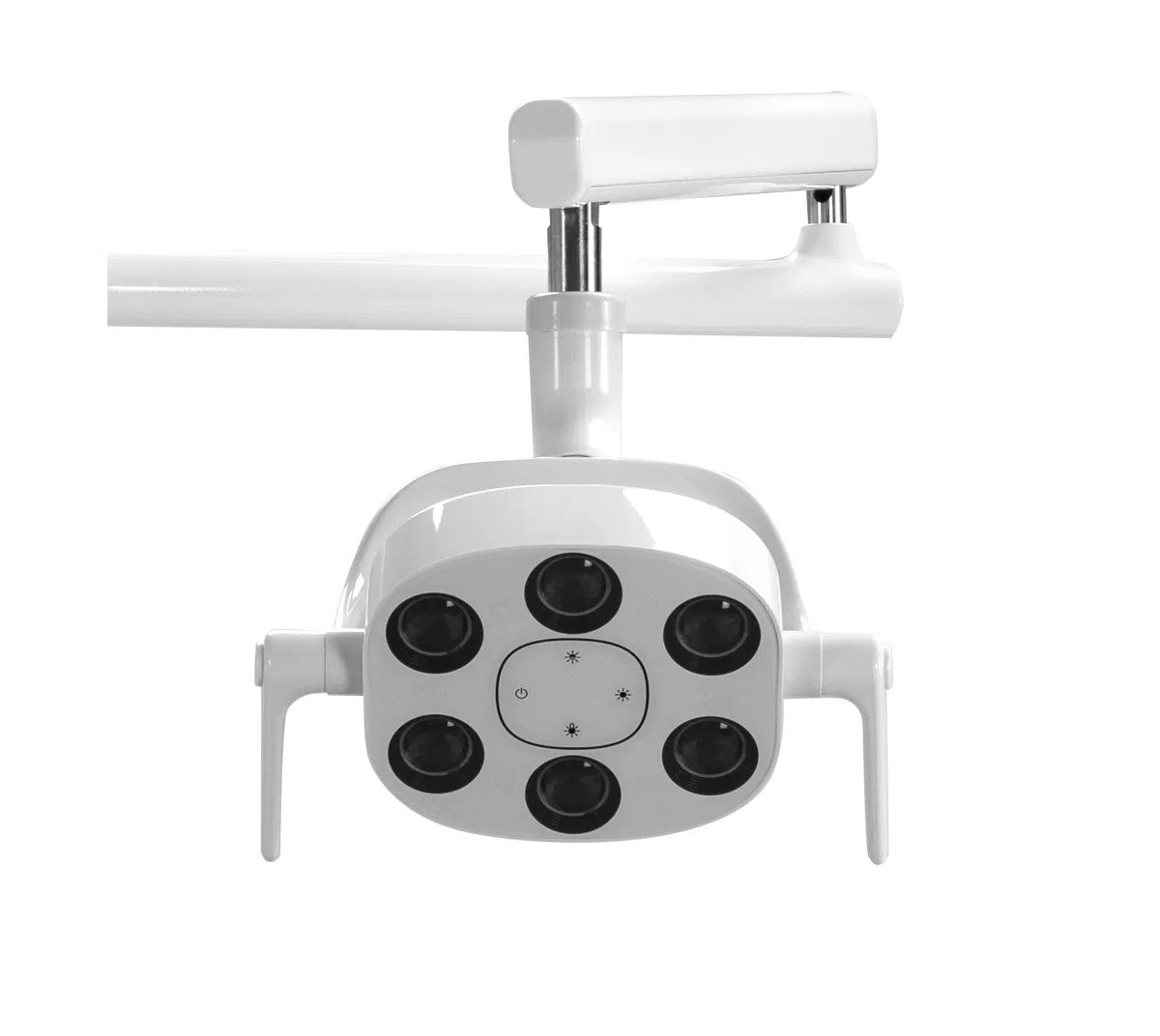

6. 6 bulbs LED sensor dental light
7. Detachable Metal Backrest
8. Casting silicon base, strong & durable
✔ Standard Configurations
| No. |
Item Description |
Quantity |
| 1 | 24v silence Taiwan motor | 1 set |
| 2 | 3-way syringe (cold/hot) | 2 pcs |
| 3 | Water heating system | 1 set |
| 4 | Luxury LED lamp | 1 pcs |

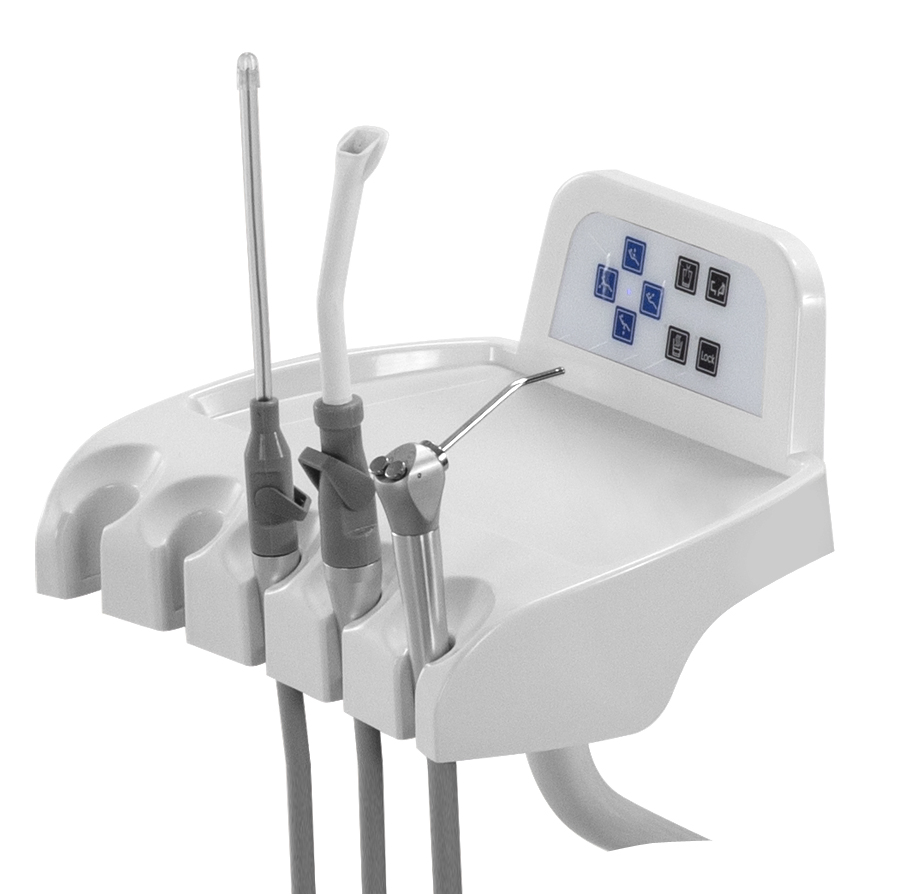

| 5 | Saliva ejector (strong and weak) | 1 set |
| 6 | LED film viewer | 1 set |
| 7 | Purified water storage system | 1 set |
| 8 | Luxury down-mounted tool tray | 1 set |

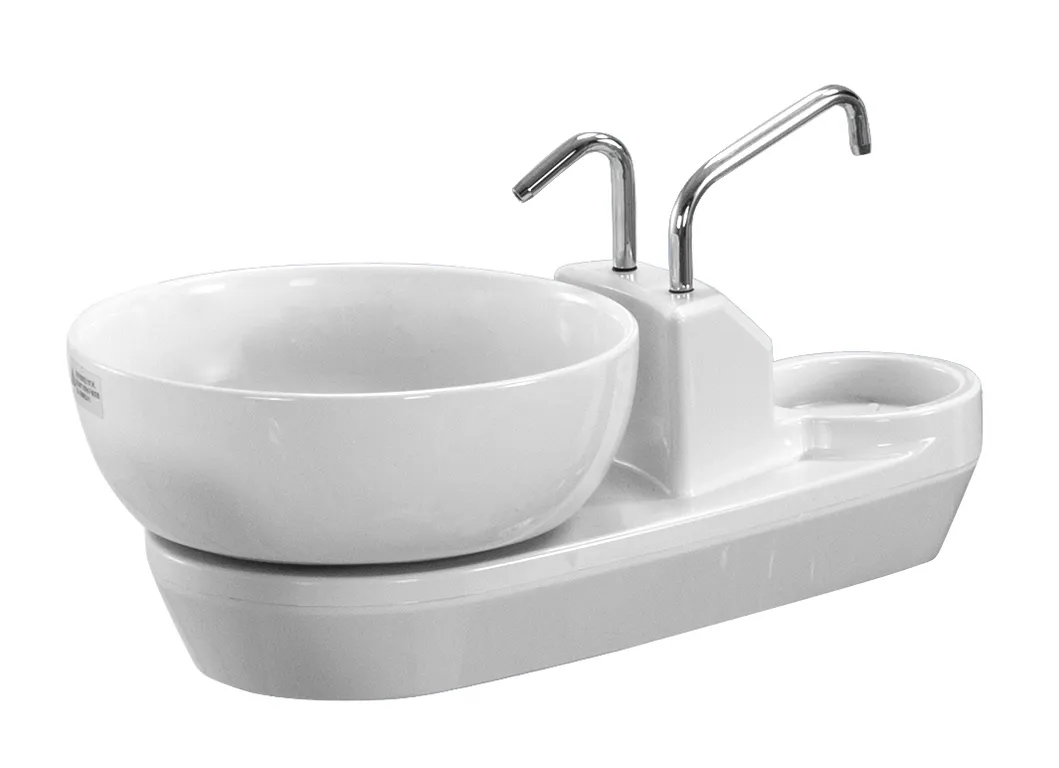

| 9 | Rotary ceramic spittoon | 1 set |
| 10 | Double armrest | 1 set |
| 11 | Assistant control system | 1 set |
| 12 | Micro fiber cushion | 1 set |
| 13 | Multi-function foot pedal 6 in 1 | 1 set |
| 14 | Silent Castor Dentist stool | 1 set |
| 15 | Painting steel base | 1 set |
| 16 | Imported water & air tubes | 1 set |
| 17 | Italy solenoid valve (ODE) | 1 set |
| 18 | Message heating function | 1 set |
| 19 | Memories systems | 3 sets |
⚙ Technical Parameters
Environment temperature: 5°C to 40°C
Related humidity: ≤ 80%
Power supply: ~110-220V ± 10%; 50Hz ± 10%
Air pressure: 400-600kPa
Water pressure: 200-400kPa
Bearing capacity of the chair: ≤ 135 KG
✚ Optional Accessories
- Imported 2/4-hole high/low speed handpiece
- Ultrasonic scaler
- Intra Oral Camera with monitor
- Built in/built-out LED Curing light
- Oil-free air compressor

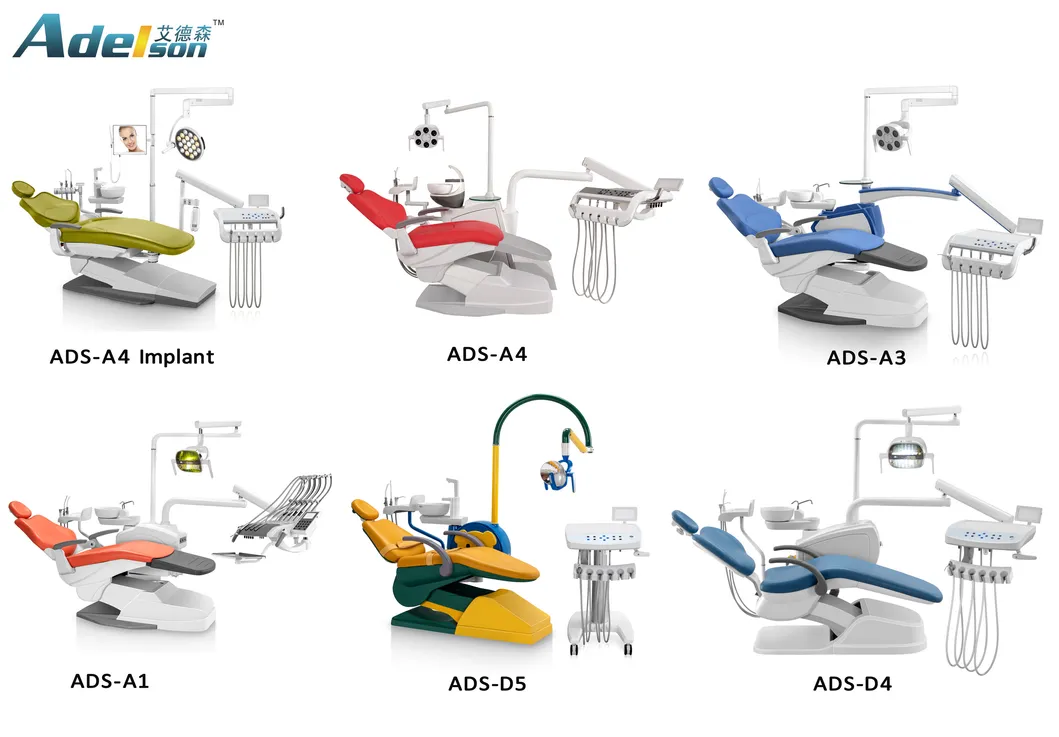

🖼 Product Gallery
⚓ Clinic Piping Requirements
1. Water supply pipe: White PPR Fusion Tube, reserved 4 points copper internal tooth interface.
2. Air supply pipe: White PPR Fusion Tube, reserved 4 points copper internal tooth interface.
3. Drainage pipe: White PVC drain pipe, main pipe 17mm, branch pipe φ50mm.
4. Video/Data: VGA screen and USB data cable: white PVC threading pipe φ 32mm.
5. Negative pressure pipe: Blue UPVC, outer diameter φ50mm, branch φ32mm.
6. Power cord: White PVC threading tube, 4 points (φ 20mm) sleeve 3*1.5mm2 line.
Frequently Asked Questions
What is the maximum weight capacity of the ADS-A3 dental chair?
The chair has a sturdy bearing capacity of up to 135 kg, suitable for most adult patients.
Does this dental unit include massage and heating features?
Yes, the ADS-A3 model comes standard with built-in massage and heating functions for enhanced patient comfort.
What are the key imported components used in this model?
The unit utilizes high-quality imported parts, including silent motors from Taiwan, solenoid valves from Italy (ODE), and imported water and air tubes.
How many memory positions can be programmed?
The luxury tool tray features 3 sets of memory systems, supporting up to 9 memory programs, making it highly efficient for multiple dentists.
What type of upholstery is used for the dental chair?
The chair is equipped with a genuine leather cushion (or micro fiber option), designed for a service life of more than 5 years.
What are the air and water pressure requirements for installation?
The required air pressure is 400-600kPa, and the water pressure should be between 200-400kPa.
