Product Description

Basic Information
Model NO.
MY-E60 (Deluxe Version)
Application
Adult, Child
Nature
Specialized Equipment
Feature
Waterproof
Usage Times
Non-Disposable
Material
Metal, Plastic, Leather
Overall Size
1900mm X 920mm X 2000mm
Base Size
880mm X 600mm
Total Weight
230kg
Backward Angle
105° ~ 170°
Noise Level
Less Than 42dB
Input Power
Single-Phase AC 220V, 50Hz
Product Description

Integrated Dental Chair Multiple Operating Units Dental Unit Comprehensive Therapy Machine Equipment Oral Equipment Treatment Table

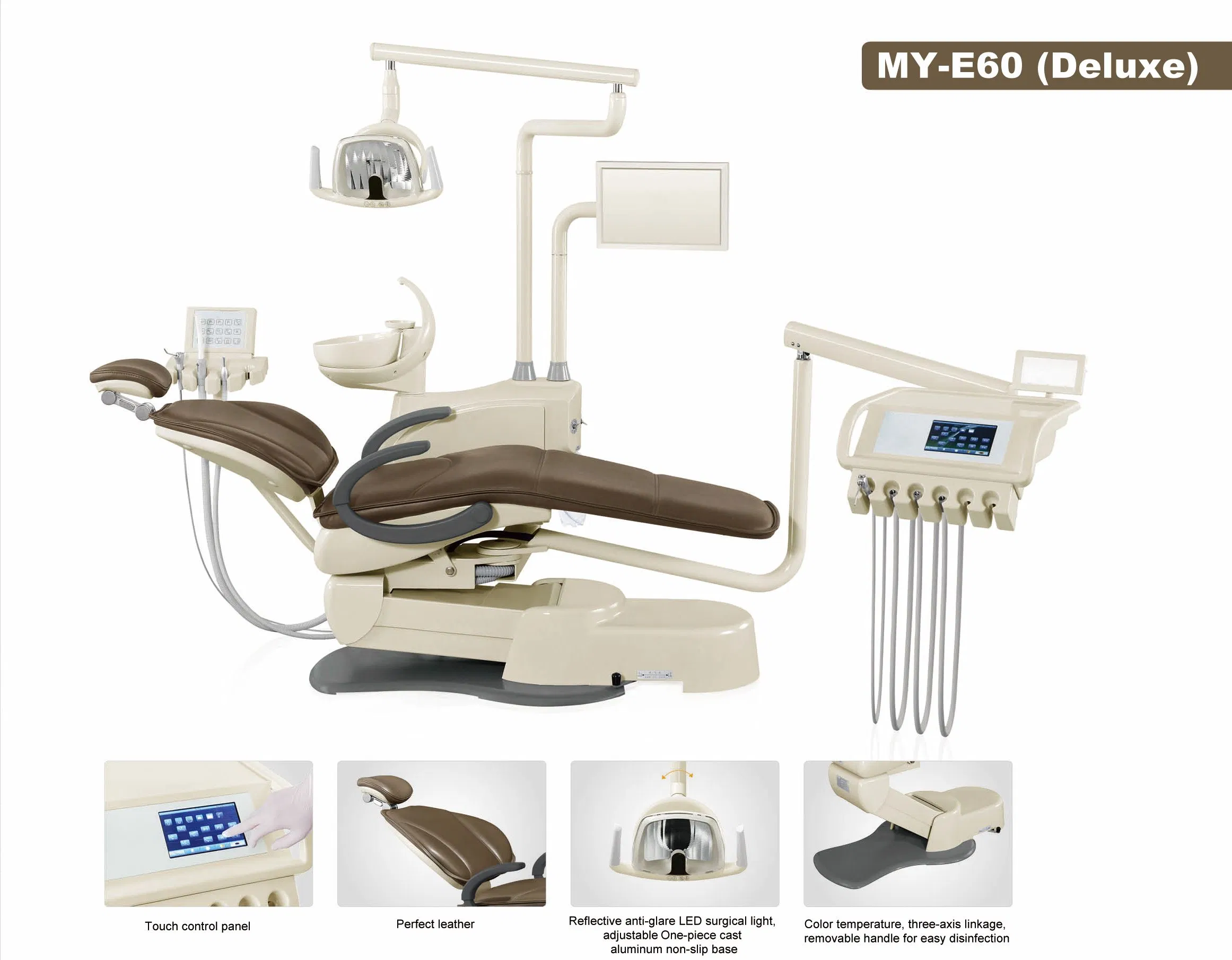

The MY-E60 Deluxe Version represents high-quality electric dental chair engineering, designed for comprehensive oral therapy and clinical efficiency.

  • Durable Foundation: Features an integral cast aluminum alloy bottom plate with non-slip performance and reinforced floor grip for maximum stability.
  • Advanced Control: Equipped with a responsive touch control panel and an instrument interlock function to prevent accidental injuries.
  • Multi-User Memory: Supports three simultaneous program sets, allowing different dentists to preset 3 chair positions each for personalized workflows.
  • Smart Automation: One-button control for rinse cup, cuspidor bowl rinse, chair position, and operating light switch.
  • Precision Spittoon: Digitalized operation allows for fine-tuning the spittoon flush based on local water conditions.
Technical Parameters

Electrical Parameters

Total Power: 800VA

High-speed handpiece: ≥35X10⁴r/min

Low-speed handpiece: ≥18X10³r/min

Oral cold light: 15000LX ~ 25000LX

X-ray viewer: ≥2000LX

Saliva ejector (Strong): Suction flow ≥750ml/min

Physical Capabilities

Minimum Seat Height: ≤450mm

Seat Back Max Angle: ≤10°

Headrest Expansion: 0 ~ 120mm

Load Capacity: ≤ 1350N

Medical Classification: Class II a

Noise Level: ≤42dB

Standard & Optional Configuration

Standard Items

  • Dental chair & Doctor seat
  • Dentist & Assistant consoles
  • Three-way syringe (2 sets)
  • Saliva ejector (Strong/Weak)
  • Intraoral camera & X-ray viewer
  • Digital Control & Touch screen
  • Water heating function

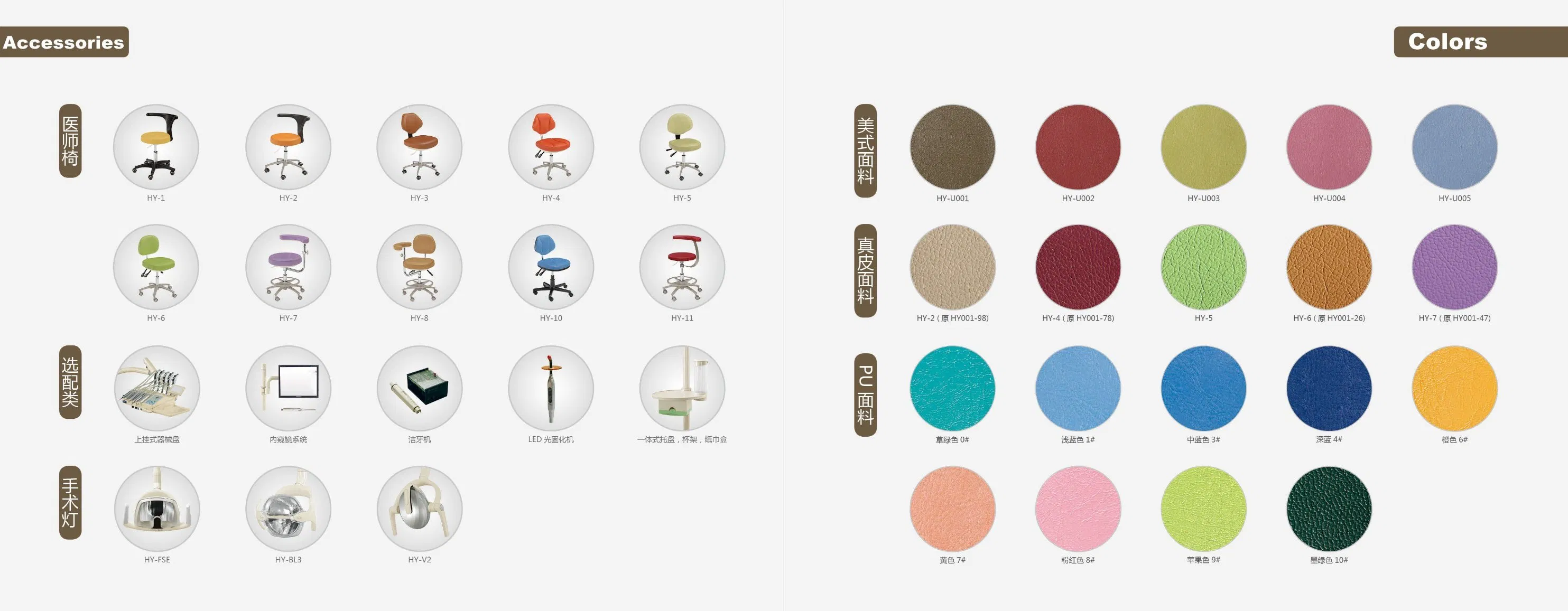

Optional Items

  • Imported 4-hole high-speed handpiece
  • Imported 4-hole low-speed handpiece
  • Domestic dental scaler
  • Oral endoscope
Product Showcase

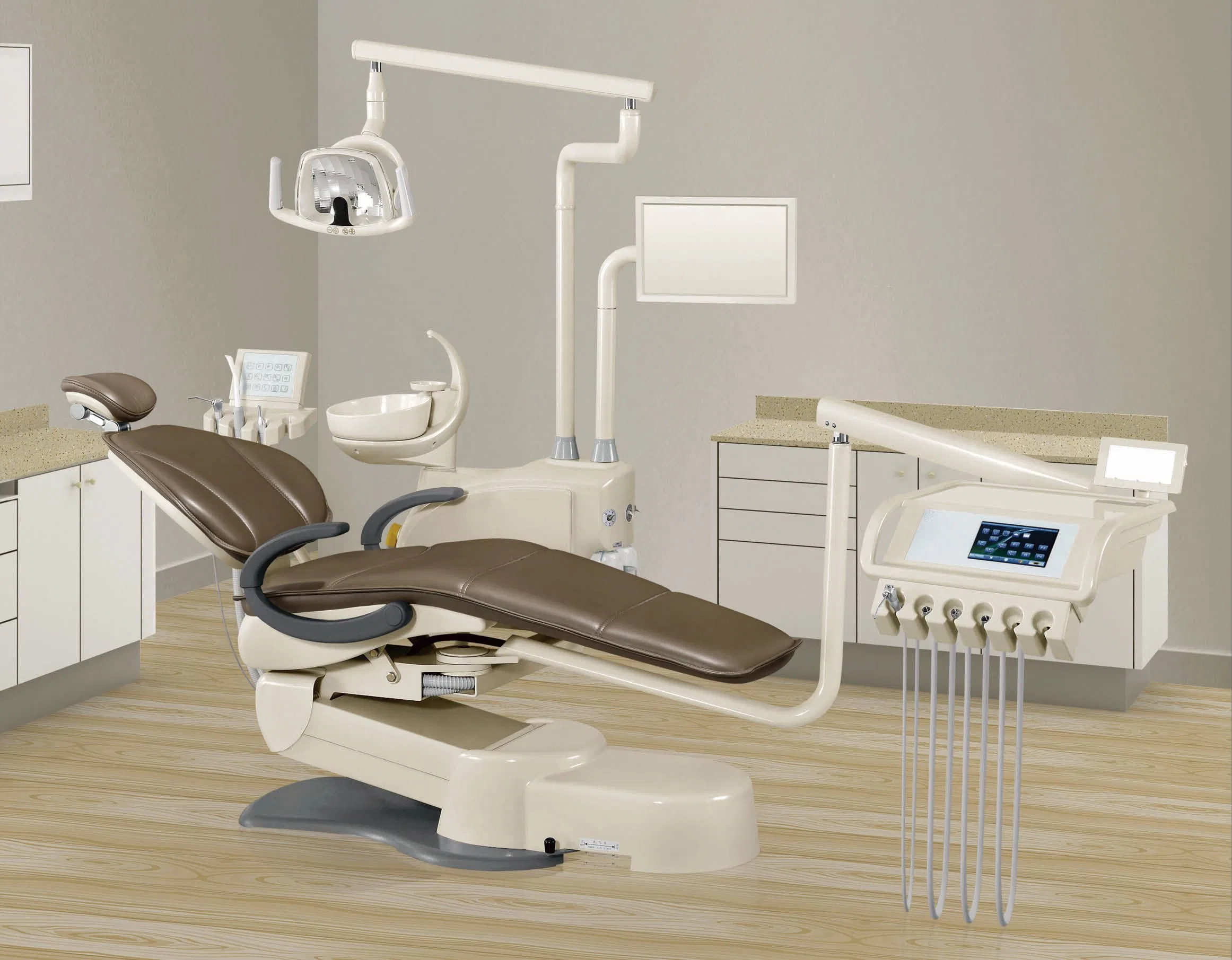

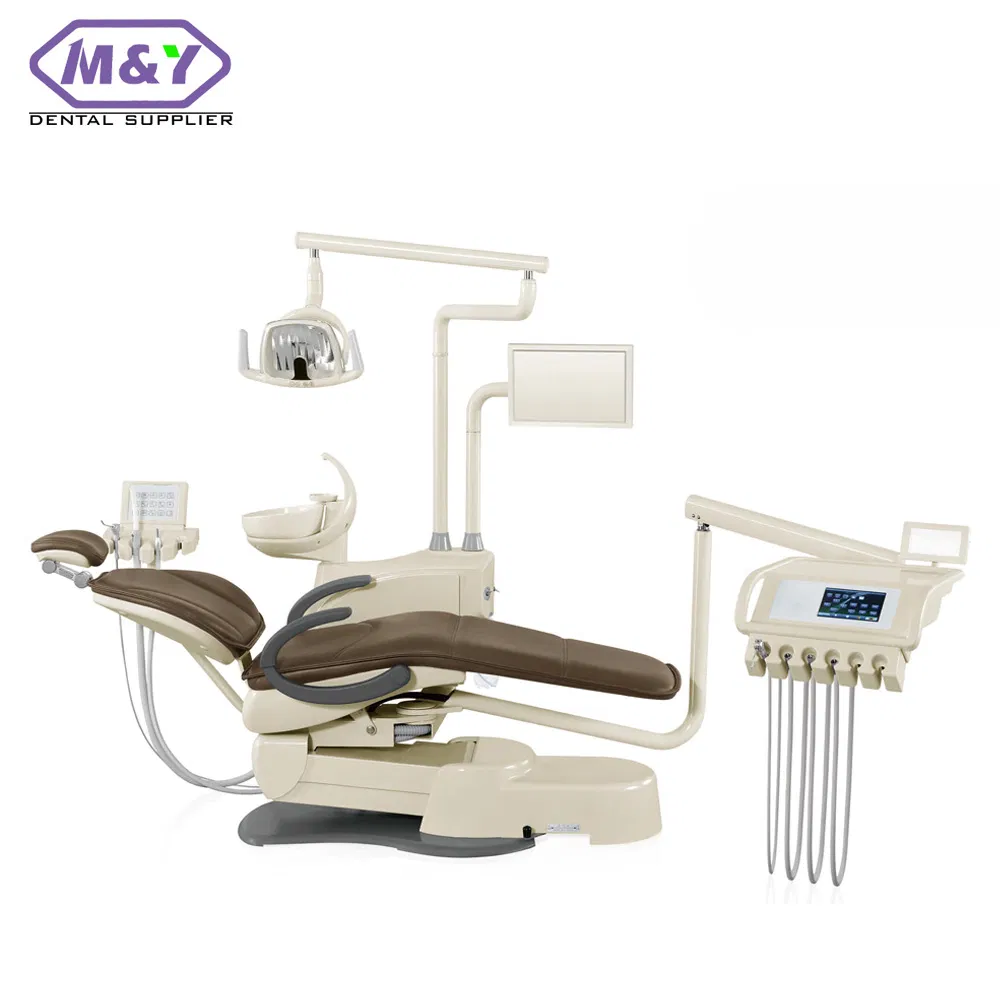

Dental Unit Overview
Frequently Asked Questions
When will the goods be sent?
Normally 3-5 working days upon receiving payment; for a large order, further negotiation is necessary.
Do your products meet the standards and certifications?
Yes, we have obtained the medical device production license as well as the ISO13485 quality certification.
What are your acceptable terms of payment?
TT / Western Union / Money Gram / Trade Assurance are all accepted.
How long is the warranty?
The warranty is specified in the product details of every item provided.
What is your Minimum Order Quantity (MOQ)?
Our MOQ is 1 Piece, which allows you to test our quality first at a low cost.
How do you ship the goods?
We ship via express services such as DHL, FEDEX, UPS, EMS, Aramex, and China Post.
