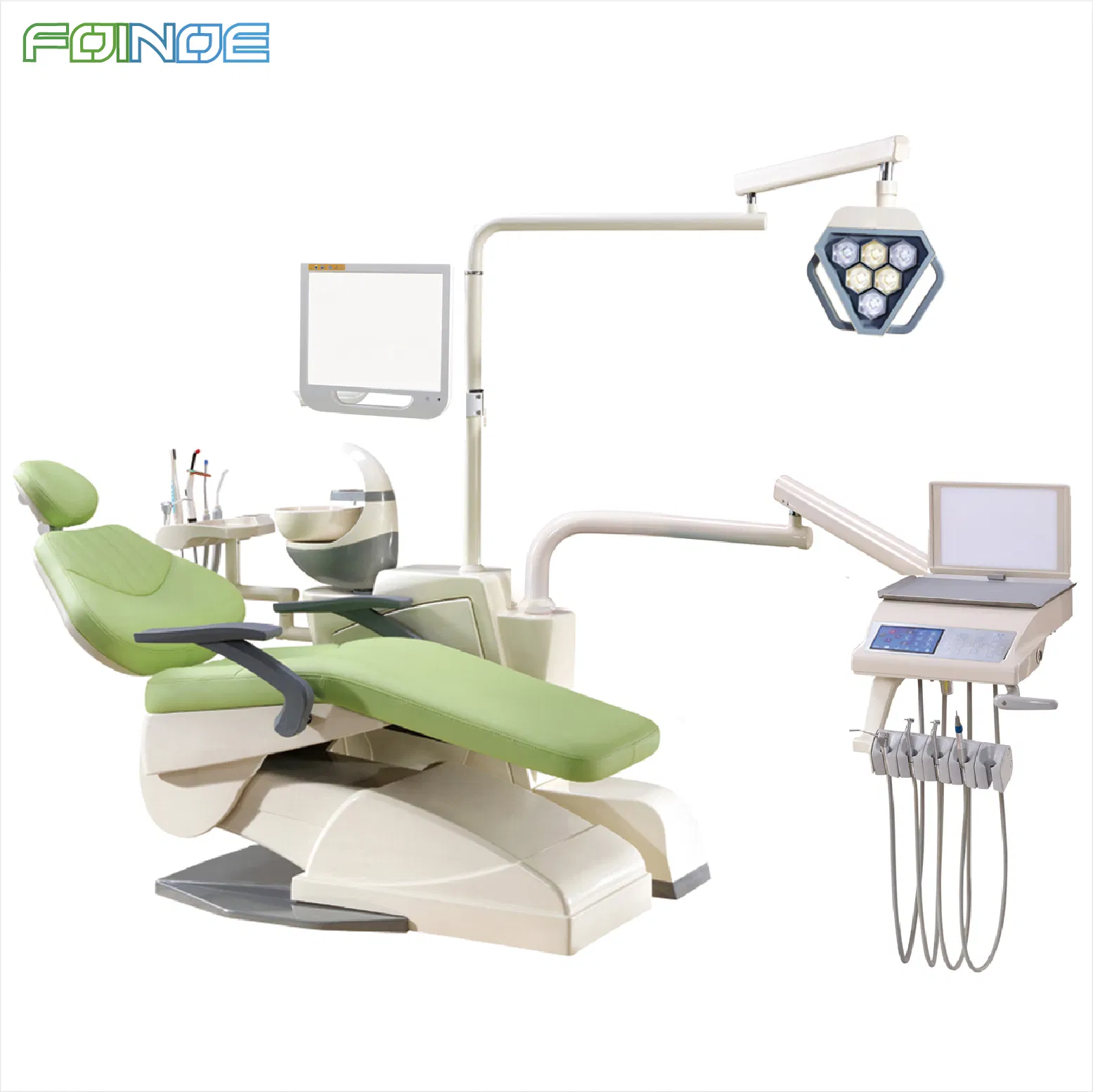

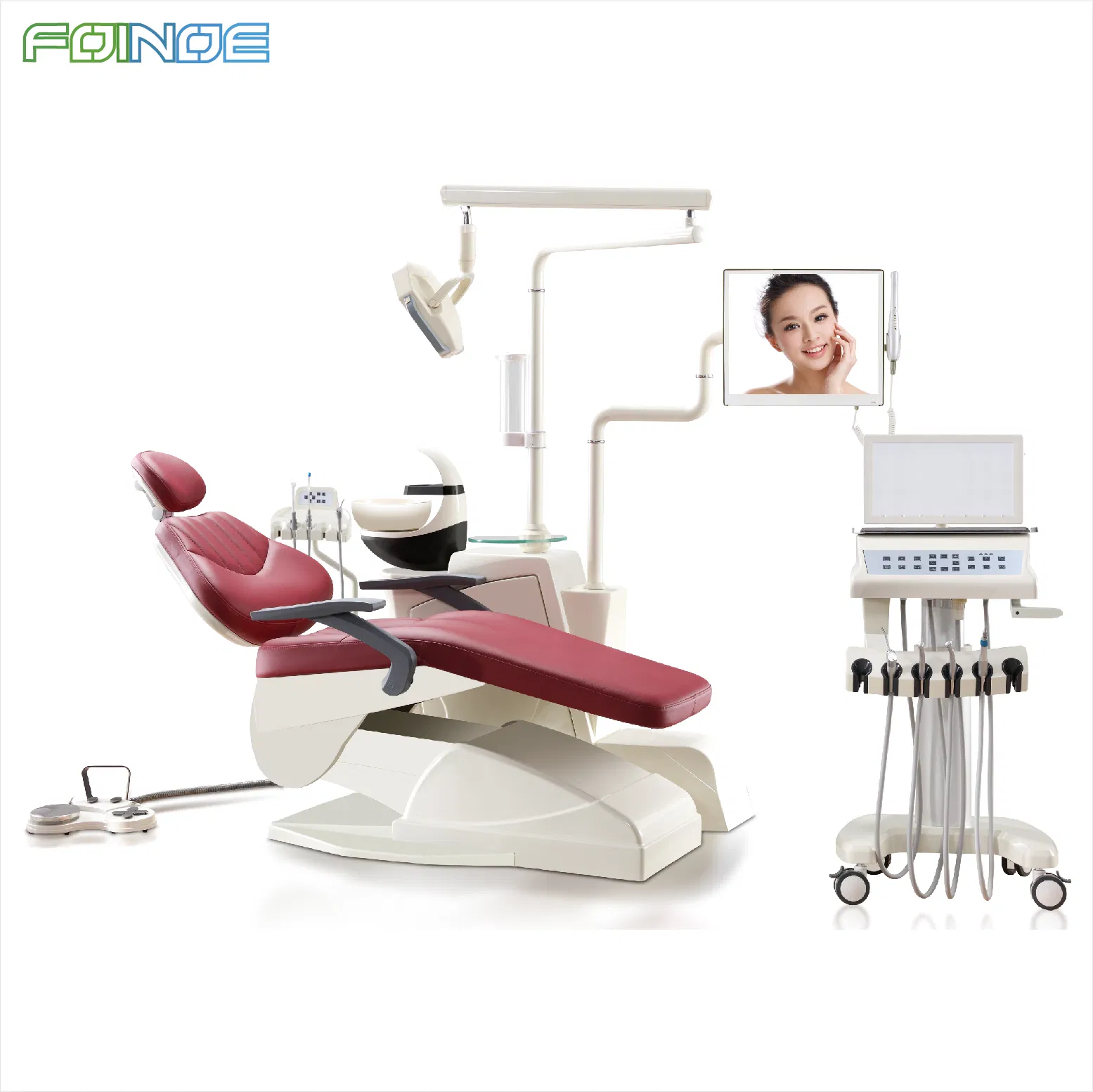

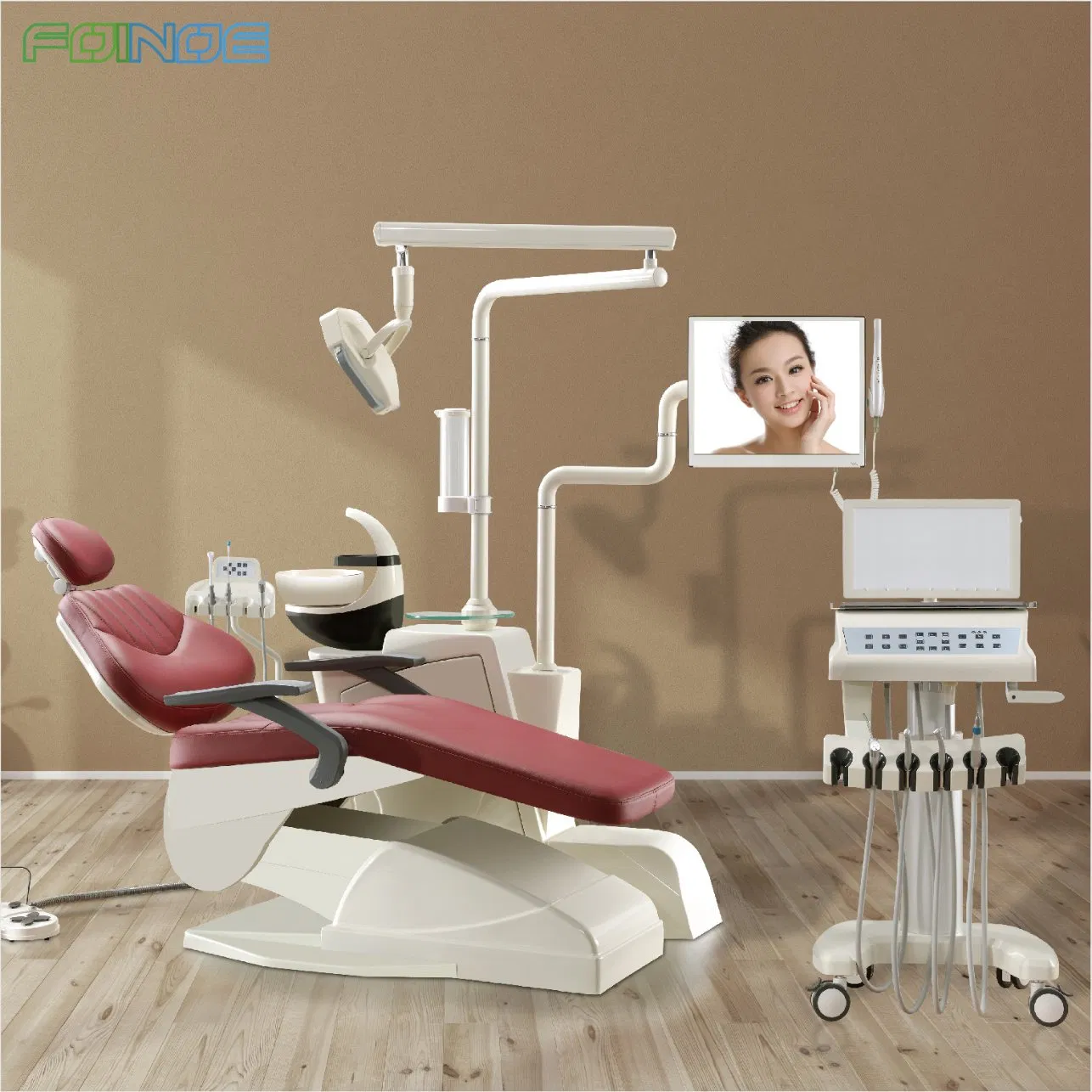

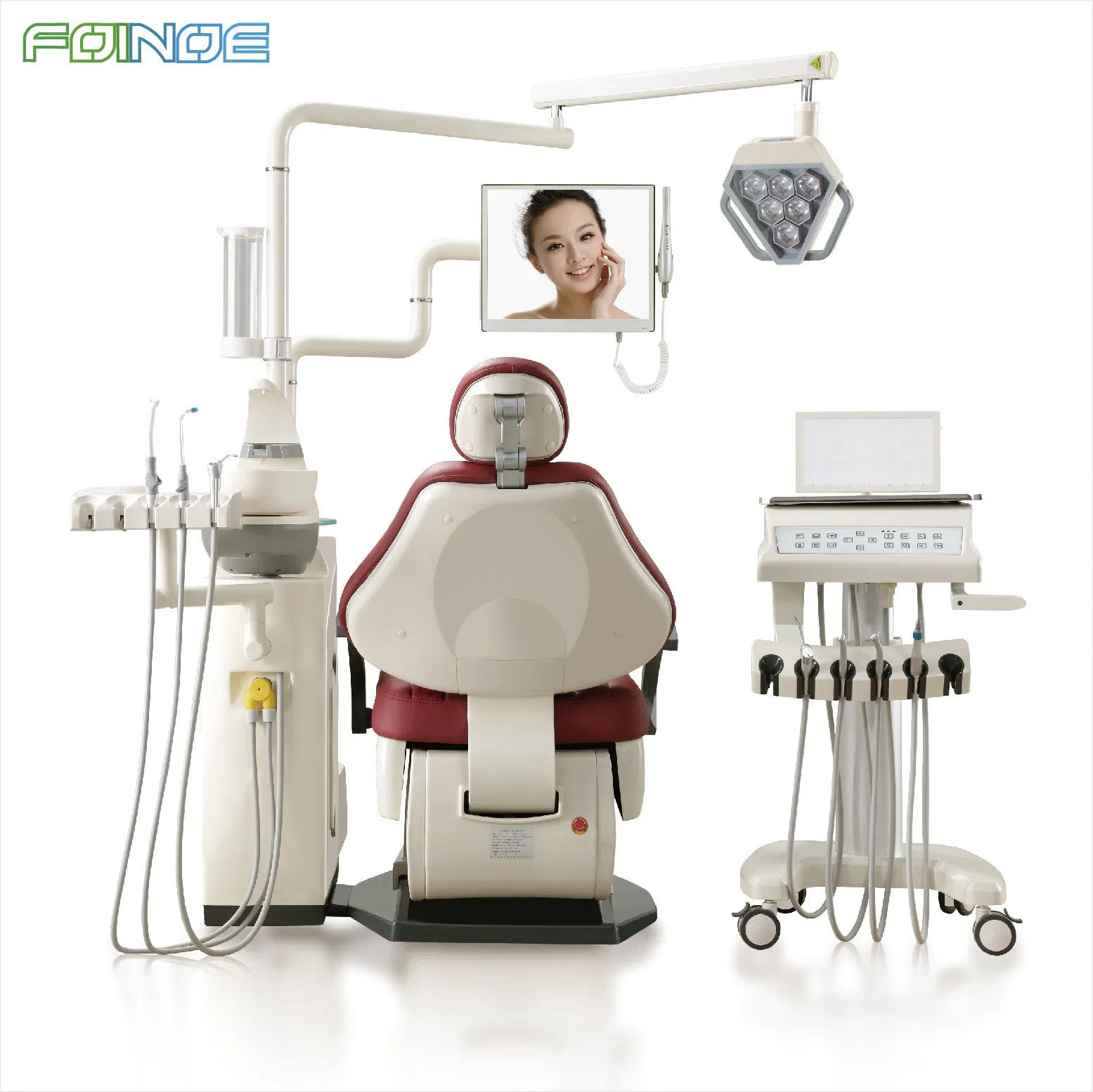

FN-DU4 Popular Dental Chair Unit for Dental Clinic
✨ Key Features:
| Parameter | Details |
|---|---|
| Power Voltage | AC220V-230V, 50Hz |
| Water Pressure | 0.20-40Mpa / 2.0-4.0 bar |
| Air Pressure | 0.55-0.80Mpa / 5.5-8.0 bar |
| Output (Water Vacuum) | ≥55L/min |
| Output (Air Vacuum) | ≥120L/min |
| Chair Part | |
| Leather cushion | 1 set |
| Casting silicon base | 1 set |
| Com-pensive position design | 1 set |
| Operation System | |

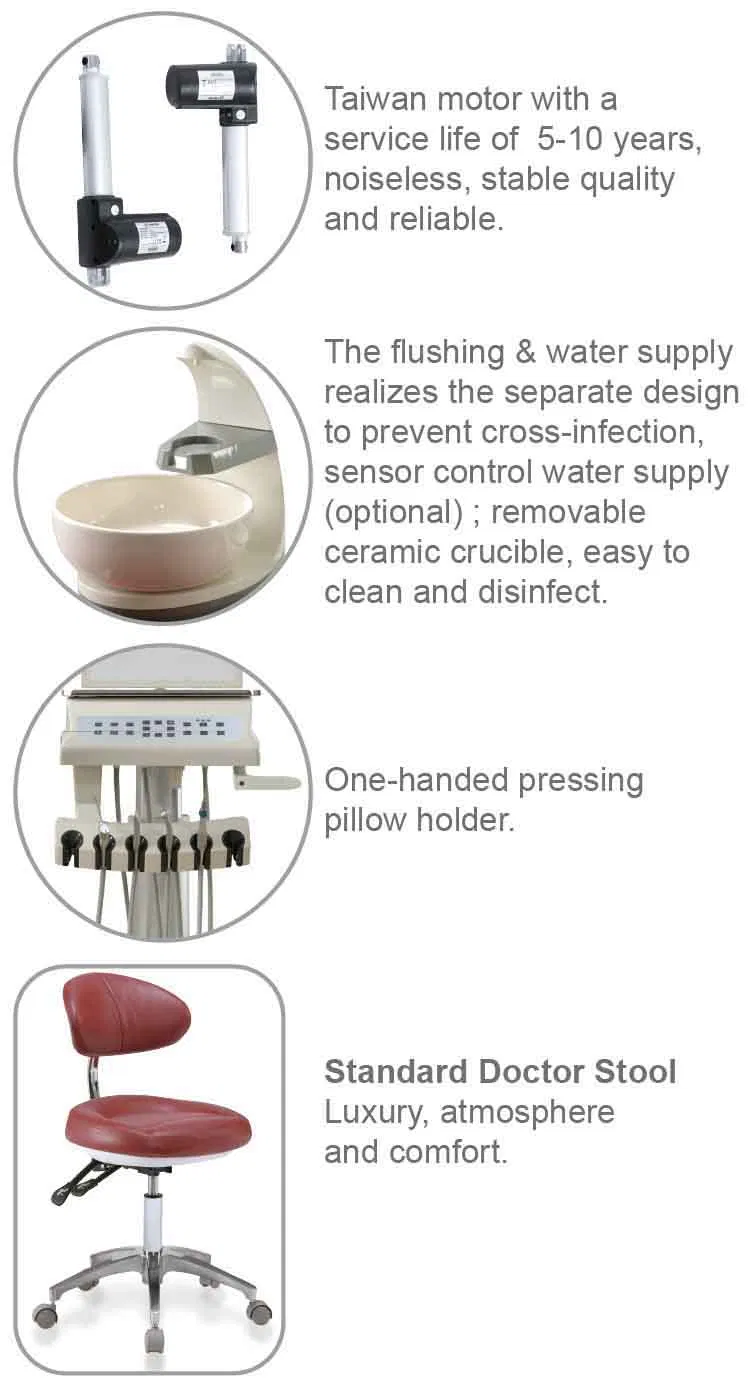

| 24V Taiwan Silent DC Motor | 1 set |
| 9 memories programs | 1 set |
| Italy imported solenoid valve | 1 set |
| Air lock system | 1 set |
| Master Control System | |
| Down mounted instrument | 1 set |
| Touch control system | 1 set |
| 6 hand piece holder | 1 set |
| 3 way syringe (Cold, Warm) | 2 pieces |
| 12V LED panoramic film viewer | 1 set |
| Electric Box & Water System | |
| Ceramic cuspidor | 1 set |
| Pure water supply system | 1 set |
| 24V heater | 1 set |
| Rotation cabinet box | 1 set |
| Package Information | |
| Volume | 1320*1070*1100mm |
| Gross weight | 266 kg |
| Net weight | 201 kg |

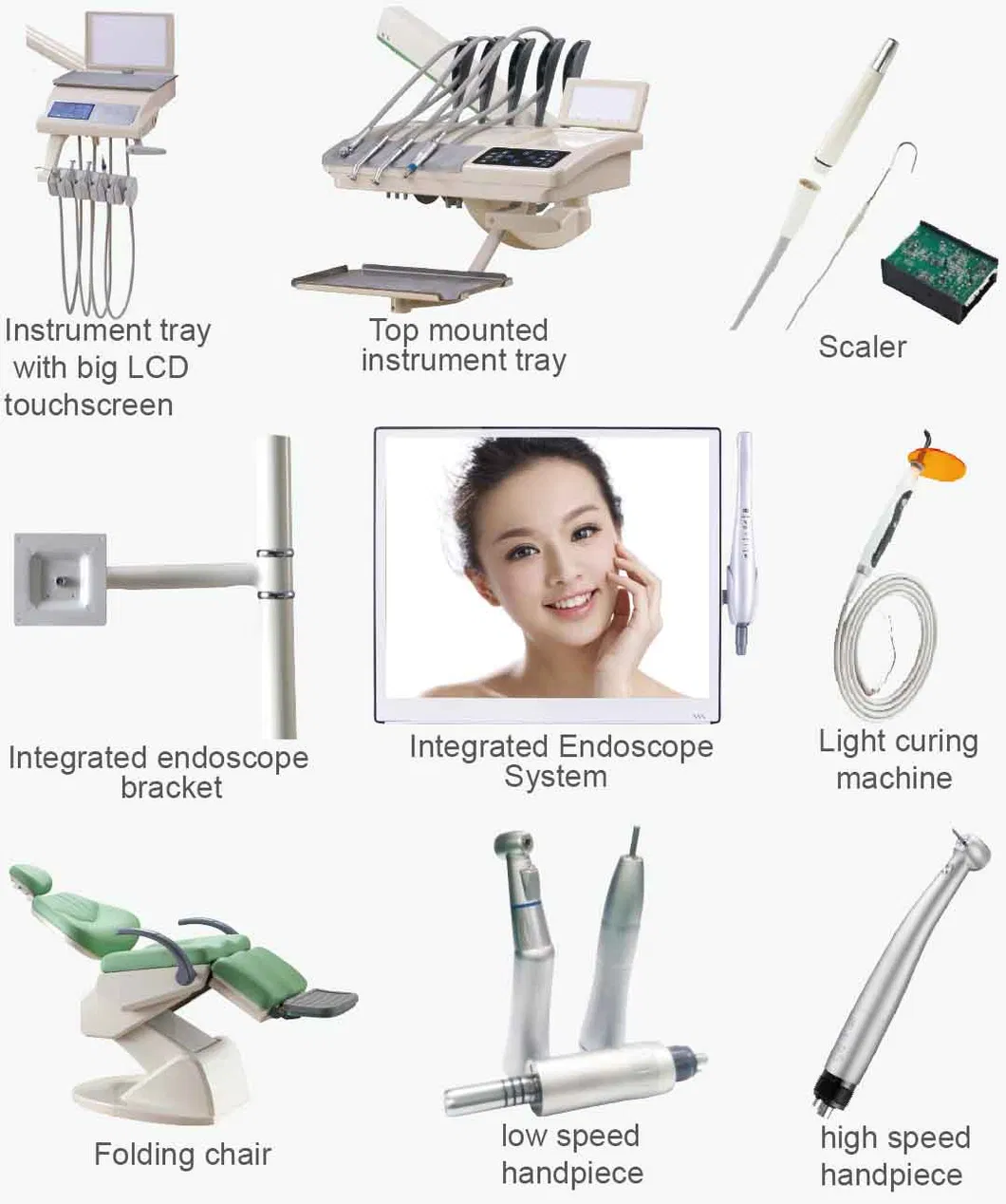

Cart version options available to meet the needs of different dentists.
Available Upholstery Colors:

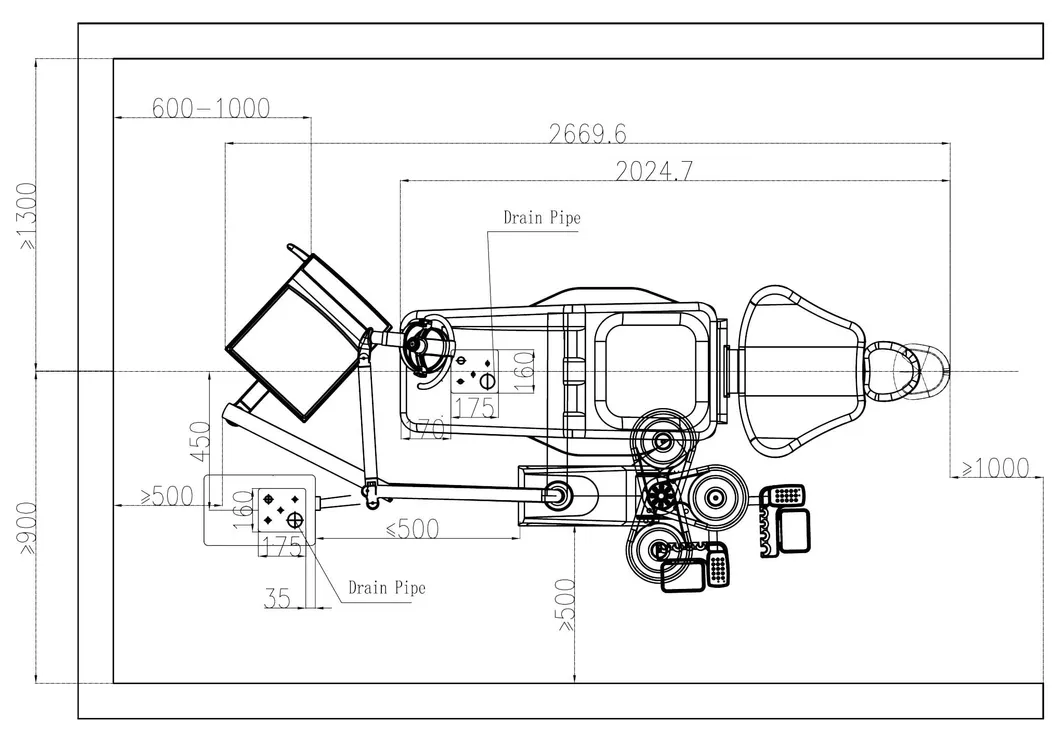

1. Water supply: PPR Fusion Tube, reserved 4 points copper internal tooth interface.
2. Air supply: PPR Fusion Tube, reserved 4 points copper internal tooth interface.
3. Drainage: White PVC drain pipe, main 17mm, branch φ50mm.
4. Negative pressure: Blue UPVC water supply pipe, outer φ50mm, branch φ32mm.
5. Power: White PVC threading tube, 4 points (φ 20mm) sleeve 3*1.5mm² line.
